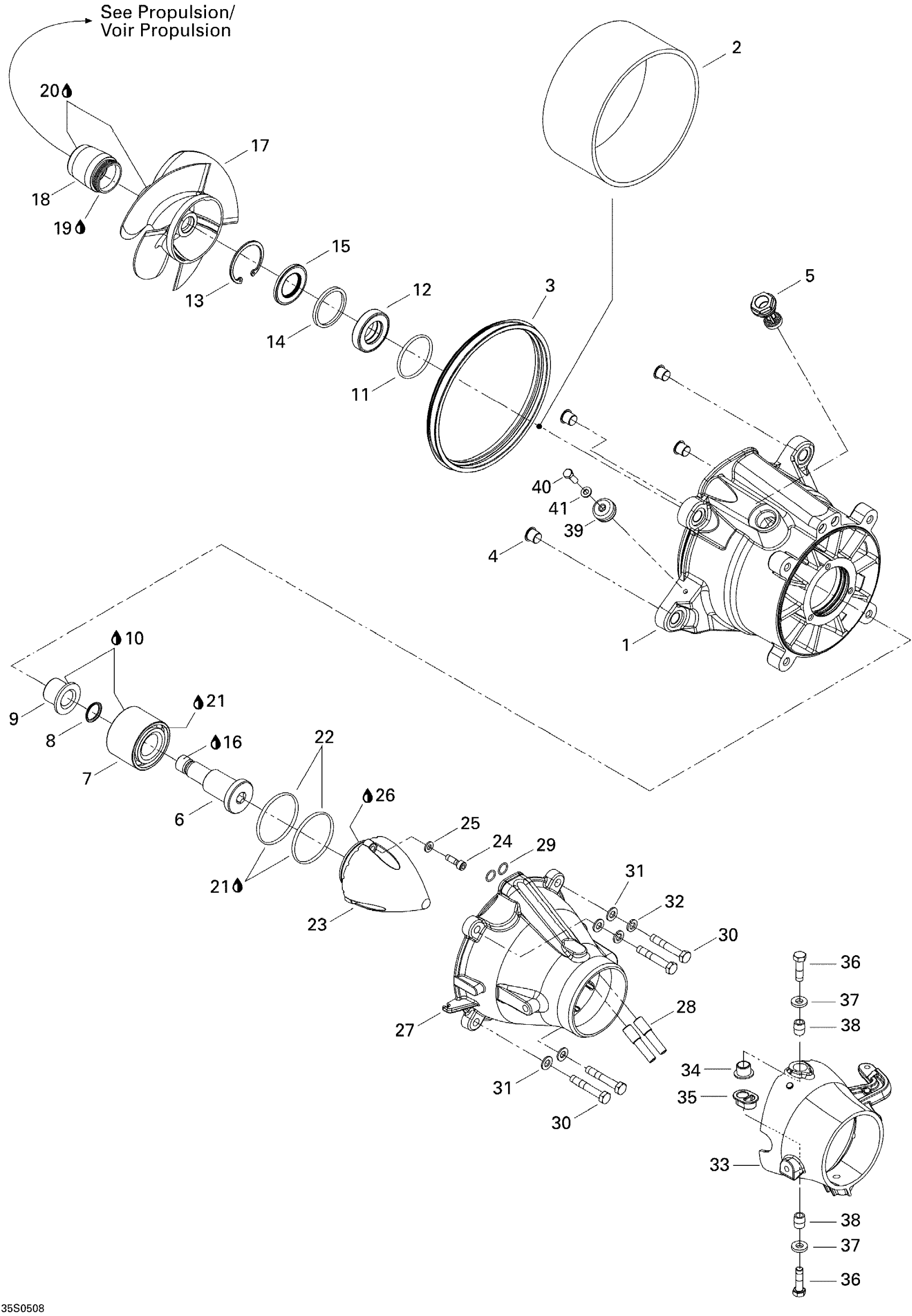

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Pump Diagram

#

Description
Price

1

Impeller Housing

267000084

Unavailable

2

Wear Ring

267000372

$84.99

3

Neoprene Seal

293200087

$12.63

4

Bushing

267000093

$9.59

5

Plug | Includes 370z to 370z1

267000282

$19.49

6

Impeller Shaft

267000054

$116.49

7

Angled Bearing This part replaces 267000030.

267000900

$80.99

8

O-Ring

505070315

$2.85

9

Shaft Sleeve

267000318

$134.99

10

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

11

O-Ring

293300090

$7.20

12

Seal

271002071

$33.99

13

Circlip

293370038

$8.79

14

Spacer

271001393

$8.59

15

Oil Seal

293200089

$19.99

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

Impeller Ass'y This part replaces 267000250.

267000699

$391.99

18

Guard

271002228

$12.99

19

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

20

Synthetic Grease, 400 G

293550010

Unavailable

21

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

22

O-Ring

293300086

$3.59

23

Impeller Cover

267000262

$21.99

24

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

25

Stainless Flat Washer M6

234061600

$0.33

26

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

27

VENTURI, BLACK - Call your local BRP dealership

267000065

Unavailable

28

Siphon Tube

271001133

$10.99

29

O-Ring

293300013

$8.18

30

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

207384060

Unavailable

31

Stainless, Flat Washer 8 mm

234081600

$0.55

32

Lock Washer 8 mm, Stainless

234181601

$0.55

33

STEERING NOZZLE, BLACK - Call your local BRP dealership

267000191

Unavailable

34

Venturi Bushing

293900001

$7.62

35

Plastic Bushing

293900010

$9.59

36

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

37

Flat Washer M8.5 x 18

293050001

$3.07

38

Sleeve

271001816

$14.99

39

Anode Zinc

271001813

$18.99

40

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

41

Stainless Flat Washer M6

234061600

$0.33
