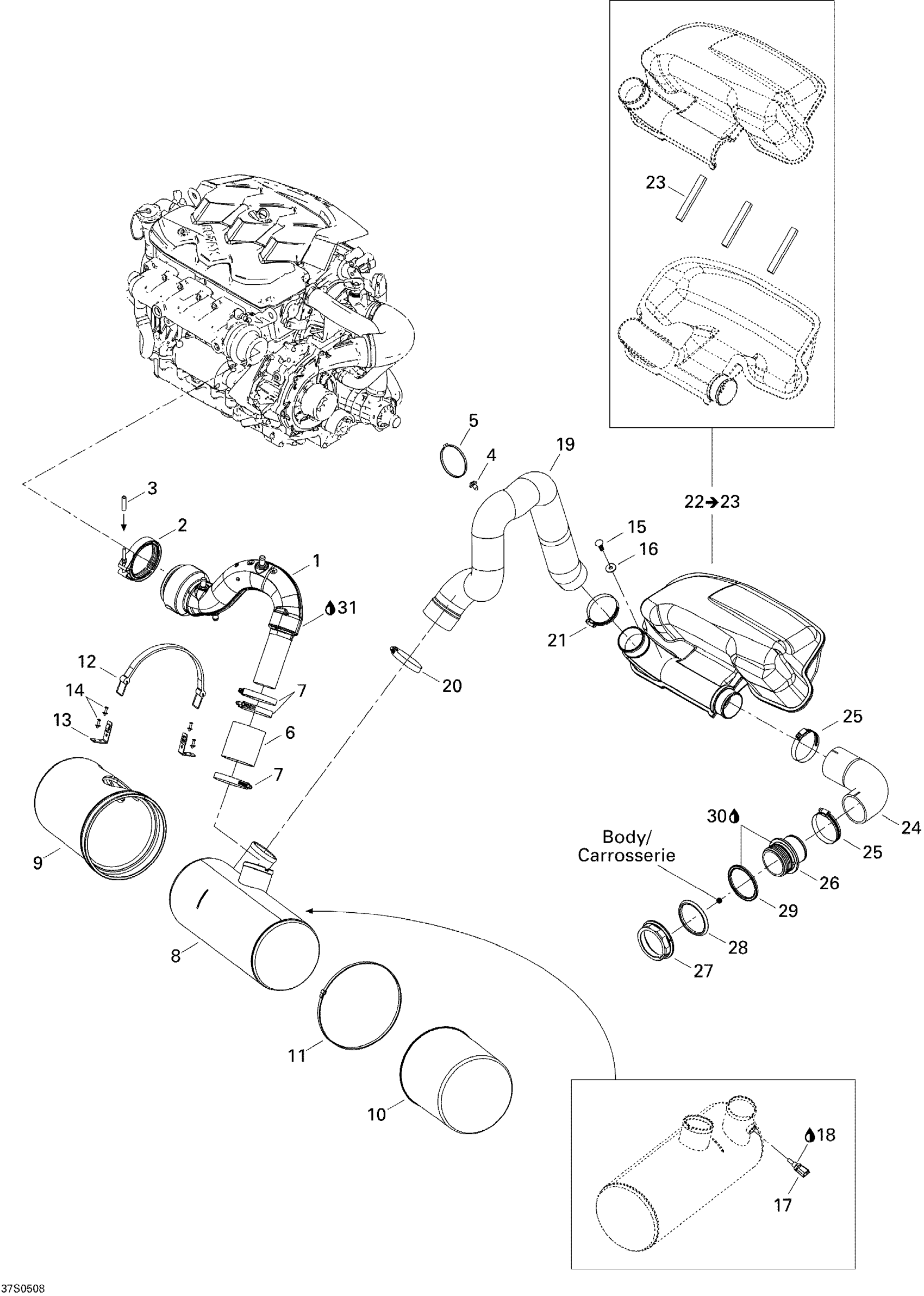

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Exhaust System Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

3

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

Mount Dart

293730040

$1.04

5

Tie Wrap 368 mm

293750008

$1.04

6

Exhaust Hose

274001302

$35.99

7

Tridon Clamp

293650179

$11.49

8

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

9

Front Muffler Cover

274001008

Unavailable

10

REAR MUFFLER COVER - Call your local BRP dealership

274000984

Unavailable

11

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

12

Fuel Tank Strap

293850036

$18.99

13

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

14

Avdel Rivet 3/16"

293150037

$0.56

15

Dart, Black

293730004

Unavailable

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Temperature Sensor

278002895

$39.99

18

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

19

Front Exhaust Hose This part replaces 274001424.

274001708

$89.99

20

Tridon Clamp

293650179

$11.49

21

Tridon Clamp

293650064

$8.29

22

Resonator

274001366

$169.49

23

Neoprene Seal (1PAC=3M)

219704364

$27.49

24

REAR EXHAUST HOSE - Call your local BRP dealership

274001428

Unavailable

25

Tridon Clamp

293650064

$8.29

26

Exhaust Hose, Outlet

274001391

$29.49

27

Nut 72 mm

274000224

$16.34

28

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

29

GASKET - Call your local BRP dealership

293250041

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
