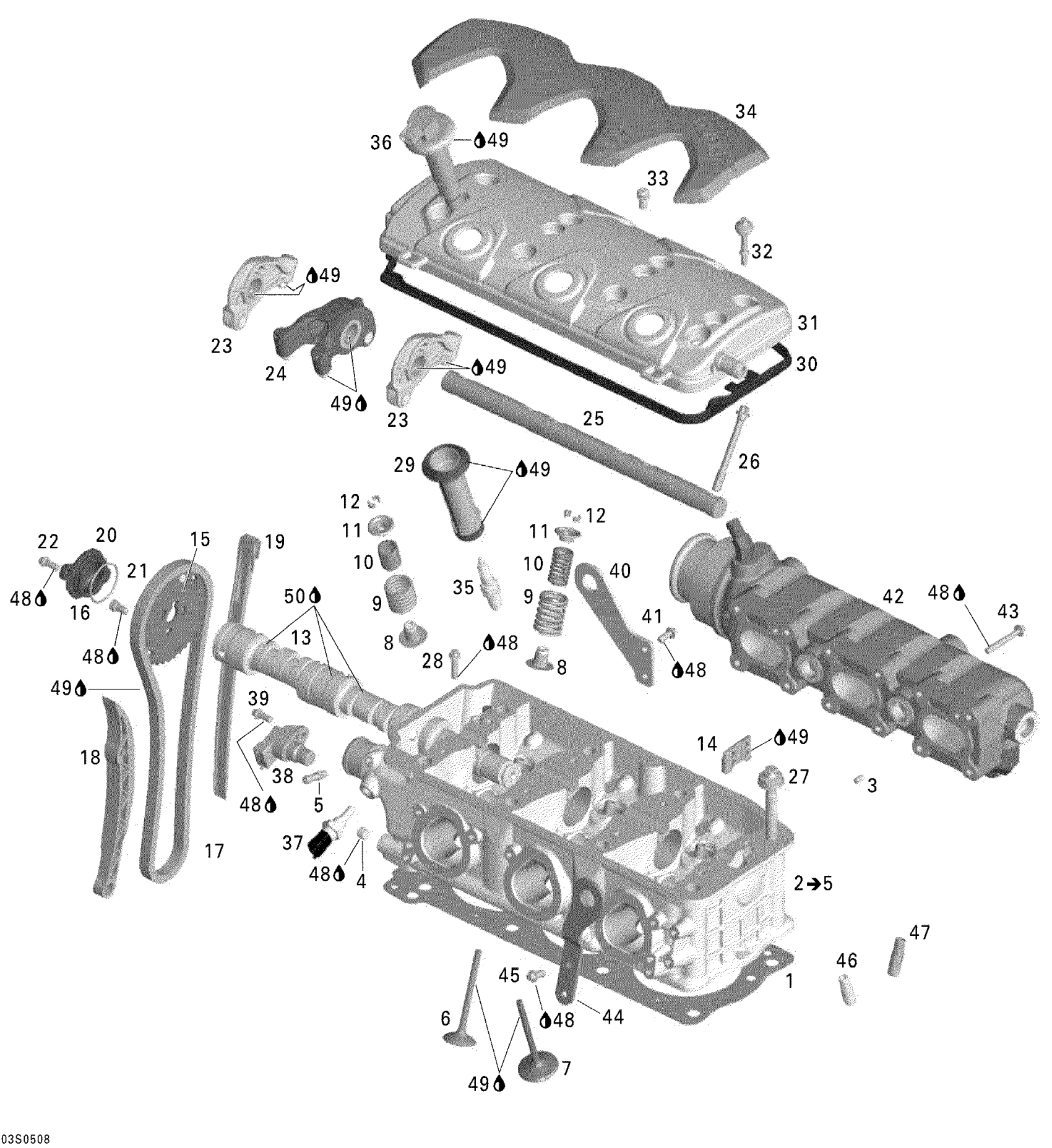

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$121.99

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$776.99

2

REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership

421000644

Unavailable

3

Drive Pin 5 X 10

420929650

$1.68

4

Plug Screw M10 X 1

420641323

$14.28

5

Hose Nipple

420924724

$14.83

6

EXHAUST VALVE, 31 MM - Call your local BRP dealership | 6 Valves per package. Always replace complete valve set.

295501047

Unavailable

7

Intake Valve 38MM

420253163

$41.49

8

Valve Steam Seal

420630202

$7.90

9

Valve Spring

420238180

$15.89

10

Valve Spring Inside

420838280

$12.72

11

Valve Spring Retainer

420254283

$8.57

12

Valve Cotter

420253645

$7.41

13

Camshaft

420837629

Unavailable

14

Camshaft Guide

420851694

$31.99

15

Timing Gear, 38 Teeth

420254309

$69.99

16

Allen Screw M6 X 12

420840032

$4.44

17

Camshaft Chain

420898042

$97.49

18

Chain Tension Guide

420236541

$15.89

19

Chain Guide

420236501

$14.28

20

CAMSHAFT COVER - Call your local BRP dealership

420660100

Unavailable

21

O-Ring

420950870

$5.39

22

Torx Flange Screw M6 X 16

420641048

$2.96

23

Rocker Arm, Exhaust

420254329

$137.49

24

Rocker Arm, Inner

420254316

$179.99

25

Rocker Arm Shaft

420854592

Unavailable

26

Torx Screw M8 X 72

420641080

$5.29

27

Torx Flange Screw M11 X 147

420641110

$11.58

28

Torx Flange Screw M6 X 25

420641238

$3.27

29

Spark Plug Pipe

420851754

$27.49

30

Valve Cover Gasket | Included in gasket kit

420950820

$32.99

31

VALVE COVER - Call your local BRP dealership

420811581

Unavailable

32

Allen Screw M6 x 30,5

420440561

$4.44

33

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

34

Valve Cover

420660167

$58.49

35

Spark Plug, NGK DCP-R8E

715900637

$6.35

36

Ignition Coil Kit This part replaces 420664020.

296000307

$104.99

37

Temperature Sensor

278002895

$39.99

38

Camshaft Position Sensor Ass'y

420664046

$88.99

39

Torx Flange Screw M6 X 16

420641048

$2.96

40

Transport Bracket PTO

420851618

$27.49

41

Torx Flange Screw M6 X 16

420641048

$2.96

42

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

43

Torx Flange Screw M6 X 45

420641198

$4.12

44

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

45

Torx Flange Screw M6 X 16

420641048

$2.96

46

Valve Guide | Inner diameter machined

420253929

$46.49

47

Valve Guide | Inner diameter machined

420253929

$46.49

48

Loctite 243, 10 ml

293800060

$21.49

49

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

50

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
