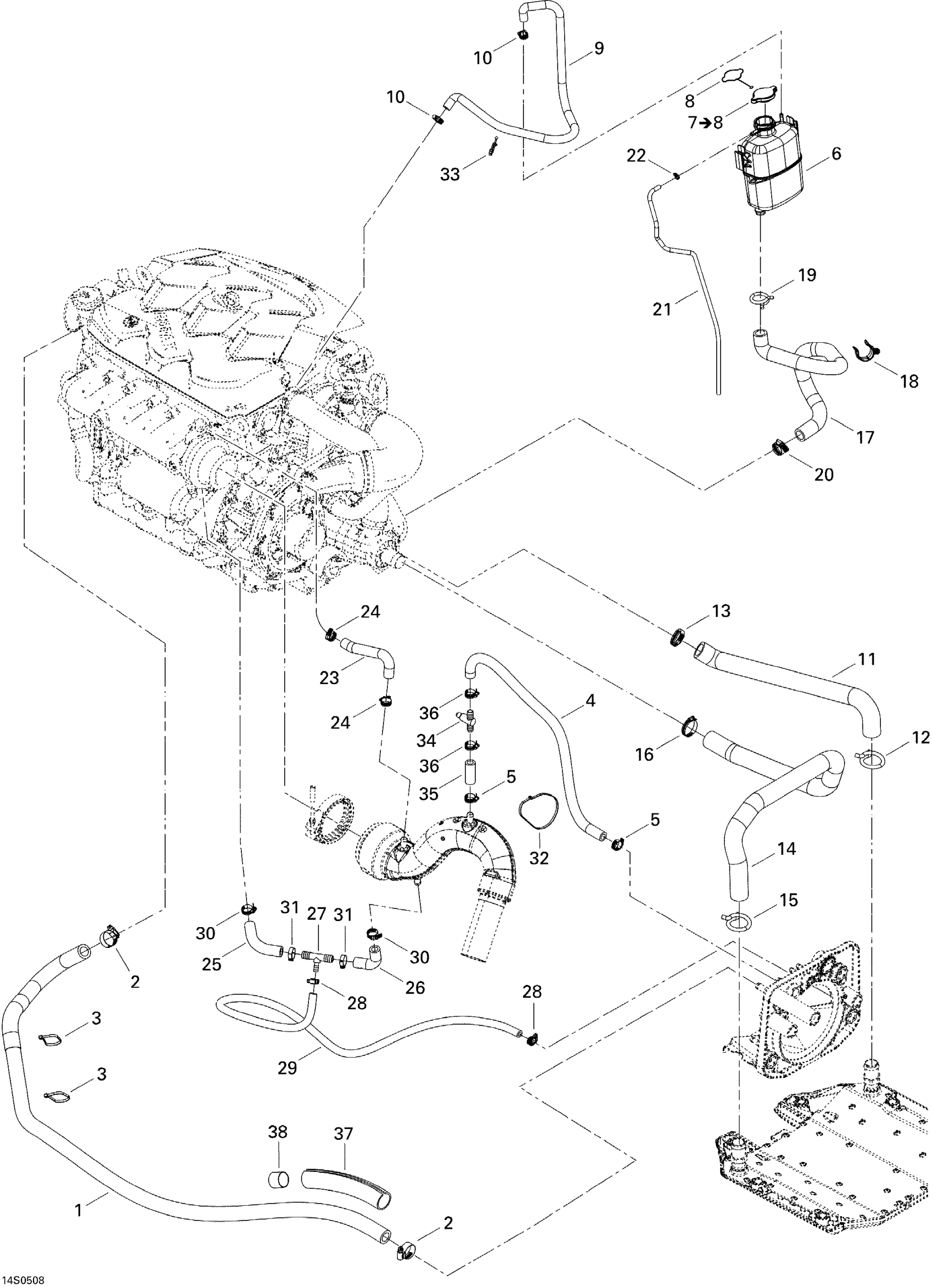

Sea-doo GTX 4-TEC, LTD SCIC, 2005 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000138

Unavailable

2

Tridon Gear Clamp

293650051

$4.19

3

Tie-Rap 180 mm

414115200

$0.11

4

Was 276000001 Hose 12.5 mm

219704394

$51.99

5

Tridon Gear Clamp

293650172

$3.09

6

Coolant Tank

276000086

$109.99

7

Pressure Cap | Includes 720 to 720a

276000100

$25.99

8

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

9

Hose

276000102

Unavailable

10

Tridon Gear Clamp

293650170

$1.99

11

RH Radiator Hose

276000248

$58.99

12

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

13

Tridon Gear Clamp

293650045

$5.69

14

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

15

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

16

Tridon Gear Clamp

293650045

$5.69

17

Formed Return Hose

276000115

Unavailable

18

Retainer

275500526

$4.55

19

Spring Clamp

293650115

$3.09

20

Tridon Gear Clamp

293650019

$5.82

21

Polyurethane Hose 10000Mm Long

219704410

$56.99

22

Tie Wrap 94 mm | 4X4

293750001

$1.03

23

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

24

Tridon Gear Clamp

293650172

$3.09

25

LOWER FORMED HOSE - Call your local BRP dealership

276000136

Unavailable

26

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

27

T-Fitting

293710116

$17.62

28

Tridon Gear Clamp

293650171

$3.09

29

Hose 8 mm

509000093

Unavailable

30

Tridon Gear Clamp

293650172

$3.09

31

Oetiker Clamp

293650012

$7.49

32

Tie Wrap 368 mm

293750008

$1.04

33

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable

34

T-FITTING - Call your local BRP dealership

295000103

Unavailable

35

Was 276000001 Hose 12.5 mm

219704394

$51.99

36

Tridon Gear Clamp

293650172

$3.09

37

Tubing 25 MM 1000MM Long

219704402

$15.99

38

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable
