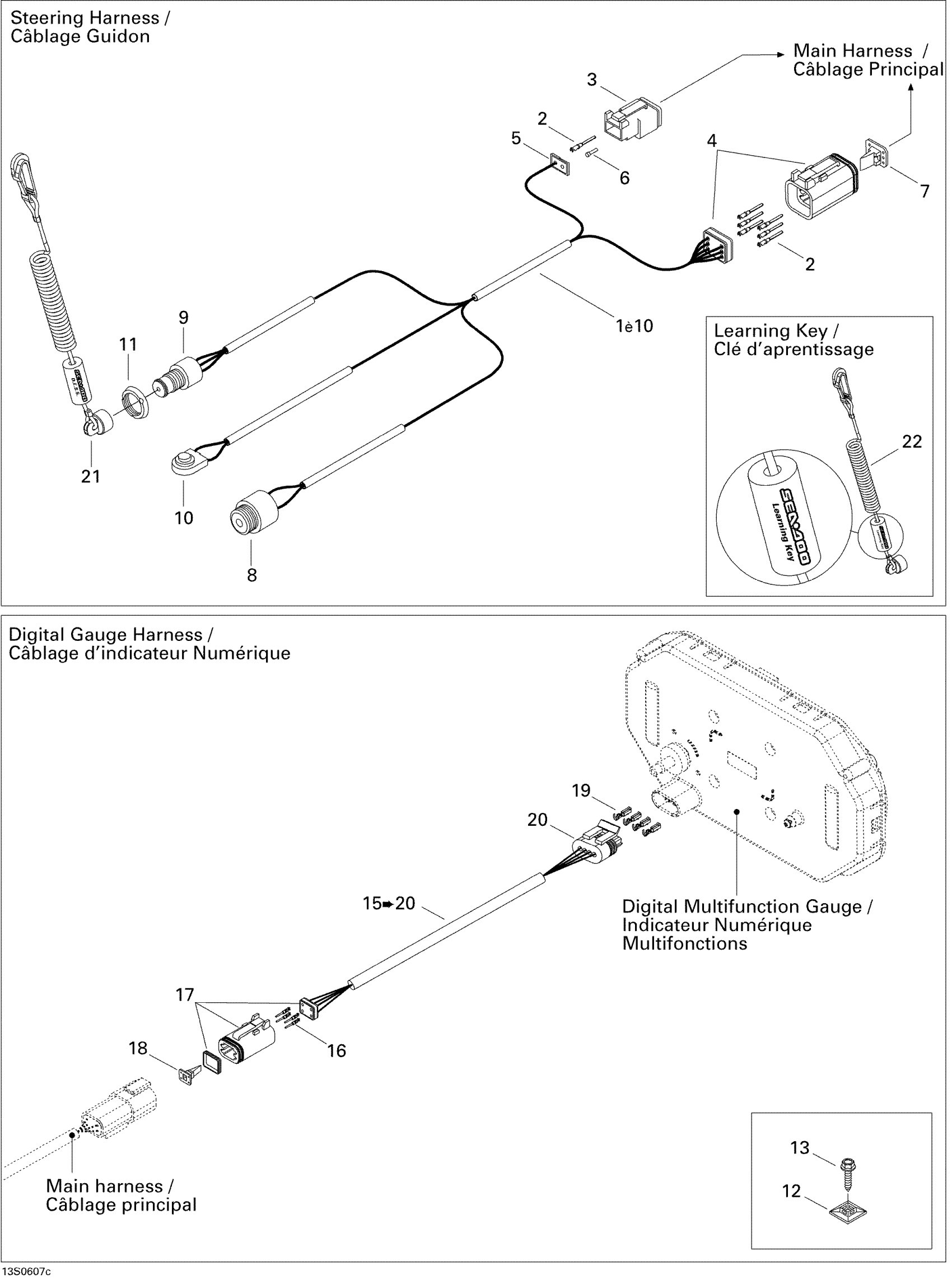

Sea-doo GTX 4-TEC LTD, 2006 Electrical Harness Diagram

#

Description
Price

1

Steering Harness Ass’y | Includes 2 to 11

278002112

Unavailable

2

Female Terminal

278000632

$2.09

3

Female Connector, 2 Circuits

409207300

$9.85

4

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

Sealing Cap

293000052

$3.19

7

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

8

BUZZER - Call your local BRP dealership

278001586

Unavailable

9

Safety Switch This part replaces 278002325.

278002773

$114.99

10

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

11

Safety Nut (DESS Switch)

278002963

$3.28

12

Tie Rap Mount

293750026

$3.09

13

Hex. Flange Screw K40 X 13

241141360

$0.67

14

Not Available As Spare Parts

XXX

Unavailable

15

Digital Multifunction Gauge Harness | Includes 16 to 21

278002111

$49.99

16

Female Terminal

278000632

$2.09

17

Male Connector, 4 Circuits | CE

278000739

$19.49

18

Male Lock, 4 Circuits | CE

278000738

$3.09

19

Female Terminal

278001114

$3.19

20

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

21

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

22

Safety Lanyard, Learning Key

278002203

$56.99
