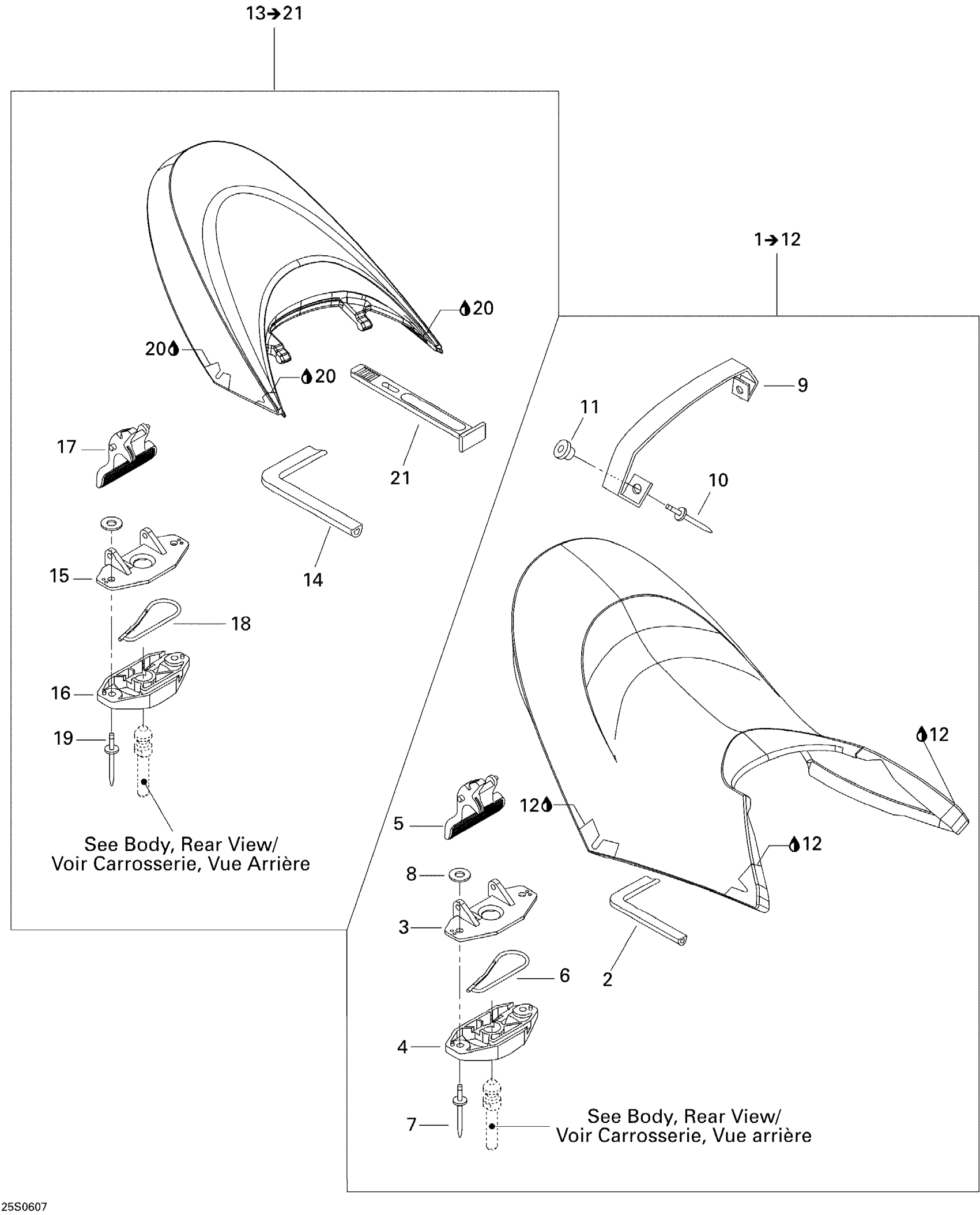

Sea-doo GTX 4-TEC LTD, 2006 Seat Diagram

#

Description
Price

1

Front Seat Ass'y, Slate Grey | Includes 1 to 12, Black Perle

269001180

Unavailable

1

Seat Ass'y | Includes 1 to 12, Starlight Blue

269001326

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

8

Stainless Flat Washer M6

234061600

$0.33

9

SEAT STRAP, SLATE GREY - Call your local BRP dealership | Black Perle

269001183

Unavailable

9

Seat Strap | Starlight Blue

269001328

Unavailable

10

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

10

Rivet | Model-T3

293150067

$2.89

11

Grommet

293720067

$12.99

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

13

Rear Seat Ass'y, Slate Grey | Includes 13 to 21, Black Perle

269001181

Unavailable

13

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 13 to 21, Starlight Blue

269001347

Unavailable

14

Was 293200062 Seal

219704366

$76.49

15

Latch Ass'y

269700109

$24.99

16

Latch Ass'y

269700109

$24.99

17

Latch Ass'y

269700109

$24.99

18

Latch Spring

269700017

$9.19

19

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

20

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

21

Strap

269502417

$17.69
