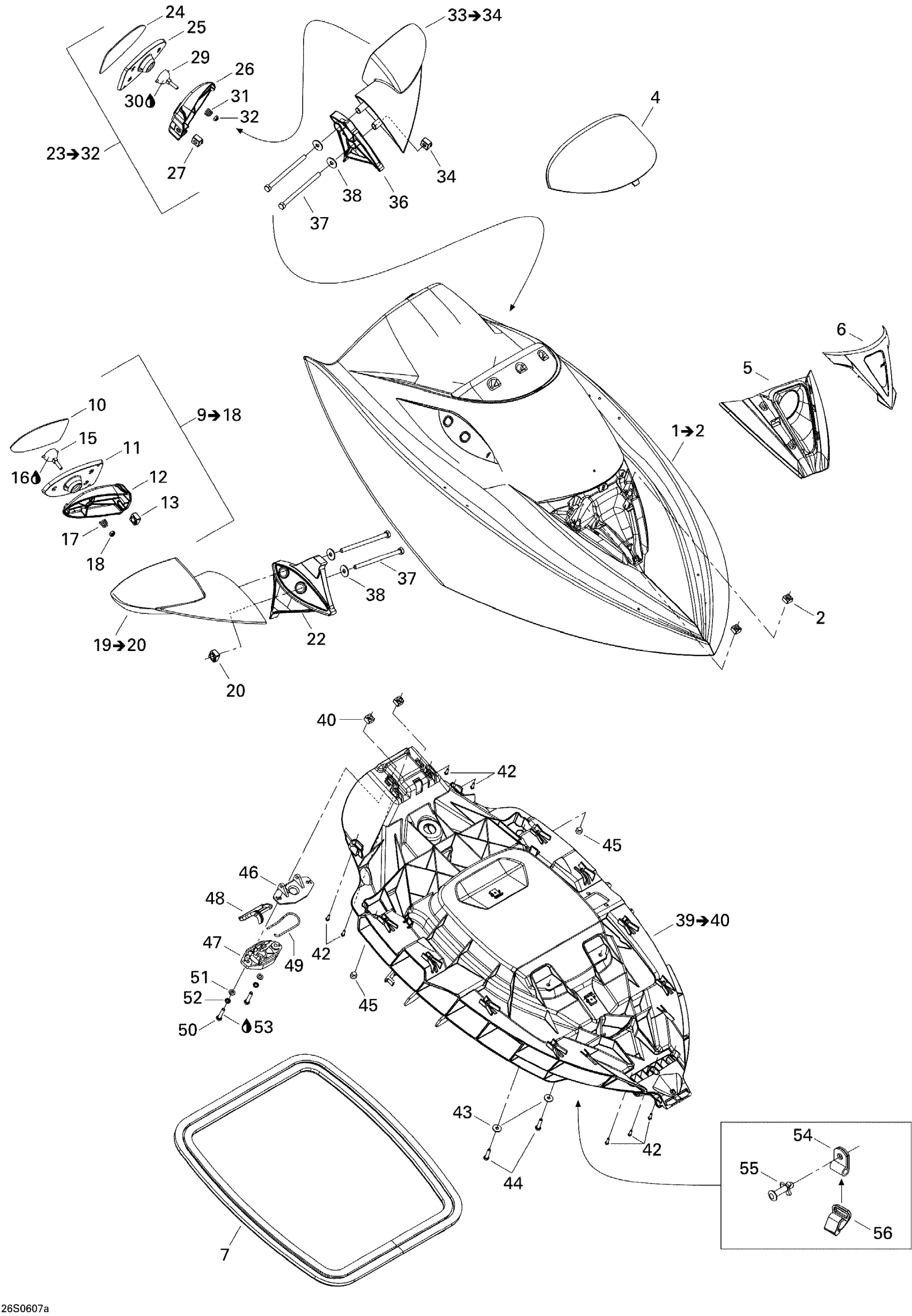

Sea-doo GTX 4-TEC LTD, 2006 Front Storage Compartment 1 Diagram

#

Description
Price

1

UPPER LUGAGE COVER - Call your local BRP dealership | Includes 1 to 2, Starlight Blue

269501453

Unavailable

1

Upper Lugage Cover | Includes 1 to 2, Black Perle

269501525

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

4

Deflector, Smoke

269501485

Unavailable

5

Lower Grille

269501520

Unavailable

6

Upper Grille

269500942

Unavailable

7

Was 293200017 Neoprene Seal

219704365

$149.99

9

RH Mirror

269501328

Unavailable

9

RH Mirror

269501328

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Mirror Frame

269501330

Unavailable

12

Housing Support

269501331

Unavailable

13

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

15

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Mirror Spring

269501334

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

RH Mirror Shell, Black Pearl | Includes 19 to 20, Black Perle

269501325

Unavailable

19

RH MIRROR SHEEL - Call your local BRP dealership | Includes 19 to 20, Starlight Blue

269501454

Unavailable

20

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

22

RH Spacer

269500950

Unavailable

23

LH Mirror Ass'y | GTI SE, Includes 12 to 20

269501337

Unavailable

23

LH Mirror Ass'y | GTI SE, Includes 12 to 20

269501337

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Mirror Frame

269501330

Unavailable

26

Housing Support

269501331

Unavailable

27

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

29

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

30

Synthetic Grease, 400 G

293550010

Unavailable

31

Mirror Spring

269501334

Unavailable

32

Hex. Elastic Stop Nut M6

232561600

$1.15

33

LH Mirror Shell, Black Pearl | Includes 33 to 34, Black Perle

269501343

Unavailable

33

LH Mirror Shell | Includes 33 to 34, Starlight Blue

269501457

Unavailable

34

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

36

LH Spacer

269500951

Unavailable

37

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

38

Flat Washer 8 mm, Stainless

234082600

$2.43

39

Lower Storage Cover Ass'y | Includes 39 to 40

269501415

Unavailable

40

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

42

Hex. Flange Screw K40 X 13

241141360

$0.67

43

Flat Washer M6, Stainless

234062600

$0.77

44

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

45

Rubber Bumper

293830005

$8.09

46

Latch Ass'y

269700109

$24.99

47

Latch Ass'y

269700109

$24.99

48

Latch Ass'y

269700109

$24.99

49

Latch Spring

269700017

$9.19

50

Hex. Screw M6 X 30

207063060

$1.89

51

Stainless Flat Washer M6

234061600

$0.33

52

Lock Washer Helical M6

234161601

$1.15

53

Loctite 243, 10 ml

293800060

$21.49

54

Cable Clamp

293750029

Unavailable

55

Pop Rivet 3/16"

293150080

Unavailable

56

HOOK - Call your local BRP dealership

293750030

Unavailable
