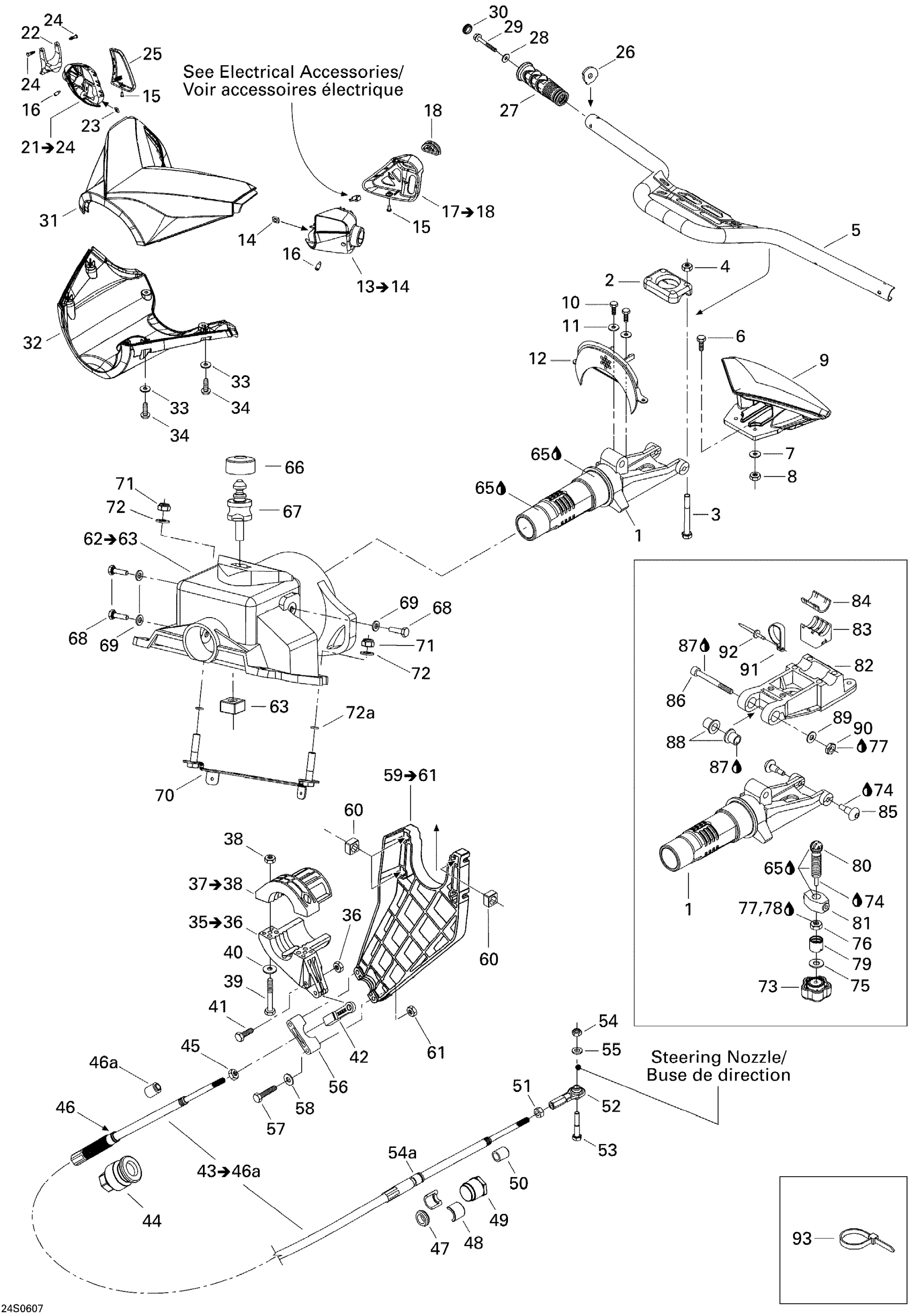

Sea-doo GTX 4-TEC LTD, 2006 Steering System Diagram

#

Description
Price

1

Steering Stem

277000758400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

4

Hex. Elastic Nut M8 Brass

232581200

$1.48

5

Handlebar

277001460

Unavailable

6

Hex. Screw M6 X 30

207063060

$1.73

7

Stainless Flat Washer M6

234061600

$0.28

8

Elastic Stop Nut M6, Brass

232561200

$4.03

9

HANDLE PAD, METALLIC SILVER - Call your local BRP dealership | Black Perle

277001361

Unavailable

9

Handle Pad | Starlight Blue

277001436

Unavailable

10

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

11

Flat Washer M6, Stainless

234062600

$0.73

12

Plate, Black

277000766

Unavailable

13

HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9

277001481

Unavailable

14

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

15

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

16

Socket Head Screw M6 X 16

250000036

Unavailable

17

HOUSING COVER - Call your local BRP dealership | Includes 13 to 14

277001447

Unavailable

18

Stop Knob

278001713

$14.90

21

THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19

277001483

Unavailable

22

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

23

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

24

PIN - Call your local BRP dealership

277000381

Unavailable

25

HOUSING COVER - Call your local BRP dealership

277001355

Unavailable

26

Insert Grip Handle

277001863

$8.83

27

Handle Grip, Slate Grey

277001336

$17.88

28

Flat Washer M6, Stainless

234062600

$0.73

29

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

30

Black, Cap

277000203

$8.58

31

Upper Steering Cover, Slate Grey

277001337

Unavailable

32

Lower Steering Cover, Slate Grey

277001338

Unavailable

33

Flat Washer M5, Stainless

234051600

$0.73

34

Hex. Flange Screw K40 X 16

241141660

$1.43

35

STEERING STEM ARM - Call your local BRP dealership | Includes 33 to 34

277001472

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

$1.06

37

Arm Thrust

277001473

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

$1.06

39

Hex. Screw M6 X 25

207162560

$1.40

40

Flat Washer M6, Stainless

234062600

$0.73

41

Hex. Screw M6 X 30

211000081

$3.21

42

Ball Joint

277001180

$32.06

43

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$194.75

44

Ajustment Knob

277000782

$18.63

45

Hex. Nut 1/4"-28

211100056

$0.64

46

Wiper Rod

277001582

$10.13

46a

End Piece

277001583

$12.79

47

Rubber Washer

293830063

$1.73

48

Half Ring

277001527

$9.58

49

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

50

Wiper Rod

277001582

$10.13

51

Hex. Nut 1/4"-28

211100056

$0.64

52

Ball Joint

277000775

$46.24

53

Hex. Screw M6 X 35

207063560

$2.12

54

Elastic Stop Nut M6, Brass

232561200

$4.03

54a

End Piece

277001583

$12.79

55

Stainless Flat Washer M6

234061600

$0.28

56

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

57

Hex. Screw M6 X 50

207065060

$2.12

58

Stainless Flat Washer M6

234061600

$0.28

59

CABLE SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001470

Unavailable

60

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

61

Hex. Elastic Stop Nut M6

232561600

$1.06

62

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

63

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

65

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

66

RUBBER PAD - Call your local BRP dealership

293830078

Unavailable

67

Latch Stud

291002147

Unavailable

68

Hex. Forming Screw M6 X 20

207162060

$1.18

69

Stainless Flat Washer M6

234061600

$0.28

70

STEERING SUPPORT - Call your local BRP dealership

277001072

Unavailable

71

Hex. Elastic Nut M8 Brass

232581200

$1.48

72

Stainless, Flat Washer 8 mm

234081600

$0.52

72a

O-Ring

293300123

$0.97

73

ADJUSTER HANDLE - Call your local BRP dealership

277000764

Unavailable

74

Loctite 243, 10 ml

293800060

$21.49

75

Flat Washer 8 mm, Stainless

234082600

$2.27

76

Hex. Jam Nut M8

232180600

$0.64

77

Loctite 271, 10 ml

293800005

$23.85

78

Was 293800041 Loctite Primer 7649

219704458

$41.99

79

Stopper Bushing

277000786

Unavailable

80

ADJUSTER SCREW - Call your local BRP dealership

211000145

Unavailable

81

BLOCK - Call your local BRP dealership

277000761

Unavailable

82

Steering Support

277000901

Unavailable

83

STOPPER - Call your local BRP dealership

277000762

Unavailable

84

RUBBER PAD - Call your local BRP dealership

293830098

Unavailable

85

THREADED PIVOT - Call your local BRP dealership

277000763

Unavailable

86

SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP - Call your local BRP dealership

250000004

Unavailable

87

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

88

SUPPORT BUSHING - Call your local BRP dealership

277000844

Unavailable

89

Flat Washer 10 mm, Stainless

234001600

$1.04

90

Hex. Jam Nut M10

232100600

$2.12

91

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

92

Pop Rivet 3/16"

293150008

$0.46

93

Tie Wrap 368 mm

293750008

$0.97
