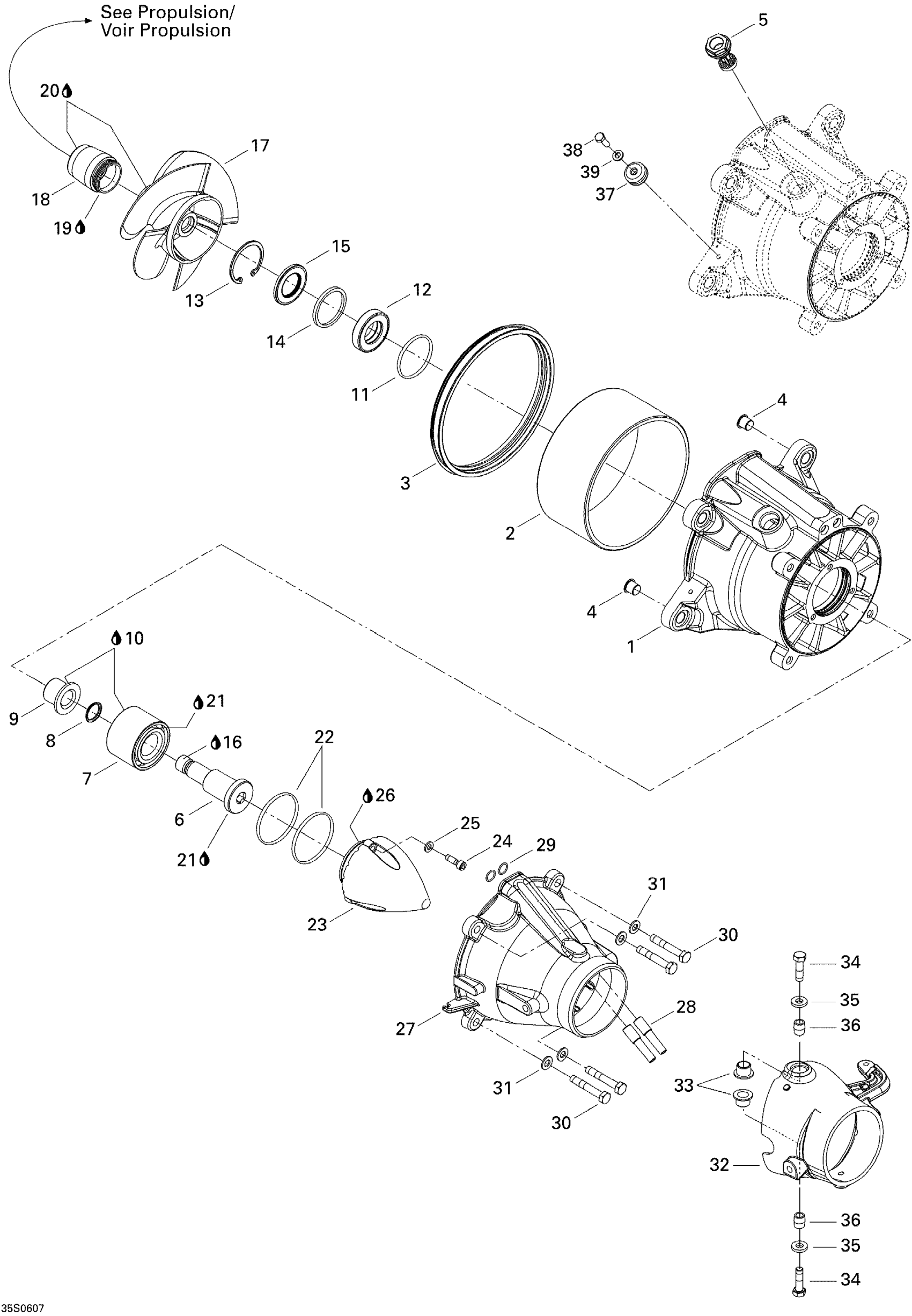

Sea-doo GTX 4-TEC LTD, 2006 Pump Diagram

#

Description
Price

1

Impeller Housing

267000084

Unavailable

2

Wear Ring

267000372

$79.07

3

Neoprene Seal

293200087

$10.55

4

Bushing

267000093

$8.21

5

Plug | Includes 370z to 370z1

267000282

$16.39

6

Impeller Shaft

267000054

$108.18

7

Angled Bearing This part replaces 267000030.

267000900

$76.09

8

O-Ring

505070315

$2.69

9

Shaft Sleeve

267000318

$117.88

10

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

11

O-Ring

293300090

$6.85

12

Seal

271002071

$30.57

13

Circlip

293370038

$8.18

14

Spacer

271001393

$7.03

15

Oil Seal

293200089

$17.88

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

Impeller Ass'y This part replaces 267000250.

267000699

$364.15

18

Guard

271002228

$11.31

19

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

20

Synthetic Grease, 400 G

293550010

Unavailable

21

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

22

O-Ring

293300086

$3.33

23

Impeller Cover

267000262

$19.37

24

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

25

Stainless Flat Washer M6

234061600

$0.28

26

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

27

VENTURI - Call your local BRP dealership

267000221

Unavailable

28

Siphon Tube

271001133

$8.09

29

O-Ring

293300013

$6.54

30

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

207384060

Unavailable

31

Stainless, Flat Washer 8 mm

234081600

$0.52

32

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.

267000552

Unavailable

33

Venturi Bushing

293900001

$7.04

34

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

35

Flat Washer M8.5 x 18

293050001

$1.48

36

Sleeve

271001816

$13.30

37

Anode Zinc

271001813

$15.64

38

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

39

Stainless Flat Washer M6

234061600

$0.28
