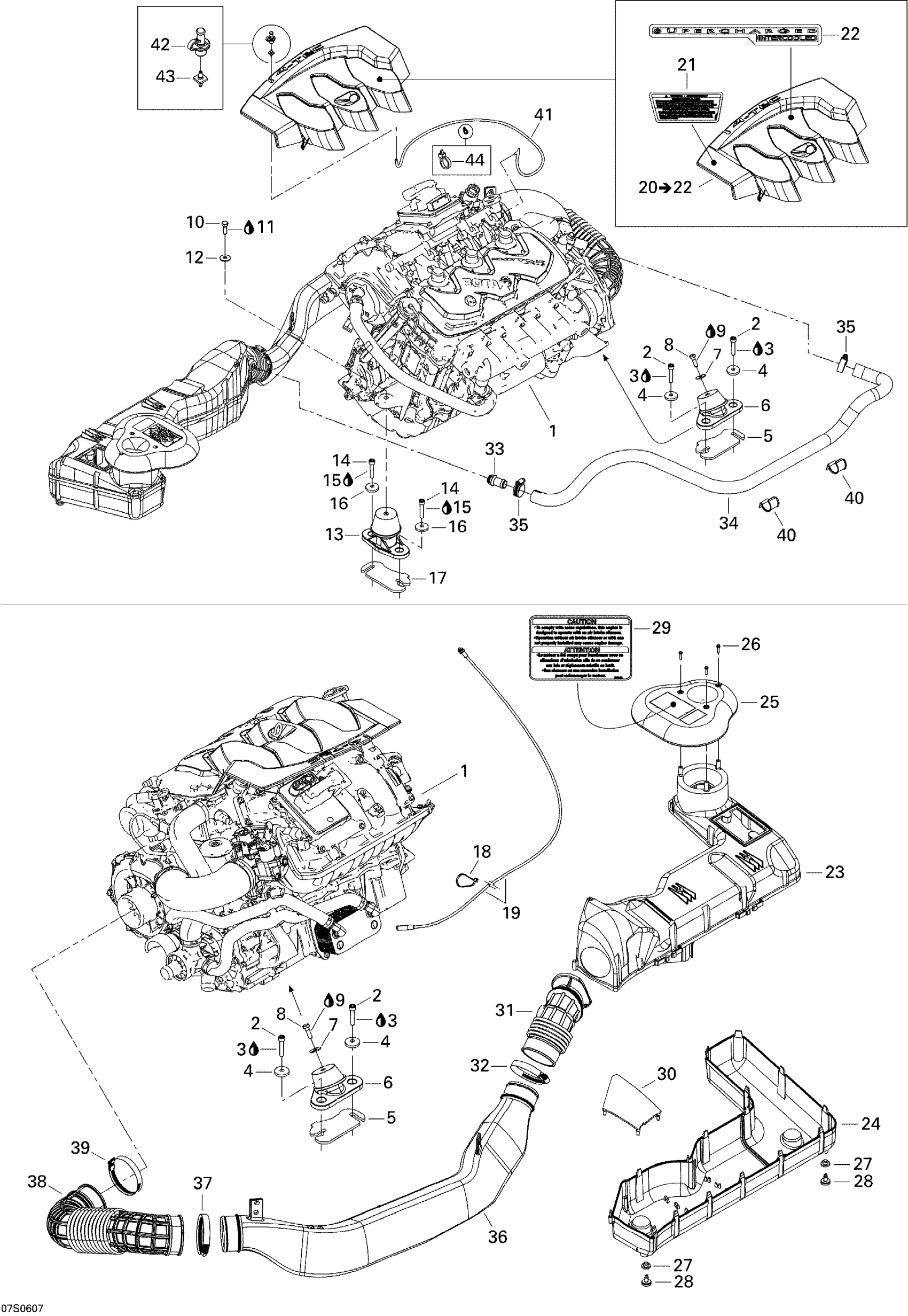

Sea-doo GTX 4-TEC LTD, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.33

5

Shim 1.3 mm

270000762

$10.37

6

Engine Support Ass'y

270001081

$96.99

7

Flat Washer 8 mm, Stainless

234082600

$2.27

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

Flat Washer 8 mm, Stainless

234082600

$2.27

13

Engine Support Ass'y

270001096

$88.78

14

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Cone Washer

250200018

$5.33

17

Shim 1.3 mm

270000762

$10.37

18

Tie-Rap 180 mm

414115200

$0.10

19

THROTTLE CABLE - Call your local BRP dealership

277001121

Unavailable

20

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

21

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

22

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

23

Upper Air Silencer - Call Your Local BRP Dealership

273000222

Unavailable

24

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

25

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

26

Hex. Flange Screw K40 X 16

241141660

$1.43

27

GROMMET - Call your local BRP dealership

293720064

Unavailable

28

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

29

Caution Decal, Air Silencer

219902673

Unavailable

30

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

31

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

31

INTAKE HOSE - Call your local BRP dealership

273000187

Unavailable

32

Tridon Clamp

293650064

$7.57

33

Breather Valve

273000234

$12.21

34

FORMED HOSE - Call your local BRP dealership

270000838

Unavailable

34

Formed Hose

270000949

$42.51

35

Tridon Gear Clamp

293650051

$4.15

36

Intake Hose

273000214

Unavailable

37

Tridon Clamp

293650179

$10.12

38

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

39

Tridon Clamp

293650179

$10.12

40

Retainer

275500664

$12.52

41

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

42

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

43

CONNECTOR - Call your local BRP dealership

293710107

$0.93

44

Tie Wrap 94 mm | 4X4

293750001

$0.96
