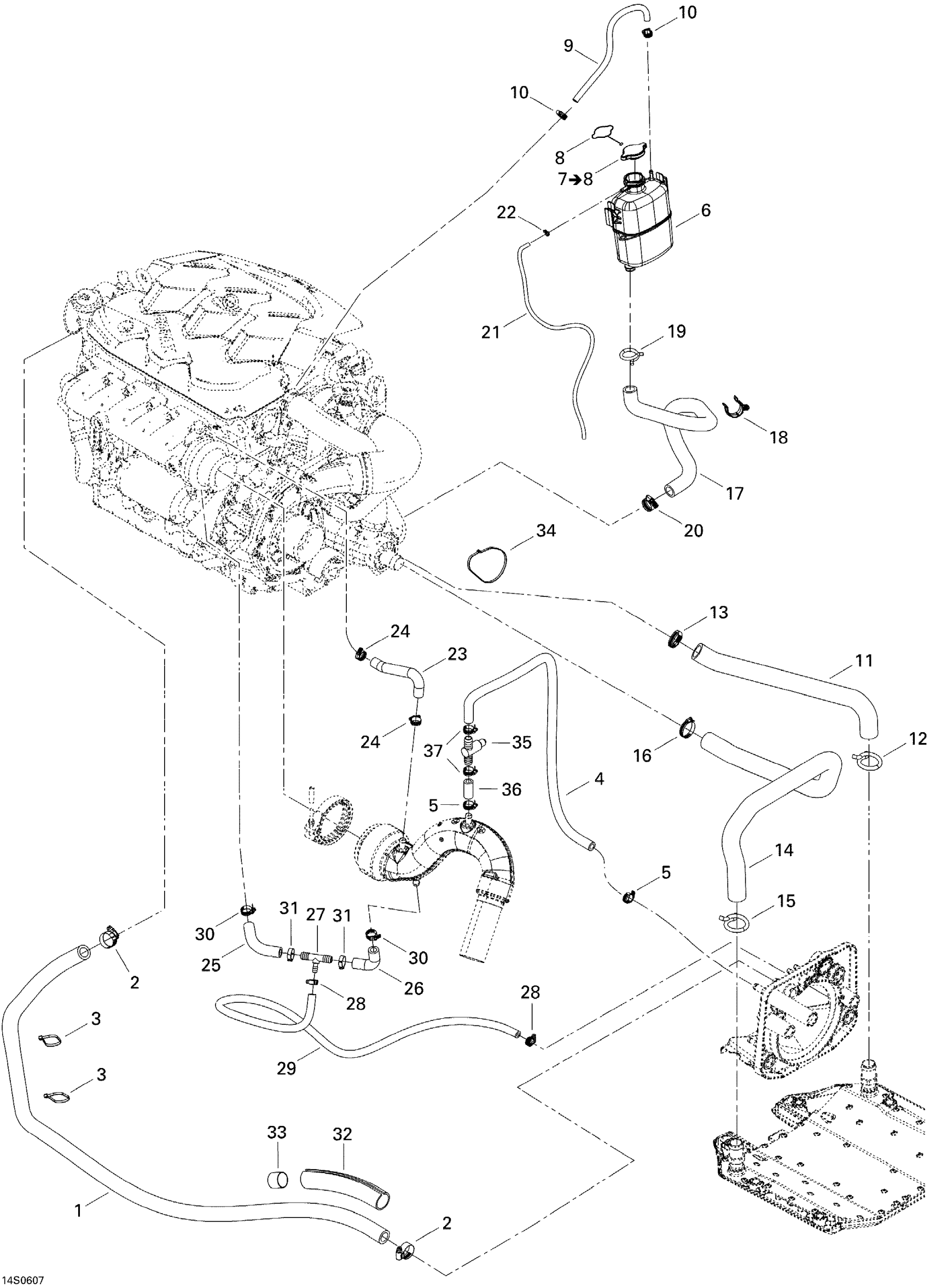

Sea-doo GTX 4-TEC LTD, 2006 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000138

Unavailable

2

Tridon Gear Clamp

293650051

$3.61

3

Tie-Rap 180 mm

414115200

$0.09

4

Was 276000001 Hose 12.5 mm

219704394

$42.87

5

Tridon Gear Clamp

293650172

$2.68

6

Coolant Tank

276000086

$87.72

7

Pressure Cap | Includes 720 to 720a

276000100

$20.77

8

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

9

Was 275500549 Hose 1/4"

219704357

$183.82

10

Tridon Gear Clamp

293650170

$1.74

11

RH Radiator Hose

276000248

$45.47

12

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

13

Tridon Gear Clamp

293650045

$4.51

14

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

15

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

16

Tridon Gear Clamp

293650045

$4.51

17

Formed Return Hose

276000144

Unavailable

18

Retainer

275500526

$3.73

19

Spring Clamp

293650115

$2.46

20

Tridon Gear Clamp

293650019

$4.81

21

Polyurethane Hose 10000Mm Long

219704410

$46.12

22

Tie Wrap 94 mm | 4X4

293750001

$0.83

23

Formed Hose

276000155

Unavailable

24

Tridon Gear Clamp

293650172

$2.68

25

Lower Formed Hose

276000160

Unavailable

26

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

27

T-Fitting

293710116

$14.27

28

Tridon Gear Clamp

293650171

$2.46

29

Hose 8 mm

509000093

Unavailable

30

Tridon Gear Clamp

293650172

$2.68

31

Tridon Gear Clamp

293650173

$2.46

32

Tubing 25 MM 1000MM Long

219704402

$12.69

33

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable

34

Tie Wrap 368 mm

293750008

$0.85

35

T-FITTING - Call your local BRP dealership

295000103

Unavailable

36

Was 276000001 Hose 12.5 mm

219704394

$42.87

37

Tridon Gear Clamp

293650172

$2.68
