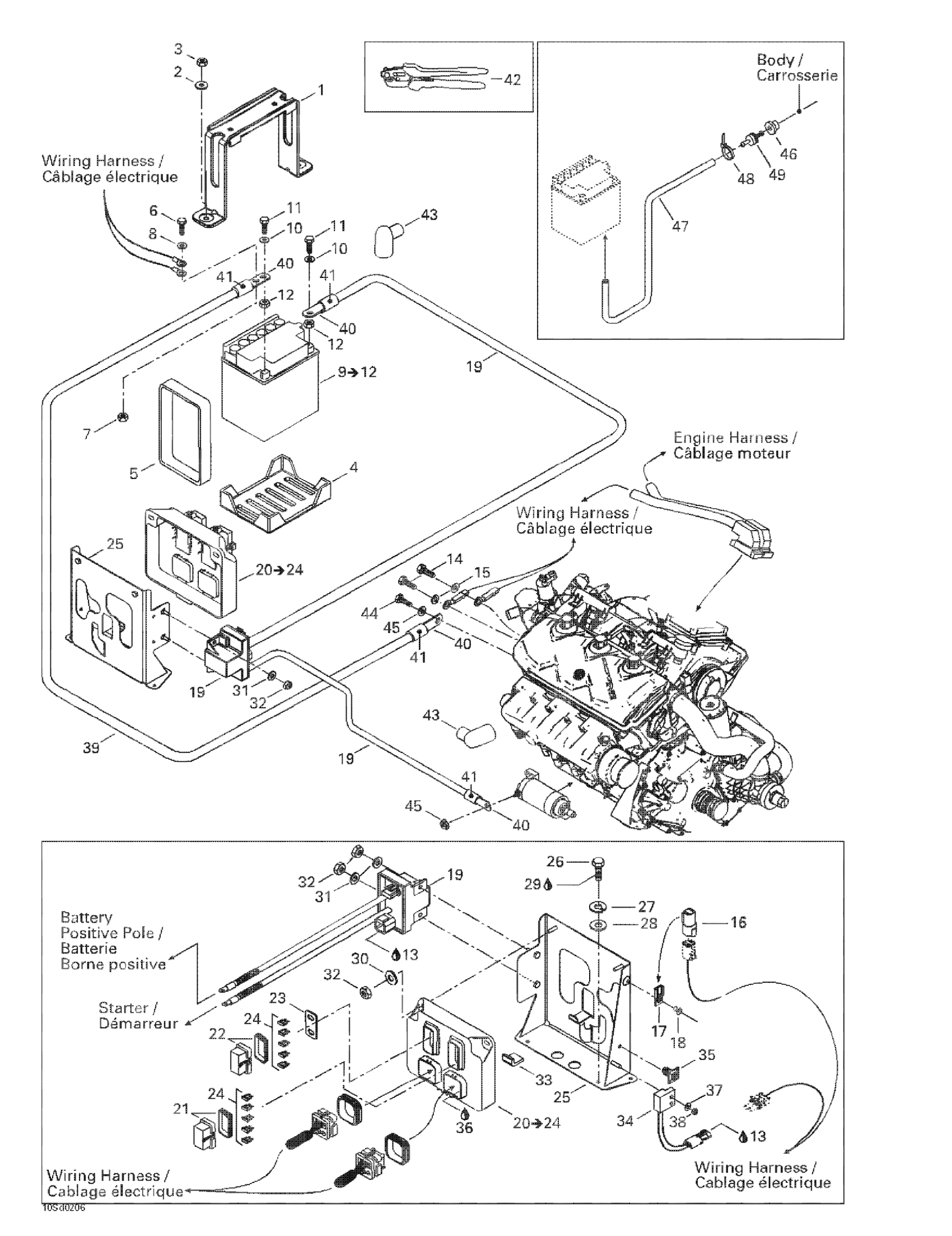

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 Electrical System Diagram

#

Description
Price

1

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

2

Flat Washer 8 mm, Stainless

234082600

$1.98

3

Hex. Elastic Nut M8

232581600

$1.25

4

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

5

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

6

Hex. Cap Screw M6 X 12

207161260

$1.21

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Stainless Flat Washer M6

234061600

$0.25

9

Battery, 30 Amperes

278001882

$152.72

10

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

11

Hex. Screw M6 X 16

207161644

$0.61

12

Hex. Nut M6

232061414

$0.44

13

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

14

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

15

Stainless Flat Washer M6

234061600

$0.25

16

Diagnostic Connector

278002704

$15.57

17

Clip

270000141

$8.33

18

Pop Rivet 3/16"

204000081

$1.31

19

STARTER RELAY - Call your local BRP dealership

278001767

Unavailable

20

Electronic Module Ass'y | Includes 20 - 24.

278001753

Unavailable

21

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

22

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

23

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

24

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 10 Amperes | North America

278001197

$1.79

25

Module Support

278001693

Unavailable

26

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

27

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

28

Flat Washer 5 mm, Stainless

234052600

$0.64

29

Loctite 271, 10 ml

293800005

$20.77

30

Flat Washer M6, Stainless

234062600

$0.64

31

Stainless Flat Washer M6

234061600

$0.25

32

Hex. Elastic Stop Nut M6

232561600

$0.92

33

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

34

T.O.P.S. SWITCH - Call your local BRP dealership | Includes 13 to 16

278001547

Unavailable

35

Self-Locking Clip

278001775

Unavailable

36

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

37

Stainless Flat Washer M6

234061600

$0.25

38

Hex. Elastic Stop Nut M6

232561600

$0.92

39

Battery Ground Cable Ass'y

278001611

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

44

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

45

Elastic Flange Stop Nut M6

250100036

Unavailable

46

Grommet

293720029

$1.13

47

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

48

Tie Wrap 94 mm | 4X4

293750001

$0.83

49

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable
