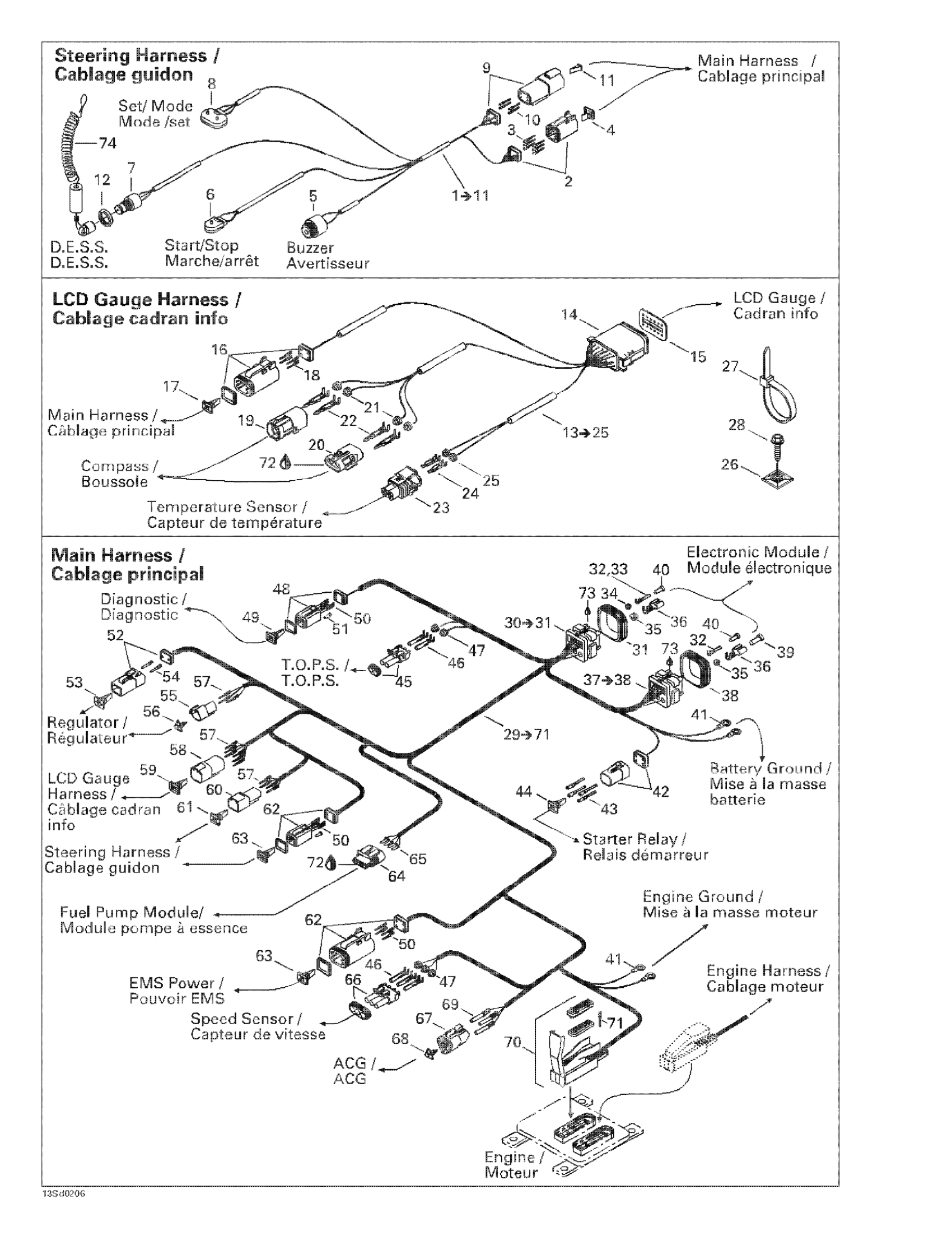

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 Electrical Harness Diagram

#

Description
Price

1

STEERING HARNESS ASSY - Call your local BRP dealership | Includes 1 to 11

278001732

Unavailable

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

3

Female Terminal

278000632

$2.09

4

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

5

BUZZER - Call your local BRP dealership

278001586

Unavailable

6

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

SET/MODE SWITCH - Call your local BRP dealership

278001755

Unavailable

9

Female Housing, 4 Circuits

278000635

$16.49

10

Male Terminal

278000631

$4.39

11

Female Wedge, 4 Circuits

278000636

$4.39

12

Safety Nut (DESS Switch)

278002963

$3.28

13

Cluster Harness Ass’Y | Includes 15 to 27

278001702

Unavailable

14

Female Terminal Housing, 12 Circuits

278002377

$49.99

15

Female Lock, 12 Circuits

409015700

$4.55

16

Male Connector, 4 Circuits | CE

278000739

$19.49

17

Male Lock, 4 Circuits | CE

278000738

$3.09

18

Female Terminal

278000632

$2.09

19

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

20

Female Housing, 2 Circuits

278000217

$9.59

21

Wire Seal

278000218

$4.39

22

Male Terminal | XT Models

278000222

$3.19

23

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

24

Female Terminal

278000998

$4.39

25

Wire Seal

278000999

$3.19

26

Tie Rap Mount

293750026

$3.09

27

Tie-Rap 180 mm

414115200

$0.11

28

Hex. Flange Screw K40 X 13

241141360

$0.67

29

Main Harness | Includes 29 - 71.

278001607

Unavailable

30

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

31

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

32

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

33

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

34

Seal

278001223

Unavailable

35

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

36

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

37

Male Terminal Housing, 26 Circuits

278001062

Unavailable

38

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

39

SEAL - Call your local BRP dealership

409013900

Unavailable

40

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

41

Open Barrel Terminal

278001392

$4.79

42

Female Terminal Housing, 4 Circuits

278001473

$26.99

43

FEMALE TERMINAL - Call your local BRP dealership

515175260

Unavailable

44

Female Lock, 4 Circuits

278001474

$3.49

45

Male Connector, 2 Circuits

278000220

$15.49

46

Female Terminal

278000223

$3.19

47

Wire Seal

278000218

$4.39

48

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

49

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

50

Female Terminal

278000632

$2.09

51

Sealing Cap

293000052

$3.19

52

Female Terminal Housing, 2 Circuits

278001673

$23.49

53

Female Lock, 2 Circuits

278001671

$3.58

54

Female Terminal

515175567

$7.69

55

Male Housing

278002378

$13.99

56

Male Lock, 3 Circuits

409207600

$3.19

57

Male Terminal

278000631

$4.39

58

Female Housing, 4 Circuits

278000635

$16.49

59

Female Wedge, 4 Circuits

278000636

$4.39

60

Male Terminal Housing, 6 Circuits

710001539

$19.99

61

Female Lock, 6 Circuits

278000735

$3.19

62

Male Connector, 4 Circuits | CE

278000739

$19.49

63

Male Lock, 4 Circuits | CE

278000738

$3.09

64

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

65

Female Terminal

278001114

$3.19

66

Male Housing, 3 Circuits

278000273

$9.59

67

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

68

Female Lock

409207200

$4.39

69

Female Terminal

278000632

$2.09

70

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

71

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

Female Terminal

278001752

Unavailable

72

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

73

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

74

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99
