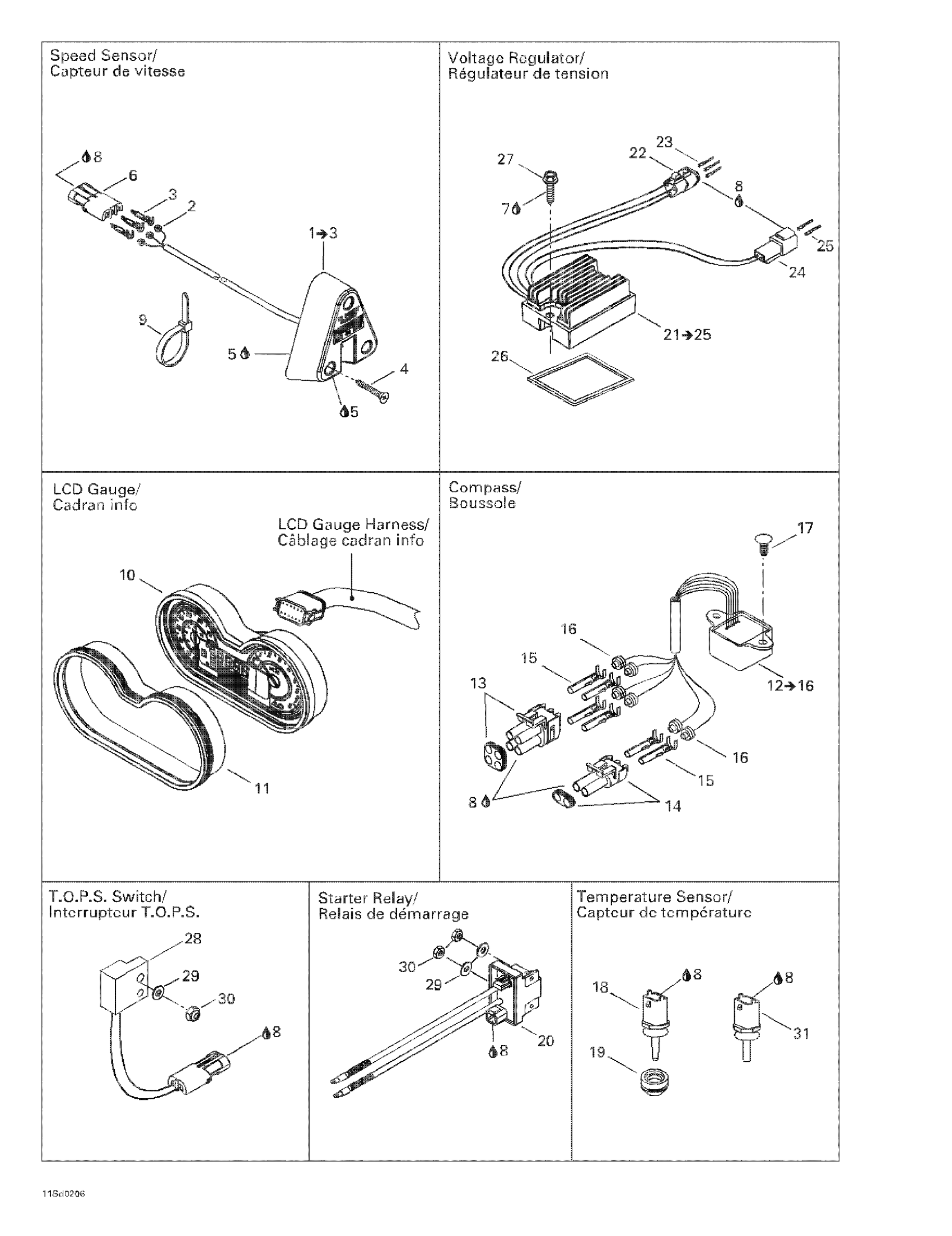

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 Electrical Accessories Diagram

#

Description
Price

1

Speed Sensor

278001993

$169.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

7

Loctite 271, 10 ml

293800005

$26.99

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

Tie-Rap 180 mm

414115200

$0.11

10

LCD Gauge

278001591

Unavailable

11

GAUGE SUPPORT - Call your local BRP dealership

278001603

Unavailable

12

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

14

Male Connector, 2 Circuits

278000220

$15.49

15

Female Terminal

278000223

$3.19

16

Wire Seal

278000218

$4.39

17

Black Dart

293730010

$0.99

18

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

19

INSULATOR - Call your local BRP dealership

278001054

Unavailable

20

STARTER RELAY - Call your local BRP dealership

278001767

Unavailable

21

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

22

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

23

Male Terminal

278000631

$4.39

24

Male Housing, 2 Circuits

409206900

$9.59

25

Not Available As Spare Part - Friction Washer

Unavailable

26

SEAL - Call your local BRP dealership

293250123

Unavailable

27

Hex. Screw 10-14 X 7/8”

211000023

$3.59

28

T.O.P.S. SWITCH - Call your local BRP dealership | Includes 13 to 16

278001547

Unavailable

29

Stainless Flat Washer M6

234061600

$0.33

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

Temperature Sensor

278002895

$39.99
