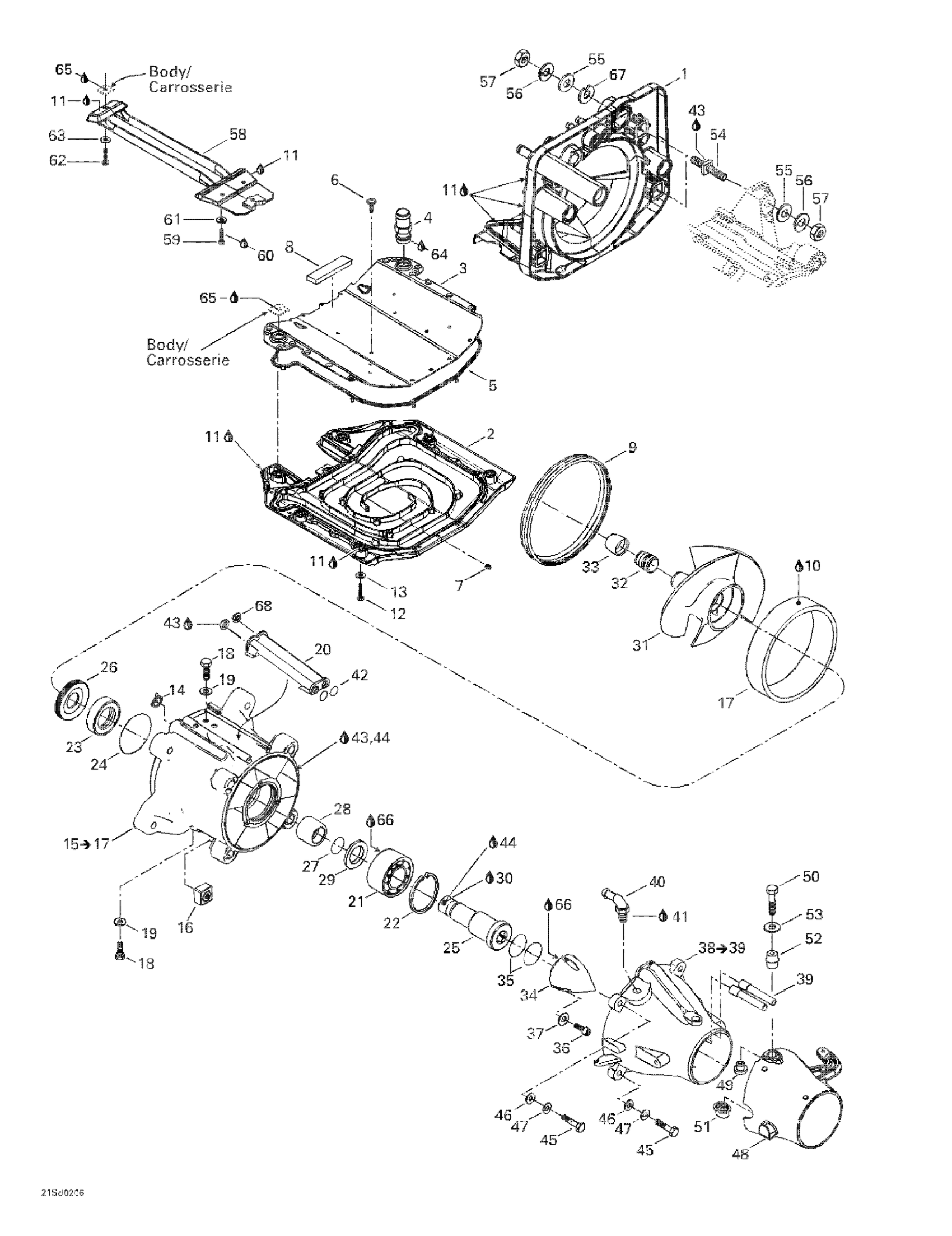

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 Propulsion System Diagram

#

Description
Price

1

Pump Support

271001545

$132.49

2

Riding Plate

271001318

Unavailable

3

Cover Plate

271001335

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Oil Seal

293250116

Unavailable

6

Torx Button Head Screw M6 X 14

250000064

$6.66

7

Socket Drain Plug M6 X 12

250500005

$16.49

8

Gasket, Neoprene 2000Mm Long

219704476

$15.36

9

Neoprene Seal

293200051

$17.74

10

Glue Tube, Loctite 454, 20 G

413708300

$60.99

11

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

12

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

13

Stainless, Flat Washer 8 mm

234081600

$0.55

14

Reducer This part replaces 291001887.

291004649

$17.49

15

IMPELLER HOUSING - Call your local BRP dealership | Includes 15 - 17.

271001288

Unavailable

16

Square Nut M8

211100033

$17.99

17

Wear Ring

271000653

$58.49

18

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

19

Flat Washer M5, Stainless

234051600

$0.77

20

Water Outlet

271000785

$3.80

21

Angle Bearing

293350042

$91.99

22

Circlip

293370021

Unavailable

23

Seal

271002071

$33.99

24

O-Ring

293300090

$7.20

25

Impeller Shaft

271001263

$116.49

26

SHIELD - Call your local BRP dealership

271001278

Unavailable

27

O-Ring

293300079

$6.66

28

SHAFT SLEEVE - Call your local BRP dealership

271001406

Unavailable

29

SPACER - Call your local BRP dealership

271001264

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Impeller Assy This part replaces 267000115.

267000673

$391.99

32

IMPELLER BOOT - Call your local BRP dealership

271001152

Unavailable

33

IMPELLER RING - Call your local BRP dealership

271001153

Unavailable

34

Impeller Cover

267000262

$21.99

35

O-Ring

293300086

$3.59

36

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

37

Stainless Flat Washer M6

234061600

$0.33

38

Venturi

271001163

Unavailable

39

Siphon Tube

271001133

$10.99

40

ELBOW ASSY - Call your local BRP dealership

271001298

Unavailable

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

O-Ring

293300013

$8.18

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

44

Was 293800041 Loctite Primer 7649

219704458

$39.99

45

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

46

Stainless, Flat Washer 8 mm

234081600

$0.55

47

Lock Washer 8 mm, Stainless

234181601

$0.55

48

Steering Nozzle

271001311

Unavailable

49

Venturi Bushing

293900001

$7.62

50

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

51

Plastic Bushing

293900010

$9.59

52

Sleeve

271001816

$14.99

53

Flat Washer M8.5 x 18

293050001

$3.07

54

Square Stud

250300022

$20.99

55

Flat Washer 10 mm, Stainless

234002600

$2.22

56

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

57

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

58

PUMP GRATE - Call your local BRP dealership

271001169

Unavailable

59

Hex. Screw M6 X 16

207161660

$1.59

60

Loctite 271, 10 ml

293800005

$26.99

61

Stainless Flat Washer M6

234061600

$0.33

62

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

63

Stainless, Flat Washer 8 mm

234081600

$0.55

64

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

65

Silicone Sealant 51388, 300 ml

296000309

$36.99

66

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

67

Shim 0.3 mm

272000053

$11.49

68

Watertight Seal

293250084

$7.49
