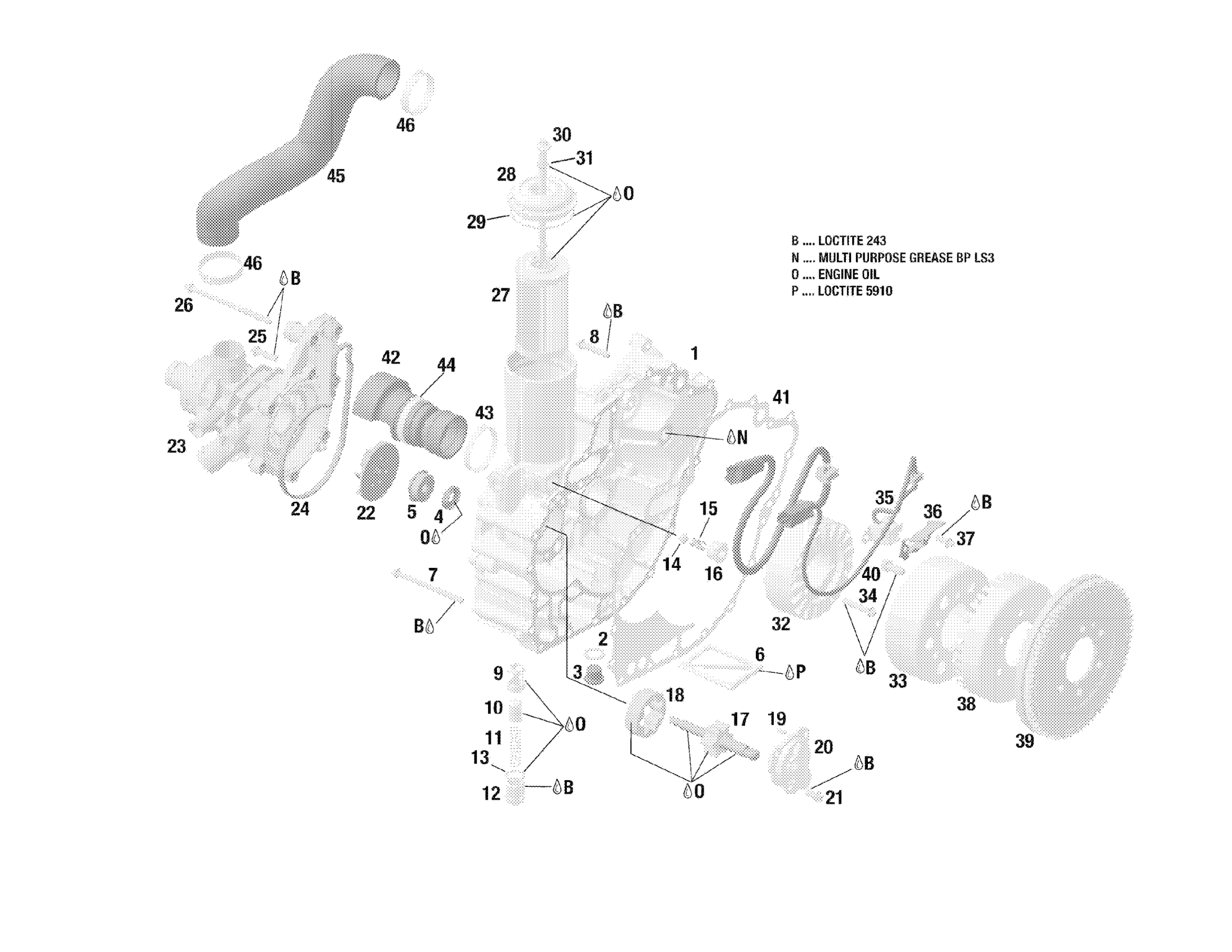

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes 1 - 5.

290811573

Unavailable

2

Gasket Ring

420430624

$1.51

3

Plug Screw M16

290240233

Unavailable

4

Oil Seal

420650315

$9.62

5

Rotary Seal

420650371

$35.72

6

Oil Sieve

420956950

$12.48

7

Torx Flange Screw M6 X 85

420641228

$6.11

8

Torx Flange Screw M6 X 35

420641258

$2.78

9

Valve Seat Sleeve

420256606

$24.02

10

Piston Valve

420256638

Unavailable

11

Compression Spring

420939211

$7.16

12

Plug Screw M20 X 1.5

420641052

$31.17

13

O-Ring

420230890

$4.41

14

Ball

711232370

Unavailable

15

Spring

711238050

Unavailable

16

Plug Screw M20

290641438

Unavailable

17

Pump Shaft Ass'y

420837472

$45.47

18

Oil Pump Rotor 16 mm

420956675

$29.22

19

Needle Pin

420929070

$1.56

20

Oil Pump Cover

420811591

$29.87

21

Torx Flange Screw M6 X 16

420641048

$2.46

22

Impeller

420922801

$14.27

23

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$241.12

24

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

25

Torx Flange Screw M6 X 25

420641238

$2.68

26

Torx Flange Screw M6 X 105

420641338

$6.11

27

Oil Filter

420956741

$11.14

28

Oil Filter Cover

420610329

$27.27

29

O-Ring

420230923

$2.59

30

Oil Filter Screw Kit

295501207

$32.47

31

O-Ring

420950860

$3.20

32

Stator Ass'y

290889720

Unavailable

33

Magneto Flywheel

290889710

Unavailable

34

Torx Flange Screw M6 X 35

420641258

$2.78

35

Camshaft Sensor

290664140

Unavailable

36

Retaining Plate

420926300

$12.97

37

Torx Flange Screw M6 X 16

420641048

$2.46

38

Trigger Wheel

420966851

$14.92

39

Starter Gear, 86 Teeth

420835163

$276.84

40

Hex Screw

295501162

$11.47

41

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

42

Ball Bearing With Bellows | Includes 42 - 43.

290832647

Unavailable

43

Gear Clamp

420851653

$6.11

44

Gear Clamp 46.8-50.0MM

420853023

$6.11

45

Formed Hose

290922820

Unavailable

46

Clamp 42.8 - 46 mm This part replaces 290851683.

420851683

$9.43

Loctite 243, 10 ml

293800060

$20.77

Dow Corning 111, 150 g

413707000

$57.82

Not Available As Spare Part - Friction Washer

Unavailable

Loctite 5910, 300 ml

293800081

$57.99
