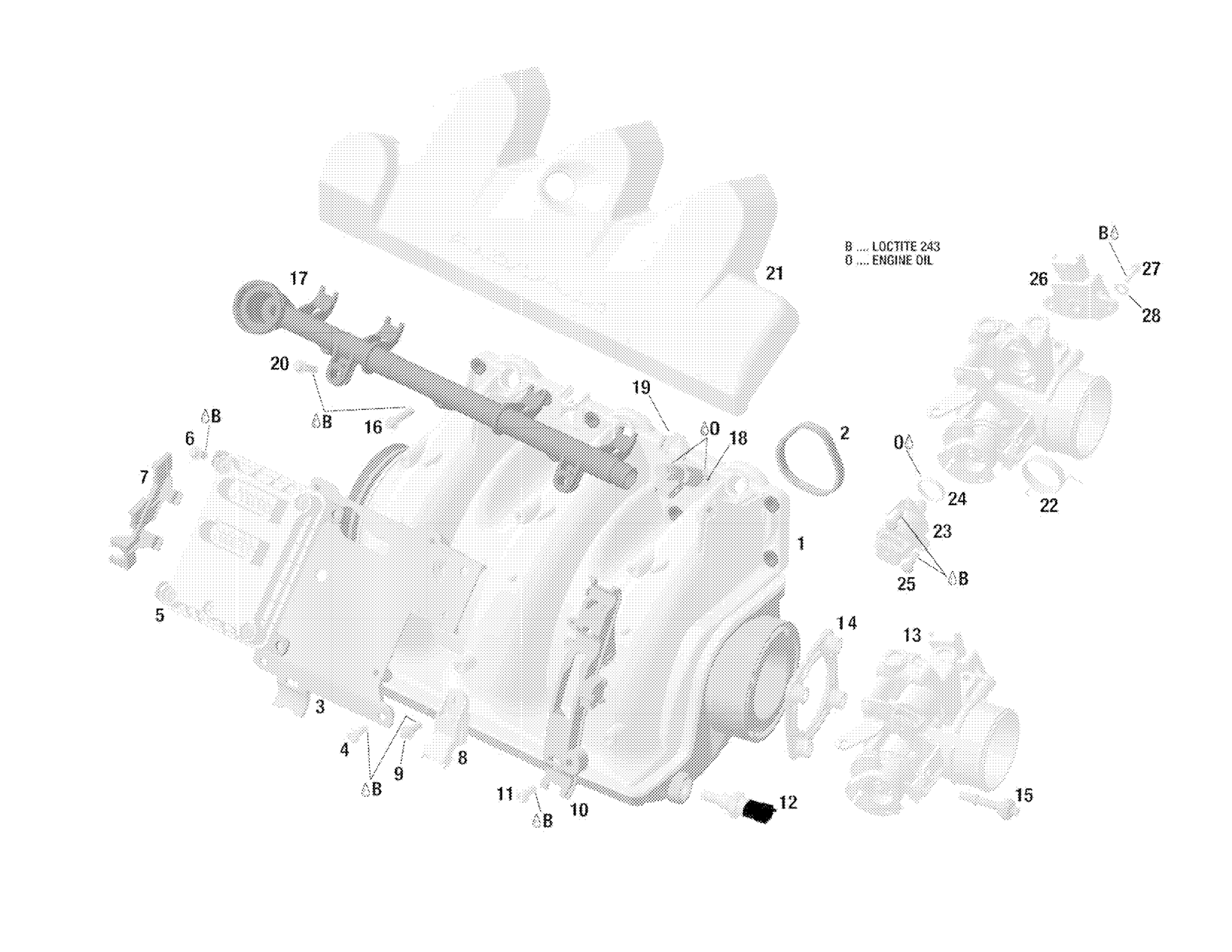

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 Air Intake Manifold Diagram

#

Description
Price

1

Air Intake Manifold

290867920

Unavailable

2

Gasket | Included in gasket kit

420950740

$4.49

3

Base Plate

290851520

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.99

5

ELECTRONIC BOX - Call your local BRP dealership

420664133

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$2.19

7

Connector Bracket

290660400

Unavailable

8

Pressure Sensor

270600040

$204.99

9

Torx Flange Screw M6 X 16

420641048

$2.99

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.19

12

Temperature Sensor

278002895

$41.99

13

Throttle Body

290889020

Unavailable

14

Rubber Gasket

420950792

$11.49

15

Allen Screw M6 x 30,5

420440561

$4.59

16

Torx Flange Screw M6 X 25

420641238

$3.39

17

FUEL RAIL ASS'Y - Call your local BRP dealership

290874391

Unavailable

18

INJECTOR - Call your local BRP dealership | Includes 19 to 20

420874430

Unavailable

19

Injector Clip

420853030

$3.19

20

Torx Flange Screw M6 X 25

420641238

$3.39

21

Stick Coil Cover

290660171

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Idle Bypass Valve

420963051

$319.99

24

O-Ring

420631780

$4.49

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Position Sensor

420866120

$99.99

27

Phillips Screw M4 X 16

208641660

$1.49

28

Flat Washer 4 mm, Stainless

234042600

$1.49

Loctite 243, 10 ml

293800060

$21.49

Not Available As Spare Part - Friction Washer

Unavailable
