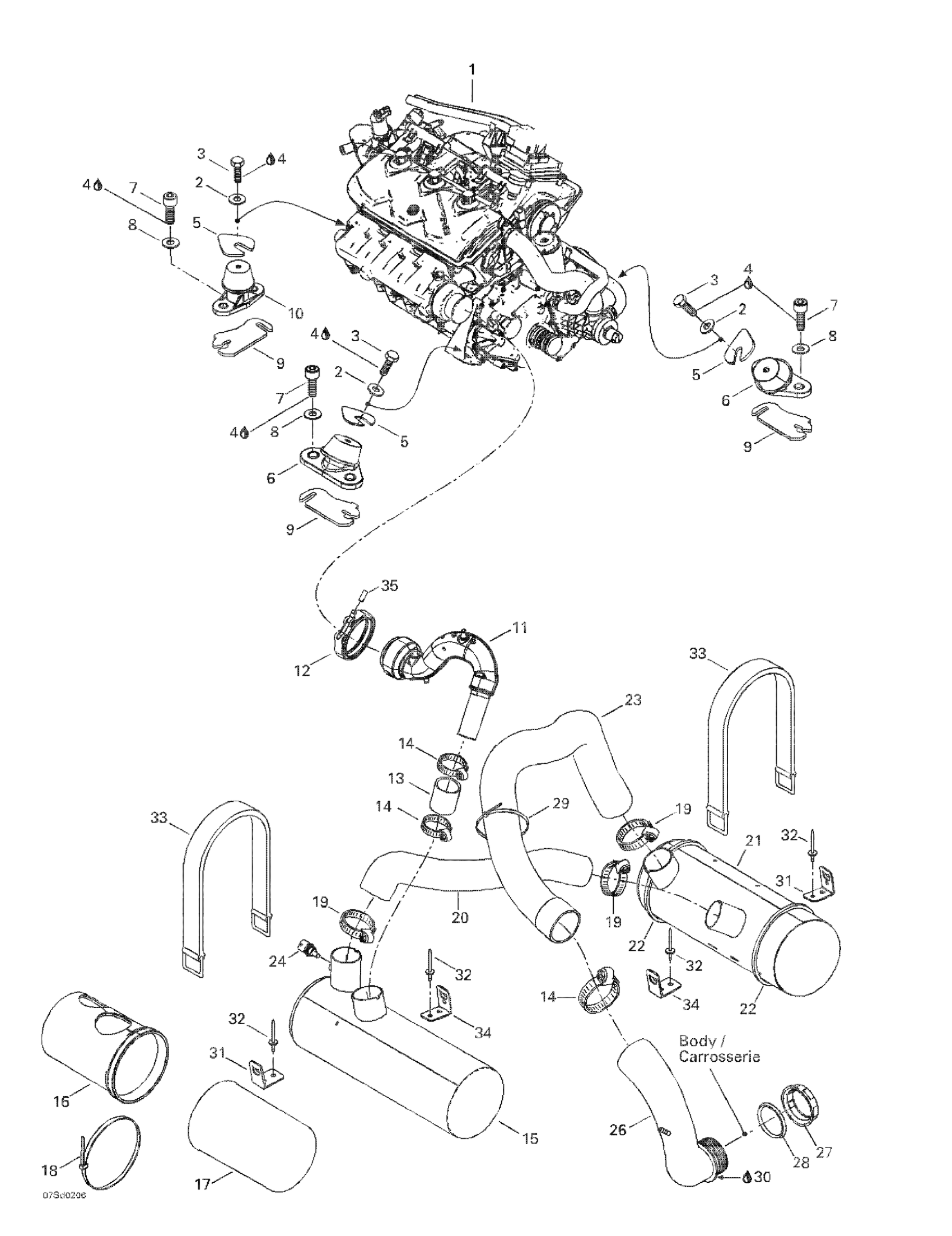

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

Rotax Engine 4 Strokes 1503

270000504

Unavailable

2

Flat Washer 8 mm, Stainless

234082600

$1.98

3

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

$1.01

4

Loctite 243, 10 ml

293800060

$20.77

5

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

6

Engine Support Ass'y

270001081

$84.47

7

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

8

Cone Washer

250200018

$4.64

9

Shim 1.3 mm

270000762

$9.04

SHIM 0.3 MM - Call your local BRP dealership

270000445

$8.15

10

Engine Support Ass'y

270001096

$77.32

11

Exhaust Pipe

274000958

Unavailable

12

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

13

Exhaust Hose

274001302

$28.57

14

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

$4.12

15

Muffler (LH)

274000846

Unavailable

16

Muffler Cover (Front Section)

274000851

Unavailable

17

Muffler Cover (Rear Section)

274000852

Unavailable

18

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

$4.00

19

Tridon Clamp

293650179

$8.81

20

Exhaust Hose

274000840

Unavailable

21

Muffler (RH)

274000855

Unavailable

22

Rubber Strip

293830034

Unavailable

23

Exhaust Hose

274000841

Unavailable

24

Temperature Sensor

278002895

$31.82

25

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

26

Exhaust Outlet

274000901

Unavailable

27

Nut 72 mm

274000224

$12.17

28

STABILIZING WASHER - Call your local BRP dealership

274000225

$6.42

29

Tie Wrap 368 mm

293750008

$0.85

30

Silicone Sealant 51388, 300 ml

296000309

$35.72

31

STRAP CLIP - Call your local BRP dealership

293850075

$9.35

32

Avdel Rivet 3/16"

293150037

$0.47

33

Fuel Tank Strap

293850036

$13.62

34

STRAP CLIP - Call your local BRP dealership

293850069

Unavailable

35

Polyurethane Hose 10000Mm Long

219704410

$46.12
