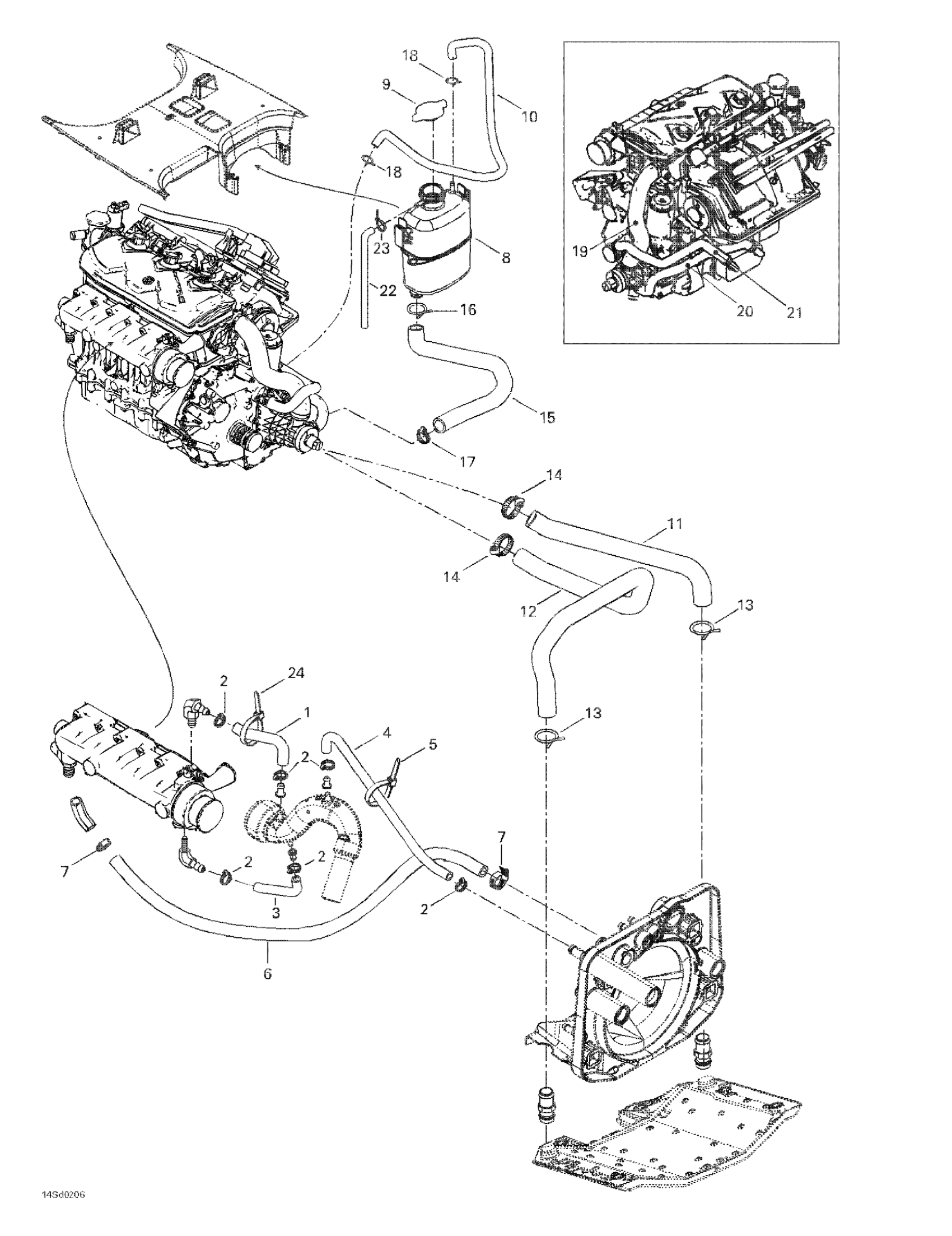

Sea-doo GTX 4-TEC, 5573/5574/5593/5594, 2002 Cooling System Diagram

#

Description
Price

1

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

2

Tridon Gear Clamp

293650172

$3.09

3

Lower Formed Hose

276000104

Unavailable

4

Was 276000001 Hose 12.5 mm

219704394

$51.99

5

Tie Wrap 368 mm

293750008

$1.04

6

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

7

Tridon Gear Clamp

293650051

$4.19

8

Coolant Tank

276000086

$109.99

9

Pressure Cap | Includes 720 to 720a

276000100

$25.99

10

Hose

276000102

Unavailable

11

RH Radiator Hose

276000248

$58.99

12

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

13

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

14

Tridon Gear Clamp

293650045

$5.69

15

Return Hose 19 mm

276000095

Unavailable

16

Spring Clamp

293650115

$3.09

17

Tridon Gear Clamp

293650019

$5.82

18

Oetiker Gear Clamp

293650025

$3.09

19

Formed Hose

290922820

Unavailable

20

Formed Hose

290922795

Unavailable

21

Formed Hose

290922790

Unavailable

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

Tie Wrap 142 mm

293750002

$1.25
