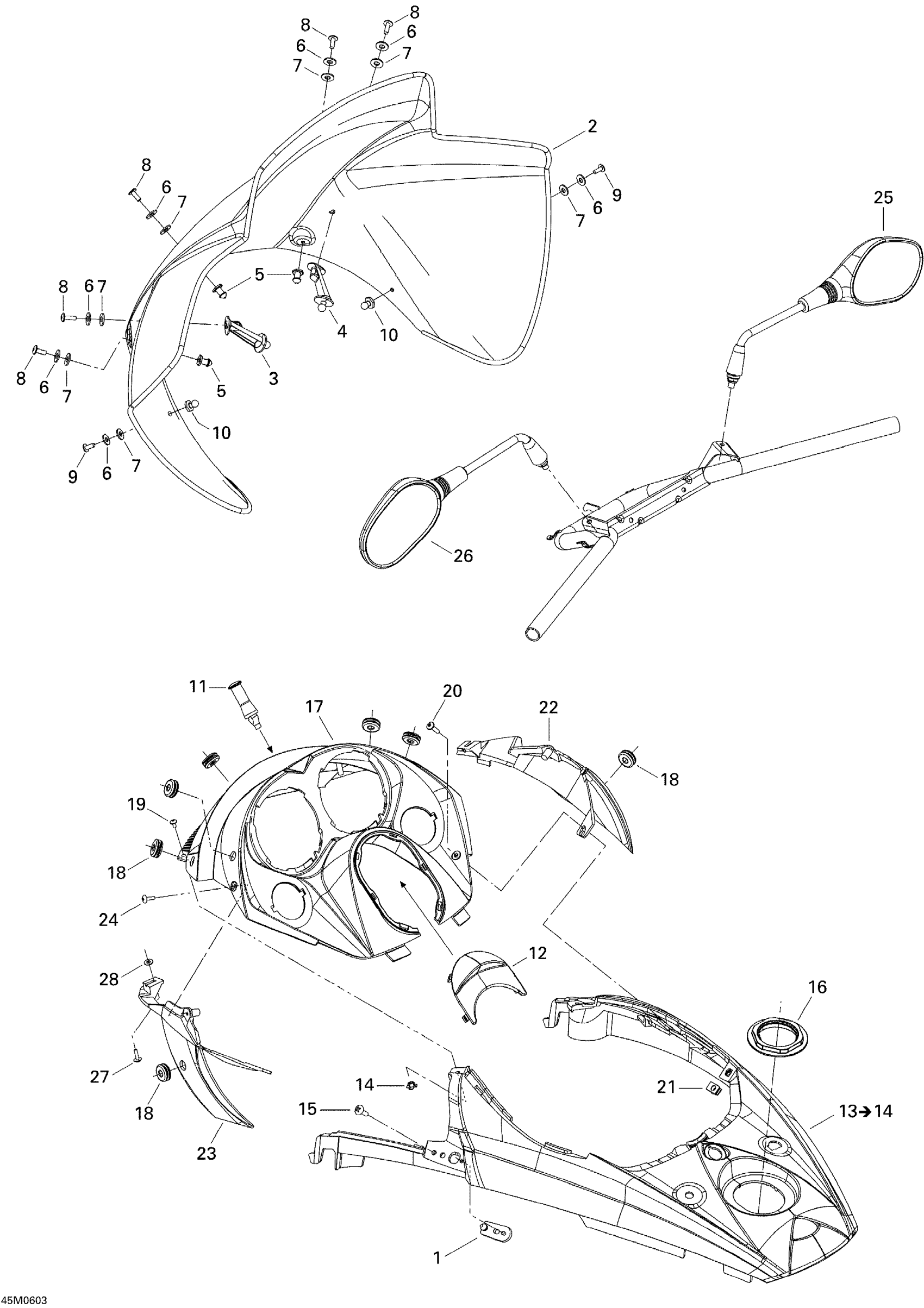

Ski-Doo GTX 380F, 2006 09- Windshield And Console Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

High Windshield

517303247

$132.99

3

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303214

Unavailable

4

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303215

Unavailable

5

Knob

517303439

$4.55

6

Washer M5

250200025

$0.74

7

Rubber Washer 5 mm

250200024

$2.19

8

Torx Screw K50 X 16

250000720

$1.69

9

Torx Screw M5 X 14

250000742

$1.47

10

Knob

517245800

$11.12

11

WINDSHIELD SUPPORT - Call your local BRP dealership

517303197

Unavailable

12

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

13

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 11 to 12

517303381

Unavailable

13

Center Console, Alloy Grey, B-206 | Includes 13 to 14

517303535

Unavailable

14

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

15

Torx Screw M6 X 20

250000722

$1.68

16

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

17

INDICATOR SUPPORT - Call your local BRP dealership

517303397

Unavailable

18

Grommet

517302841

$7.89

19

Torx Screw M4 X 8

250000127

$1.15

20

Torx Screw M5 X 20

250000724

$1.69

21

Panel Nut M5 X 0.8

250000958

$4.23

22

RH AIR DEFLECTOR - Call your local BRP dealership

517303413

Unavailable

23

LH AIR DEFLECTOR - Call your local BRP dealership

517303414

Unavailable

24

Phillips Screw K40 X 16

250000723

$0.98

25

RH MIRROR ASS'Y - Call your local BRP dealership

517303629

Unavailable

26

LH MIRROR ASS'Y - Call your local BRP dealership

517303630

Unavailable

27

Screw M4 X 16

250000725

$3.49

28

Flat Washer 4 mm, Stainless

234042600

$1.15
