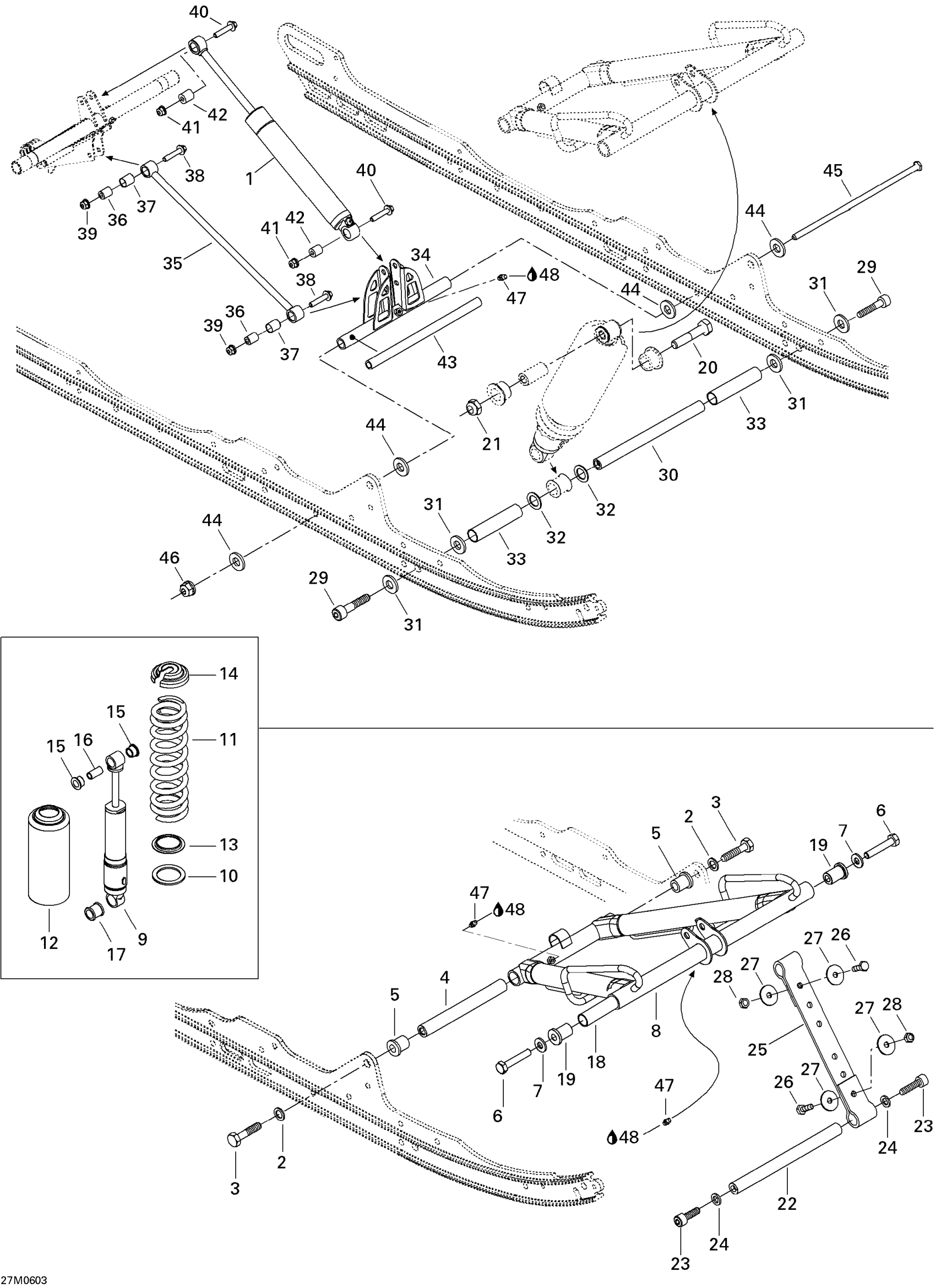

Ski-Doo GTX 380F, 2006 Front Arm Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Europe

503190810

Unavailable

1

REAR SHOCK - Call your local BRP dealership | Except Europe

503191223

Unavailable

2

Washer

503189276

$3.10

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

7

Washer

732900049

$0.55

8

FRONT ARM - Call your local BRP dealership

503191080

Unavailable

9

Center Shock

503190657

Unavailable

10

WASHER - Call your local BRP dealership

505070401

Unavailable

11

SPRING - Call your local BRP dealership | Europe

503189812

Unavailable

11

SPRING - Call your local BRP dealership

503189325

Unavailable

12

Protector

503193663

$34.30

13

Spring Guide

503187500

$8.46

14

Spring Stopper

706200881

$11.82

15

Urethane Bushing

503189117

$6.67

16

Bushing | Includes 240d to 240d1

503189282

$4.06

17

Bushing

503189271

$10.15

18

SHAFT - Call your local BRP dealership

503190387

Unavailable

19

Bushing

503189324

$10.84

20

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

21

Elastic Stop Nut M10

232500416

$1.79

22

AXLE - Call your local BRP dealership

503189562

Unavailable

23

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

24

Washer

503189564

$0.70

25

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

26

Hex. Flange Screw M8 X 25

207682544

$1.03

27

Flat Washer

224081301

$0.84

28

Hex. Flange Elastic Nut M8

233281414

$1.31

29

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

30

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

31

Washer

503189276

$3.10

32

Washer

503189273

$3.10

33

SPACER - Call your local BRP dealership

503189274

Unavailable

34

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

35

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

36

BUSHING - Call your local BRP dealership

503189133

Unavailable

37

CUSHION - Call your local BRP dealership

503189625

Unavailable

38

Hex. Flange Screw M8 X 40

207684044

$1.43

39

Elastic Flange Nut M8

250100025

$1.43

40

Hex. Flange Screw M8 X 40

207684044

$1.43

41

Elastic Flange Nut M8

250100025

$1.43

42

Bushing

414936000

$11.21

43

Pivot Arm Axle

503189156

$20.12

44

Washer

503189157

$3.10

45

Bolt M8 X 248mm

503192440

$29.07

46

Elastic Flange Nut M8

250100025

$1.43

47

Grease Fitting

408200700

$3.21

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
