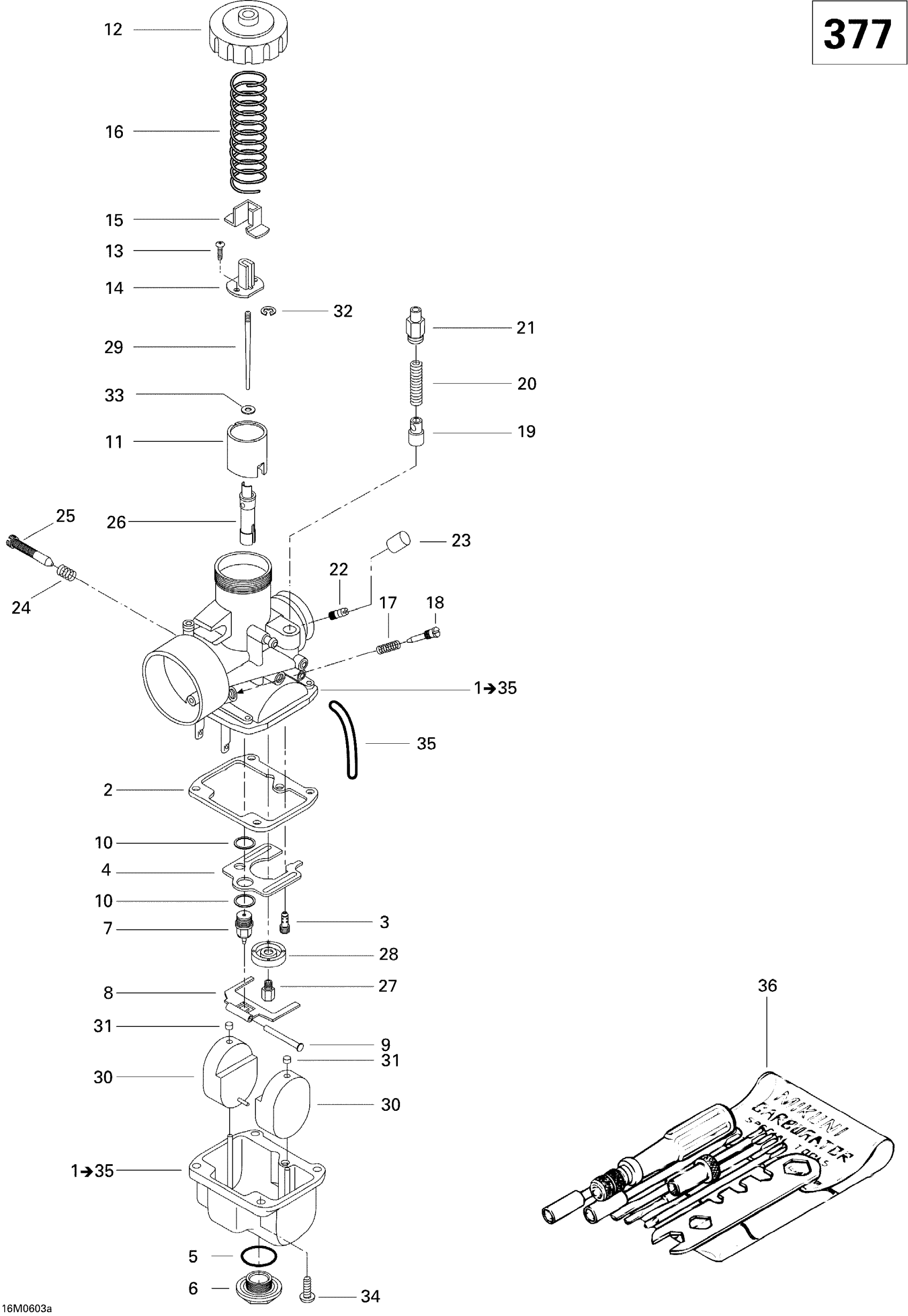

Ski-Doo GTX 380F, 2006 Carburetor 380F Diagram

#

Description
Price

1

CARBURETOR VM30-213 - Call your local BRP dealership

403138774

Unavailable

2

Gasket | Includes 1900a to 1900am

404104200

$6.49

3

Pilot Jet 35

404102700

$5.29

4

BAFFLE - Call your local BRP dealership

404109600

Unavailable

5

O-Ring

404107300

$7.90

6

Drain Plug Screw

404107400

$23.85

7

Needle Valve 1.2

404147500

$43.25

8

Float Lever

404107600

$23.85

9

Lever Pin

404103300

$6.36

10

Seat Washer

404101600

$3.21

11

PISTON VALVE 2.0 - Call your local BRP dealership

404128600

Unavailable

12

Cover

404103700

$32.06

13

Screw With Washer

404121300

$4.24

14

Packing

404161987

$14.46

15

Cover

404122100

$17.88

16

Spring

404154800

$24.60

17

Spring

404101800

$4.36

18

Air Screw

404102300

$14.46

19

Plunger Ass'y | MAG Side

404161986

$17.88

20

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

21

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

22

Nipple

404153400

$11.16

23

Cap

404156600

$15.64

24

Spring

404101700

$4.24

25

Idle Speed Screw

404109700

$17.88

26

NEEDLE JET 159-Q-2 - Call your local BRP dealership

404110800

Unavailable

27

Main Jet 195

404119400

$5.19

28

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

29

Needle J8-6dey13

404162075

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Cap

404105800

$6.49

32

E-Ring

404152400

$6.36

33

Packing

404117000

$3.31

34

Screw With Lock Washer

404102000

$3.19

35

HOSE - Call your local BRP dealership

404161888

Unavailable

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
