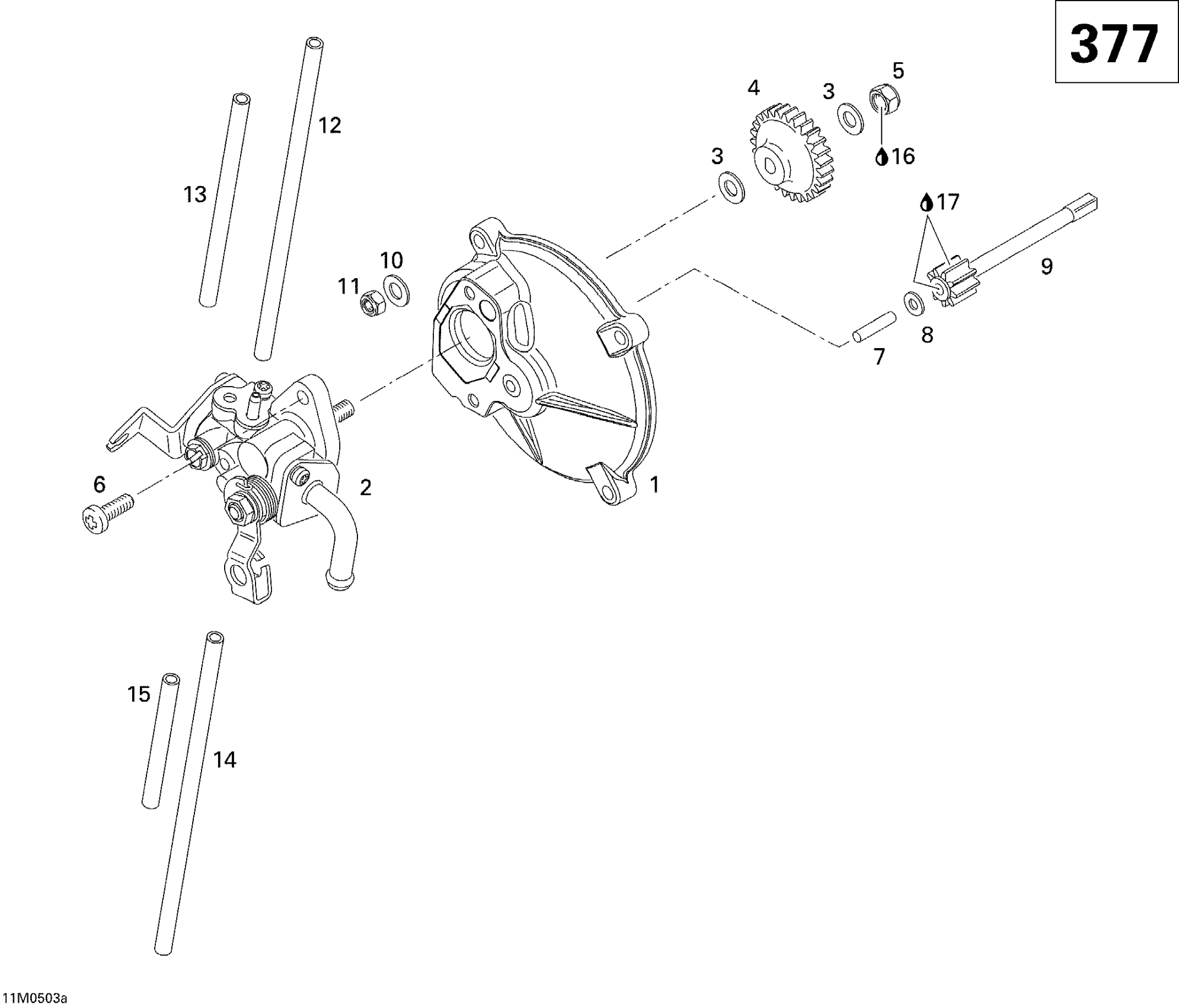

Ski-Doo GTX 380F, 2005 Oil Pump 377 Diagram

#

Description
Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910162

Unavailable

2

OIL PUMP ASS'Y - Call your local BRP dealership

420889800

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$14.10

5

Elastic Stop Nut M6

232561414

$1.78

6

Screw

420841971

$2.82

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$0.81

9

Gear, 9 Teeth

420935970

$14.90

10

WASHER - Call your local BRP dealership

420827800

Unavailable

11

NUT M5 - Call your local BRP dealership

420942025

Unavailable

12

Oil Hose 1500Mm Long

219704404

$15.64

13

Hose 6 Mm 15000Mm Long

219704360

$120.12

14

Oil Hose 1500Mm Long

219704404

$15.64

15

Hose 6 Mm 15000Mm Long

219704360

$120.12

16

Loctite 243, 10 ml

293800060

$21.49

17

Dow Corning 111, 150 g

413707000

$59.99
