2005 Ski-Doo GTX 380F Engine AND Engine Support 380F Diagram

← All diagrams

Find the part on the Engine AND Engine Support 380F diagram for your 2005 Ski-Doo GTX 380F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

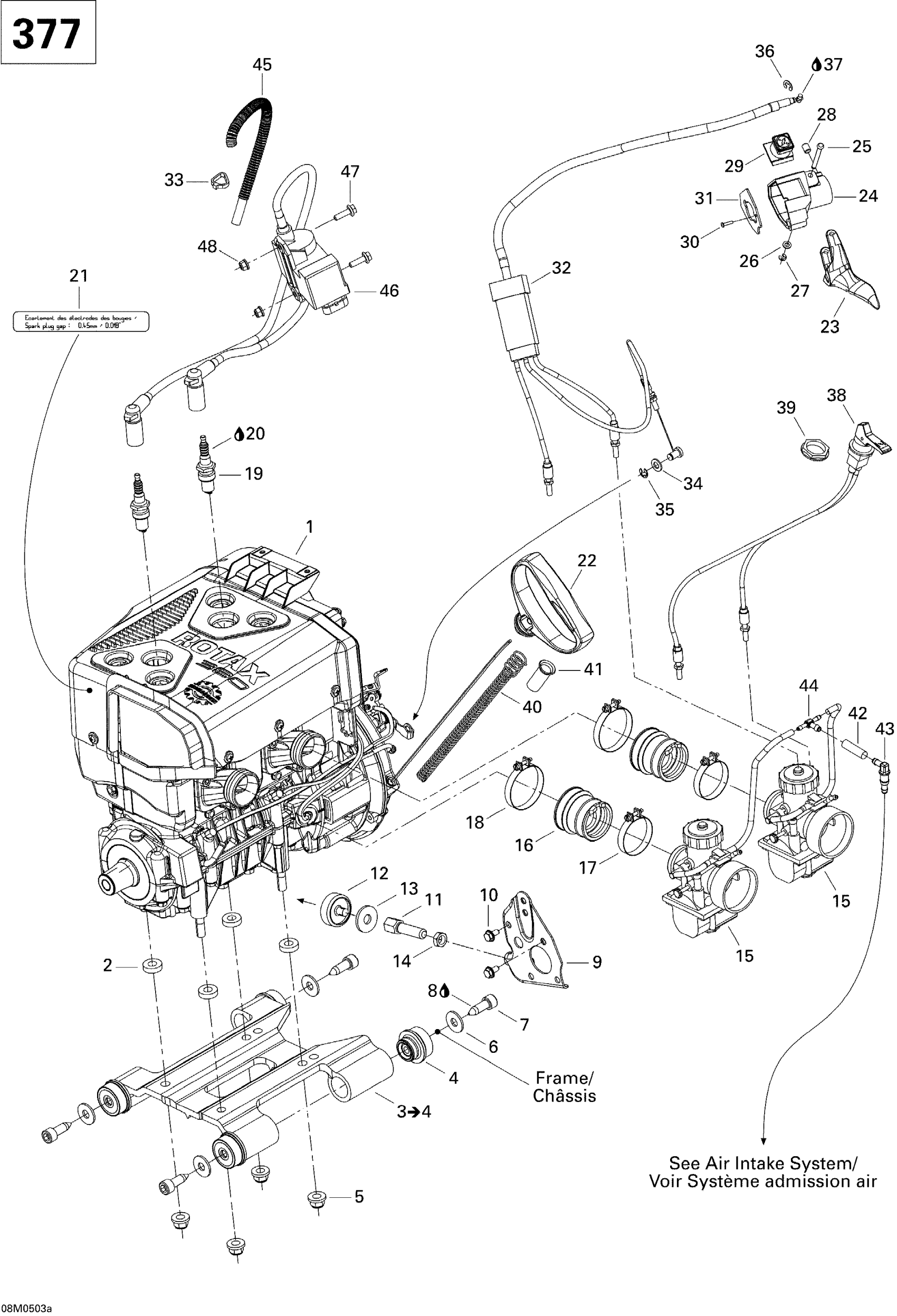

2005 Ski-Doo GTX 380F Engine AND Engine Support 380F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

377 Engine

400308913

—
Out of stock

2

SPACER - Call your local BRP dealership

512051800

—
Out of stock

3

Engine Support | Includes 2 to 3

512059885

—
Out of stock

4

Rubber Mount

512059691

4
Out of stock

5

4

$1.26

In stock

6

Flat Washer M10 | 4X4

250200014

4
Out of stock

7

Screw M10 X 30

250000094

4
Out of stock

8

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

—
Out of stock

9

Support Plate

512059910

—
Out of stock

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

2
Out of stock

11

STOPPER SCREW - Call your local BRP dealership

512058800

—
Out of stock

12

STOPPER - Call your local BRP dealership

512059610

—
Out of stock

13

WASHER - Call your local BRP dealership

512059057

—
Out of stock

14

Nut Hexagonal RH.

232026414

1

$1.48

In stock

15

CARBURETOR VM30-213 - Call your local BRP dealership

403138774

—
Out of stock

16

Carburetor Adaptor

512059478

2
Out of stock

17

GEMI CLAMP - Call your local BRP dealership

293650151

—
Out of stock

18

Gemi Clamp | Not Shown

512059834

2
Out of stock

20

1

$37.66

In stock

21

Spark Plug Decal

516000986

—
Out of stock

22

Starter Grip

572084400

1
Out of stock

23

Handle Ass'y | Includes 3820 to 3820a

512061251

1
Out of stock

24

Throttle Housing

512060603

1
Out of stock

25

Lever Pin

414438700

1
Out of stock

26

Flat Washer M5, Stainless

234051600

1
Out of stock

27

Circlip | Model-RS

414439000

1
Out of stock

28

Socket Set Screw M8 X 10

414440800

1
Out of stock

29

Emergency Stop Switch | Includes 91 to 91a

515177362

1
Out of stock

30

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

—
Out of stock

31

Plate

512060390

1
Out of stock

32

THROTTLE CABLE - Call your local BRP dealership

512059973

—
Out of stock

33

Tie-Rap 180 mm

414115200

1
Out of stock

34

Flat Washer 8 mm, Nylon

234081100

1
Out of stock

35

Circlip

414753500

1
Out of stock

36

Circlip

414274500

1
Out of stock

37

1

$37.66

In stock

38

CHOKE CABLE - Call your local BRP dealership

512059914

1
Out of stock

39

Plastic Nut

512060671

1
Out of stock

40

ROPE GUIDE - Call your local BRP dealership

512059535

—
Out of stock

41

TUBE - Call your local BRP dealership

512059536

—
Out of stock

42

Polyurethane Hose 10000Mm Long

219704410

1
Out of stock

43

Elbow Male Connector

414580600

1
Out of stock

44

T-Fitting

572045500

1
Out of stock

45

1

$79.97

In stock

46

Calibrated Module

512059950

—
Out of stock

47

Hex. Flange Screw M6 X 20

207662044

2
Out of stock

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

2
Out of stock
