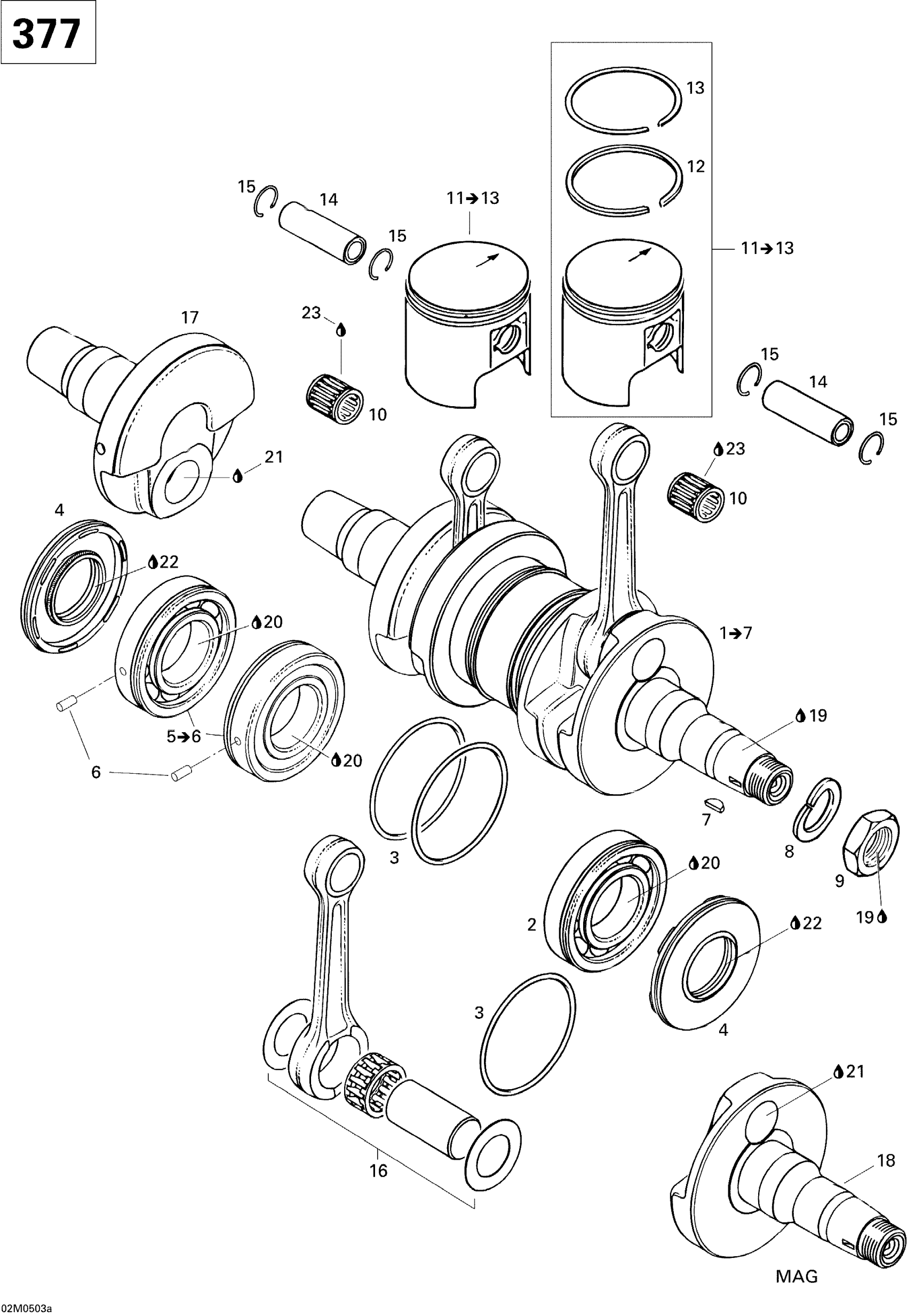

Ski-Doo GTX 380F, 2005 01- Crankshaft And Pistons 377 Diagram

#

Description
Price

1

Crankshaft | Includes 1 to 7

420889630

Unavailable

1

REBUILD-CRANKSHAFT 377-443 97 - Call your local BRP dealership

421000154

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

6

Dowel Pin

420929972

Unavailable

7

Woodruff Key

420246055

$2.43

8

Lock Washer, 22 mm

420945759

$1.90

9

Hex. Nut, M22 X 1.5

420842239

$17.53

10

Needle Bearing

420932904

$15.89

11

PISTON ASS'Y, 61.93 MM - Call your local BRP dealership | Includes 11 to 13

420890060

Unavailable

11

PISTON 62.18 MM, 1ST OVERSIZE - Call your local BRP dealership | Includes 11 to 13

420890061

Unavailable

11

PISTON 62.43 MM, 2ND OVERSIZE - Call your local BRP dealership | Includes 11 to 13

420890062

Unavailable

12

RECTANGULAR RING, 62.0 MM - Call your local BRP dealership

420915895

Unavailable

12

Rectangular Ring, 62.25 mm

420915896

Unavailable

12

RECTANGULAR RING, 62.5 MM - Call your local BRP dealership

420915897

Unavailable

13

SEMI-TRAPEZ RING, 62.0 MM - Call your local BRP dealership

420215215

Unavailable

13

SEMI-TRAPEZ RING, 62.25 MM - Call your local BRP dealership

420215216

Unavailable

13

SEMI-TRAPEZ RING, 62.5 MM - Call your local BRP dealership

420215217

Unavailable

14

GUDGEON PIN - Call your local BRP dealership

420916260

Unavailable

15

Piston Circlip

420945735

$4.46

16

Rod Repair Kit

420889634

Unavailable

17

PTO Side Crankshaft

420818204

Unavailable

18

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Sealant Loctite 648

219703000

$45.99

22

Dow Corning 111, 150 g

413707000

$59.99

23

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
