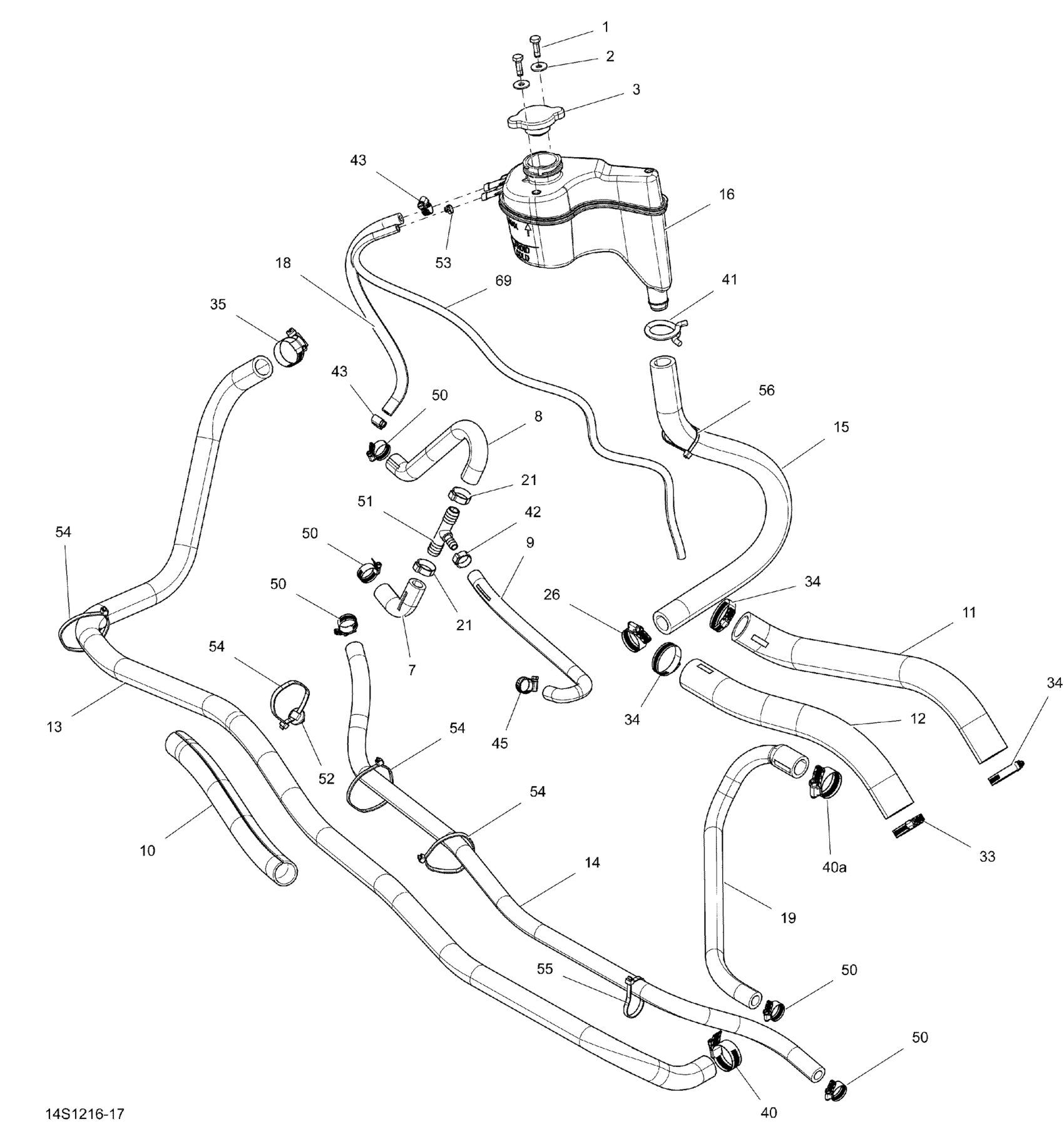

Sea-doo GTX 215, 2012 Cooling System Diagram

#

Description
Price

1

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

2

Flat Washer M6, Stainless

234062600

$0.77

3

Pressure Cap | Includes 720 to 720a

276000100

$25.99

7

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

8

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

9

Formed Hose | Without Catalyst

276000246

$19.49

10

Tubing 25 MM 1000MM Long

219704402

$15.99

11

Radiator Hose This part replaces 276000240.

276000491

$49.99

12

Radiator Hose

276000241

$32.99

13

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

14

Was 276000001 Hose 12.5 mm

219704394

$51.99

15

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

16

Coolant Tank

276000265

$134.99

18

Was 275500549 Hose 1/4"

219704357

$194.99

19

FORMED HOSE - Call your local BRP dealership

276000305

Unavailable

21

Oetiker Clamp

293650012

$7.49

26

Tridon Gear Clamp

293650019

$5.82

33

Tridon Gear Clamp

293650185

$13.99

34

Tridon Gear Clamp

293650185

$13.99

35

Tridon Gear Clamp

293650051

$4.19

40

Tridon Gear Clamp

293650051

$4.19

41

Spring Clamp

293650115

$3.09

42

Oetiker Clamp | Europe

293650030

$5.19

43

Tridon Gear Clamp

293650170

$1.99

45

Tridon Gear Clamp

293650171

$3.09

50

Tridon Gear Clamp

293650172

$3.09

51

T-Fitting

293710116

$17.62

52

Mount Dart

293730040

$1.04

53

Tie Wrap 94 mm | 4X4

293750001

$1.03

54

Tie Wrap 368 mm

293750008

$1.04

55

Tie Wrap 368 mm

293750008

$1.04

56

Tie-Rap 180 mm

414115200

$0.11

69

Polyurethane Hose 10000Mm Long

219704410

$56.99

40a

Tridon Gear Clamp

293650172

$3.09
