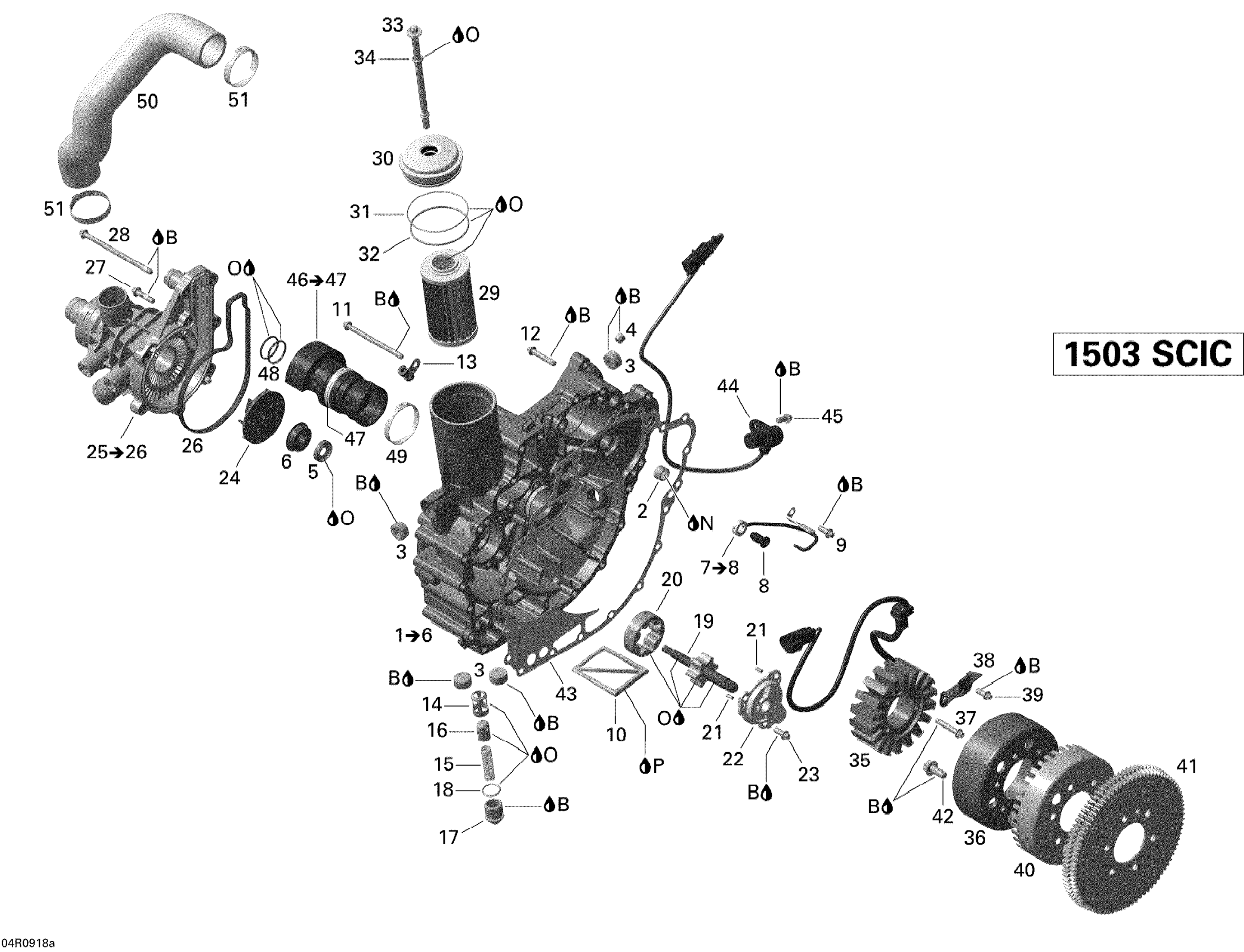

Sea-doo GTX 215, 2009 PTO Cover And Magneto _V1 Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes 1 to 6 This part replaces 420910521.

420481440

$720.49

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Oil Seal

420650315

$11.65

6

Rotary Seal

420650371

$43.49

7

OIl Spray Nozzle Ass'y | Includes 7 to 8

420856877

$58.49

8

Banjo Screw This part replaces 420840180.

420840181

$14.30

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

Oil Sieve

420956950

$16.86

11

Torx Flange Screw M6 X 85

420641228

$7.41

12

Torx Flange Screw M6 X 35

420641258

$3.38

13

Clamp

420853414

$18.49

14

Valve Seat Sleeve

420256606

$29.49

15

Compression Spring

420939410

Unavailable

16

Piston Valve

420256638

$22.99

17

Plug Screw M20 X 1.5

420641052

$37.99

18

O-Ring

420230890

$5.39

19

Pump Shaft Ass'y

420837472

$56.99

20

Oil Pump Rotor 16 mm

420956675

$36.99

21

Needle Pin

420929070

$1.90

22

Oil Pump Cover

420811591

$37.99

23

Torx Flange Screw M6 X 16

420641048

$2.96

24

Impeller

420922801

$17.53

25

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

26

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

27

Torx Flange Screw M6 X 25

420641238

$3.27

28

Torx Flange Screw M6 X 105

420641338

$7.41

29

Oil Filter

420956741

$13.77

30

Oil Filter Cover

420610329

$33.99

31

O-Ring

420850500

$3.17

32

O-Ring

420230923

$3.17

33

Oil Filter Screw Kit

295501207

$39.99

34

O-Ring

420950860

$3.91

35

Stator Plate This part replaces 420889721.

420889726

$319.49

36

Magneto Flywheel

420296900

$461.99

37

Torx Flange Screw M6 X 35

420641258

$3.38

38

Retaining Plate

420926300

$16.37

39

Torx Flange Screw M6 X 16

420641048

$2.96

40

Trigger Wheel

420966851

$18.49

41

Starter Double Gear 87/86T

420834871

$319.99

42

Hex Screw

295501162

$15.28

43

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

44

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

45

Torx Flange Screw M6 X 16

420641048

$2.96

46

Ball Bearing With Bellows | Includes 42 to 43

420832753

$148.49

47

Gear Clamp 46.8-50.0MM

420853023

$7.41

48

O-Ring

420631612

$4.33

49

Gear Clamp

420851653

$7.41

50

Formed Hose This part replaces 420922825.

420922828

$45.49

51

Oetiker Clamp

420851687

$11.65

B

Loctite 243, 10 ml

293800060

$21.49

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
