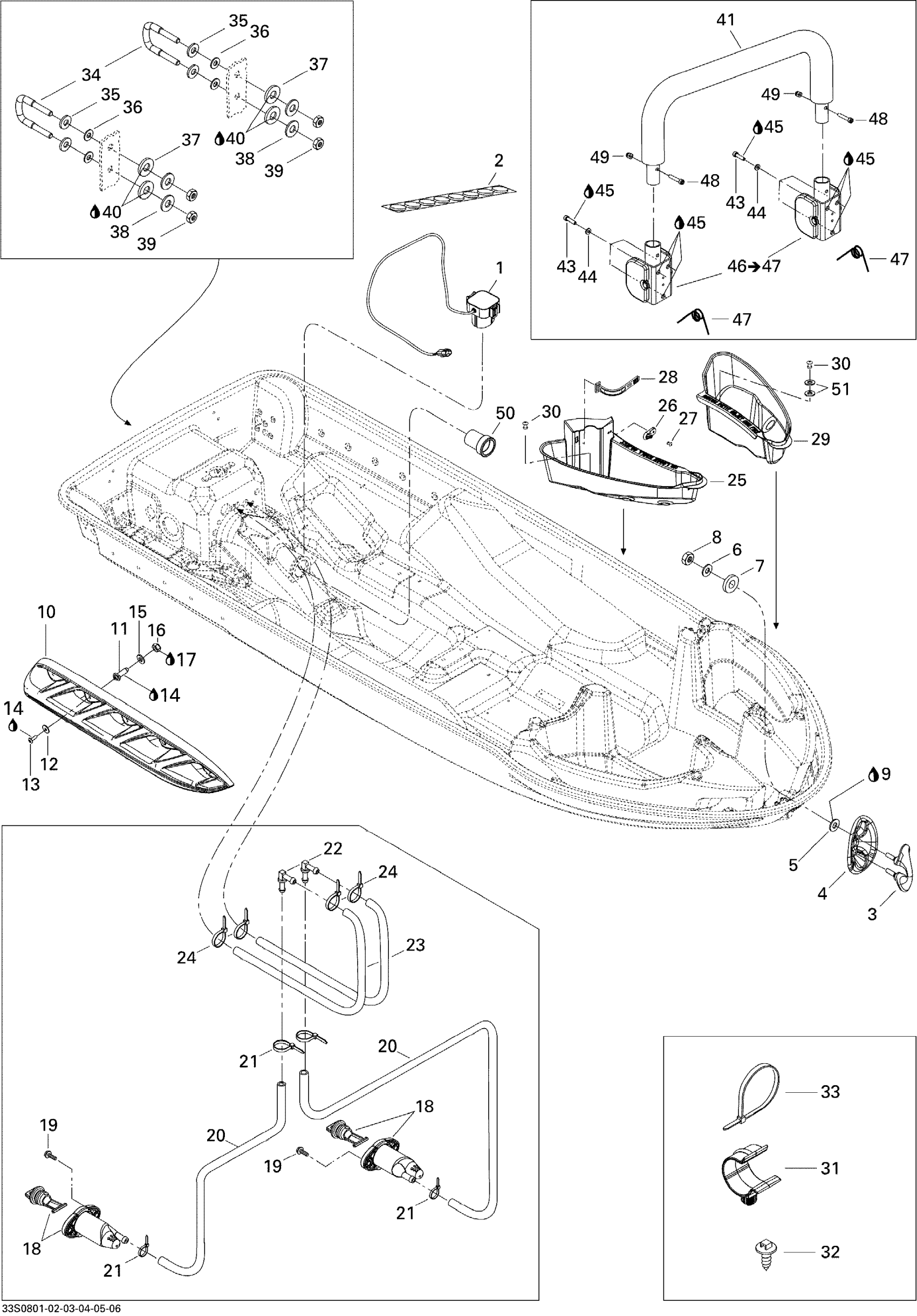

Sea-doo GTX 215, 2008 09- Hull Diagram
#
1
Not Available As Spare Parts
XXX
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Eye-Bow (Black) This part replaces 292000708.
292000452
$42.99
4
Black Shell
292001837
$20.99
5
Stainless, Flat Washer 8 mm
234081600
$0.55
6
Flat Washer 8 mm, Stainless
250200175
$3.06
7
Rubber Washer
293830037
$2.68
8
Hex. Elastic Nut M8 Brass
232581200
$2.22
9
Silicone Sealant 51388, 300 ml
296000309
$36.99
10
RH Sponson
292001878
$93.99
10
LH Sponson
292001877
$93.99
11
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
12
Flat Washer M6.6 X 22
250200022
$2.72
13
TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership
250000299
Unavailable
14
Silicone Sealant 51388, 300 ml
296000309
$36.99
15
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
16
NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership
250100078
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
Drain Plug
292001252
$36.99
19
Hex. Screw 10-14 X 7/8”
211000023
$3.59
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
Tie Wrap 94 mm | 4X4
293750001
$1.03
22
ELBOW FITTING 90 - Call your local BRP dealership
293710117
Unavailable
23
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
RH Storage Tray
292001158
Unavailable
26
Not Available As Spare Parts
XXX
Unavailable
27
Not Available As Spare Parts
XXX
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
LH STORAGE TRAY - Call your local BRP dealership
292001159
Unavailable
30
RIVET 1/4 X 1/2 - Call your local BRP dealership
293150169
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Mount Dart
293730040
$1.04
33
Tie Wrap 368 mm
293750008
$1.04
33
Tie-Rap 180 mm
414115200
$0.11
34
U-Clamp
292000933
$59.49
35
Flat Washer M8.5 x 18
293050001
$3.07
36
Flat Washer 8 mm, Nylon
234081100
$1.39
37
Rubber Washer
293830037
$2.68
38
Flat Washer 8 mm, Stainless
250200175
$3.06
39
Hex. Elastic Nut M8 Brass
232581200
$2.22
40
Silicone Sealant 51388, 300 ml
296000309
$36.99
41
LADDER TUBE ASS'Y - Call your local BRP dealership
292001038
Unavailable
43
Socket Head Screw M6 X 25, Scotch Grip
250000076
$1.69
44
Stainless Flat Washer M6
234061600
$0.33
45
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
46
STAIR SUPPORT - Call your local BRP dealership | Includes 39 to 40
292001115
Unavailable
47
RECALL SPRING - Call your local BRP dealership
292000541
Unavailable
48
Socket Head Screw din 912a2 Scotch Grip
250000288
$2.11
49
Nut M6 | Model-Australie, Brezil, Europe
232361600
$4.34
50
HULL INSERT, 50 MM - Call your local BRP dealership
292000974
Unavailable
51
Flat Washer
250200069
Unavailable
