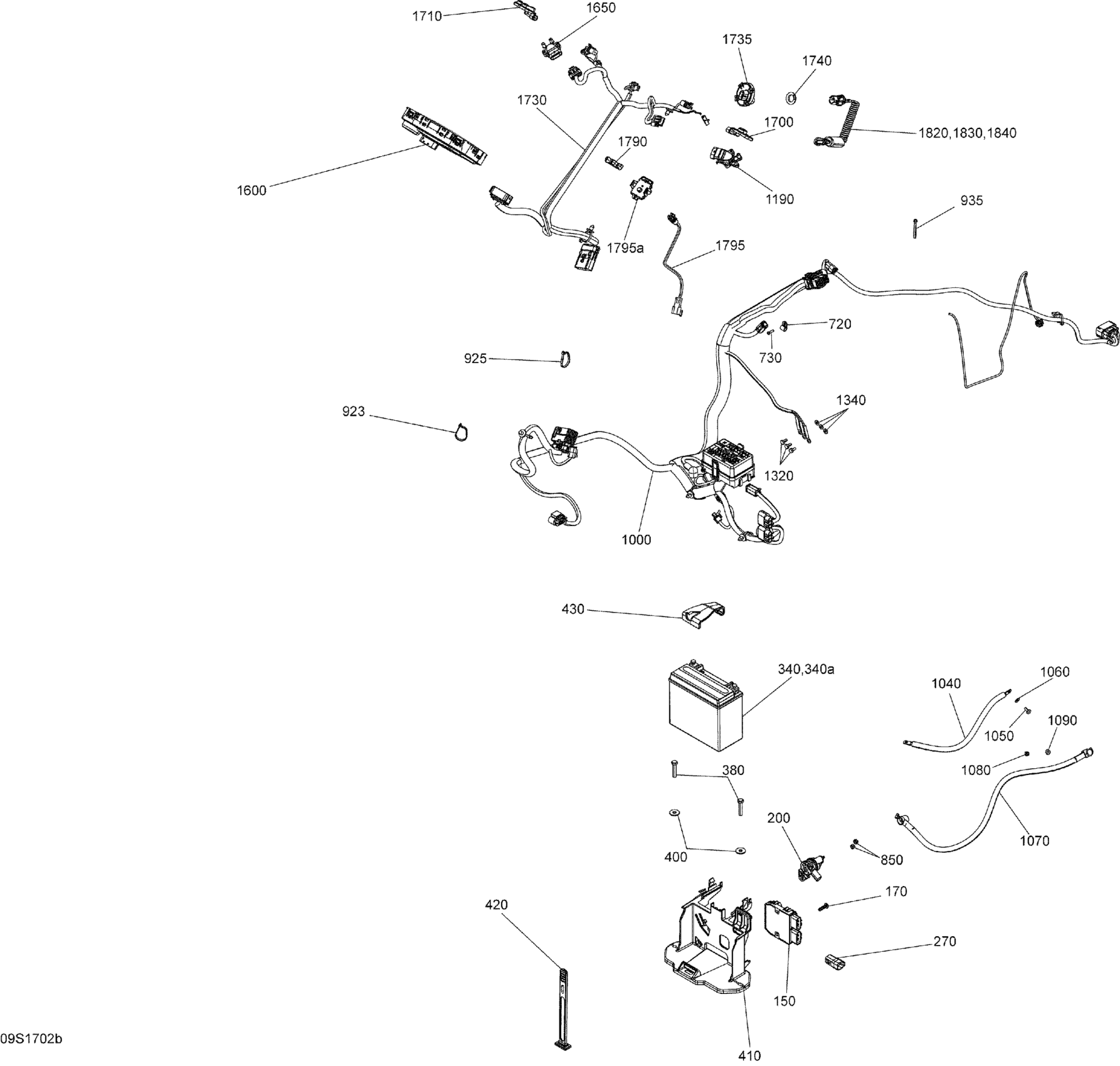

Sea-doo GTX, 2017 Electrical System - Model without Suspension Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

Torx Screw Plastite M6

250000466

$6.45

Starter Relay

278003012

$40.27

Diagnostic Connector

278002704

$17.88

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Hex. Screw M8 X 40

207184060

$2.12

Flat Washer 8 mm, Stainless

234082600

$2.27

Batt. Support | Except Engine 900HO ACE

278003136

$26.09

Strap

269502417

$16.39

Clip

278003521

$16.39

Hose Clamp

293650257

$5.00

Flange Torx Screw K40 X 16

250000287

$2.00

Elastic Stop Nut M6, Brass

232561200

$4.03

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

Tie Rap, 533 mm

293750047

$1.84

Main Harness

278003333

$1,113.40

Main Harness

278003337

$591.01

Cable Ground

278003211

$35.79

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Stainless Flat Washer M6

234061600

$0.28

Starter Cable

278003369

$35.79

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless Flat Washer M6

234061600

$0.28

LH Throttle Sensor

278002284

$108.18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

Stainless Flat Washer M6

234061600

$0.28

LCD Gauge | Model GTX LTD

278003533

$927.58

LCD Gauge | Model GTI

278003503

$897.73

Throttle Position Sensor

278002283

$104.99

Switch LH VTS/Sport/Eco | Package STD

278002767

$116.39

Switch LH Sport/Eco

278002768

$76.84

Switch RH Mode/Set

278002602

$115.64

Steering Harness Ass'y

278003265

$282.06

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

Safety Nut (DESS Switch)

278002963

$3.12

Not Available As Spare Part - Friction Washer

Unavailable

-Sensor Simulator O.T.A.S. Ass'y | Model GTI Engine 130, 155

278003615

$93.25

Safety Lanyard Ass'y, RFID

278003400

$67.13

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$67.13
