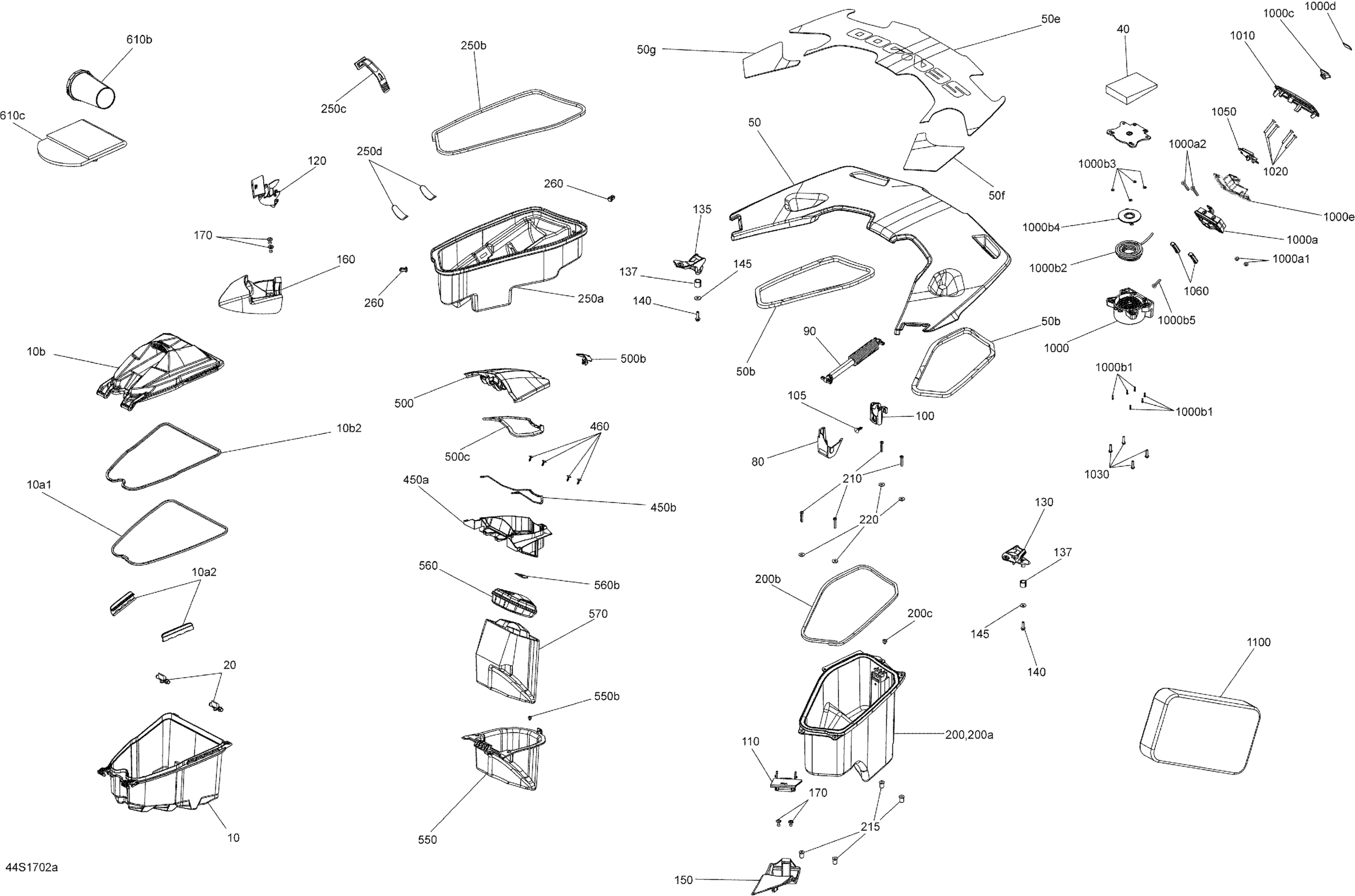

Sea-doo GTX, 2017 Storage Compartments - Model with Suspension Diagram

Storage Bin Ass'y | Includes 10a to 10a2

264000118

$59.77

Gasket 1000Mm Long

219704374

$1.65

Clip

269501609

$12.97

Storage Bin Cover Ass'y | Includes 10b to 10b2

264000120

$31.17

NEOPRENE SEAL - Call your local BRP dealership

293250210

Unavailable

Latch

264000024

$15.57

Platform Foam | Package LTD

264000025

$13.83

Rear Platform Ass'y | Includes 50 to 50g

264000034

$310.67

Was 293250186 Gasket

219704375

$14.27

Rear Platform Carpet

291002585

$85.12

ANTI SLIP MAT_DECK FL - Call your local BRP dealership

264000040

$7.34

ANTI SLIP MAT_DECK FR - Call your local BRP dealership

264000041

$7.34

Stiffener

264000092

$4.15

Shock Ass'y

264000099

$35.07

STIFFENER - Call your local BRP dealership

264000093

Unavailable

Black, Dart

293730006

$0.81

LH Latch

264000020

$24.02

RH Latch

264000021

$24.02

LH PIVOT SUPPORT - Call your local BRP dealership

264000003

Unavailable

RH PIVOT SUPPORT - Call your local BRP dealership

264000032

Unavailable

SPACER - Call your local BRP dealership

264000042

Unavailable

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

Flat Washer M6, Stainless

234062600

$0.64

LH LATCH BASE, BLACK - Call your local BRP dealership

264000055

Unavailable

RH LATCH BASE, BLACK - Call your local BRP dealership

264000056

Unavailable

Pop Rivet 3/16"

293150123

$3.43

LH Tray | Includes 200 to 200c

264000097

$57.17

LH Tray | Includes 200 to 200c

264000097

$57.17

Gasket 3000Mm Long

219704378

$22.07

Rubber Bumper

293830005

$5.33

Socket Head Screw M6 X 35

205463560

$1.64

Expansion Nut M6 X 1

250100150

$1.74

Flat Washer M6, Stainless

234062600

$0.64

RH Rear Tray

264000002

$27.92

Gasket 3000Mm Long

219704378

$22.07

Strap

269502417

$14.27

TRAY PAD - Call your local BRP dealership

264000043

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

GLOVE BOX EXT. - Call your local BRP dealership

264000112

Unavailable

SEAL 1000MM LONG - Call your local BRP dealership

219704381

Unavailable

Black, Dart

293730011

$0.79

Glove Door Ass'y | Includes 500 to 500c

264000111

$83.05

Black, Latch

264000164

$11.40

GASKET - Call your local BRP dealership

293250367

Unavailable

GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 550 to 550b

264000031

Unavailable

Rubber Bumper

293830005

$5.33

REMOVABLE CASE ASS'Y - Call your local BRP dealership | Package LTD

291002814

Unavailable

SEA-DOO DECAL - Call your local BRP dealership | Package LTD

291002793

Unavailable

PROTECTION LINER - Call your local BRP dealership | Package LTD

291002761

Unavailable

Safety Kit | Package LTD

295100330

$18.82

Bag | Package LTD

269001936

$69.97

Retractable Rope Ass'y | Includes 2300 to 2300e

291004019

$152.28

JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2

291003023

Unavailable

Elastic Stop Nut M6, Brass

232561200

$3.51

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

Oval Philipp Screw KA30 x 12

241731260

$1.26

ROPE 3/16 3000MM LONG - Call your local BRP dealership

219704363

Unavailable

Flat Washer M3, Stainless

234032600

$0.54

INSIDE COVER - Call your local BRP dealership

291002762

Unavailable

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

BUTTON - Call your local BRP dealership

291002726

Unavailable

Button Cap

291002754

$5.08

ROPE GUIDE - Call your local BRP dealership

291002729

Unavailable

REAR REWIND CAP - Call your local BRP dealership | Model GTX 155

264000033

Unavailable

REAR REWIND FRAME - Call your local BRP dealership | Package LTD

291002725

Unavailable

SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership

205364560

Unavailable

Hex. Screw 10-14 X 7/8”

211000023

$2.91

UNDER CAM - Call your local BRP dealership

291002727

Unavailable

DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership

291002755

Unavailable

Cover | Package LTD

295100718

$324.97
