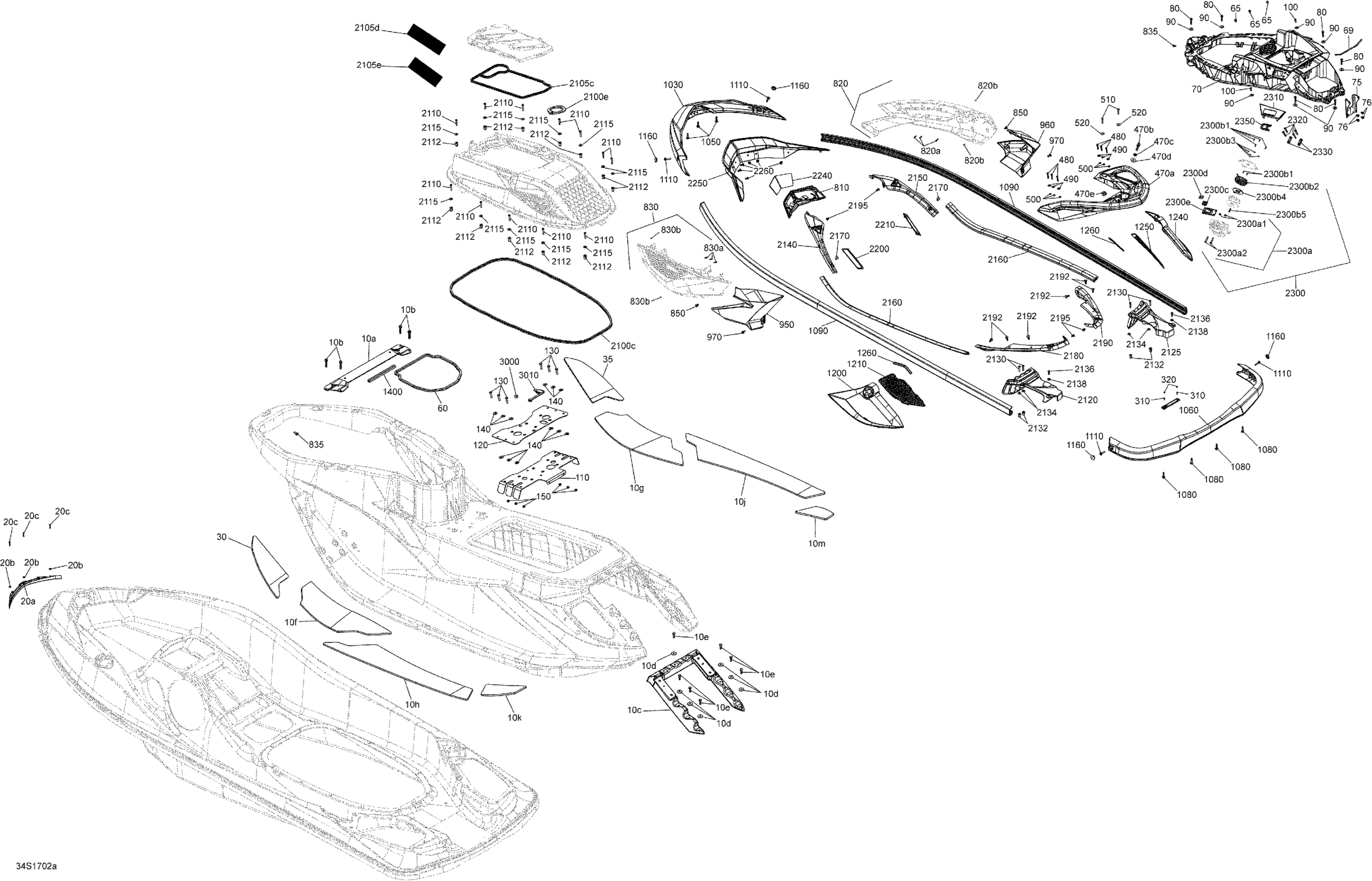

Sea-doo GTX, 2017 Body - GTX S 155, GTX LTD S 260 Diagram

UPPER DECK ASS - Call your local BRP dealership | Includes 10 to 10m

291004211

Unavailable

Module Stifner

291002778

$134.58

Plastite Hex. Screw M6.8 X 35

243163560

$3.61

REAR PIVOT ASS'Y - Call your local BRP dealership

279000214

Unavailable

Flat Washer M6.6 X 22

250200022

$1.87

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

LH CENTER FRONT CARPET - Call your local BRP dealership

291003463

Unavailable

RH CENTER FRONT CARPET - Call your local BRP dealership

291003464

Unavailable

LH CENTER REAR CARPET - Call your local BRP dealership

291003465

Unavailable

RH CENTER REAR CARPET - Call your local BRP dealership

291003466

Unavailable

ANTI SLIP MAT REAR L - Call your local BRP dealership

291002775

Unavailable

ANTI SLIP MAT REAR R - Call your local BRP dealership

291002776

Unavailable

DECK NOSE - Call your local BRP dealership

291002818

Unavailable

Flat Washer 4 mm, Stainless

234042600

$0.92

Hex. Flange Screw K40 X 25

241142560

$2.17

ANTI SLIP MAT FL - Call your local BRP dealership

291002607

Unavailable

RH Front Carpet

291002608

$6.83

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

Rubber Bumper

293830005

$5.33

SEAL 1000MM LONG - Call your local BRP dealership

219704381

Unavailable

Front Module

291004595

$259.20

SEAT PIVOT - Call your local BRP dealership

291004210

Unavailable

Pop Rivet 3/16

293150186

$1.63

Plastite Hex. Screw M6.8 X 35

243163560

$3.61

Flat Washer 8 mm, Stainless

234082600

$1.98

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

LOWER CENTRAL REINFORCEMENT - Call your local BRP dealership

291003306

Unavailable

UPPER REINFORCEMENT - Call your local BRP dealership

291003416

Unavailable

Hex. Screw M6 X 25

207162560

$1.22

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Rivet 1/8"

293150016

$0.29

Black, Snap Cap

293000014

$0.85

Black, Rear Handle

291004621

$76.02

Seat Stud

291003878

$46.12

Hex. Jam Nut M10

232100600

$1.85

Flat Washer 10 mm, Stainless

234002600

$1.85

Elastic Nut M10 Housing

271001732

Unavailable

Hex. Screw M6 X 30

207063060

$1.51

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.51

Flat Washer M6.6 X 22

250200022

$1.87

FRONT GRID - Call your local BRP dealership

269501797

Unavailable

FRONT RH COSMETIC ASS - Call your local BRP dealership | Package LTD

291004202

Unavailable

Hex. Flange Screw K40 X 16

241141660

$1.25

Push Nut | Not shown

211100002

$0.83

FRONT RH COSMETIC ASS - Call your local BRP dealership | Package STD

291004249

Unavailable

FRONTLH COSMETIC ASS - Call your local BRP dealership | Package LTD

291004205

Unavailable

Hex. Flange Screw K40 X 16

241141660

$1.25

Push Nut | Not shown

211100002

$0.83

FRONTLH COSMETIC ASS - Call your local BRP dealership | Package STD

291004251

Unavailable

HEX. FORMING SCREW M6 X 16 - Call your local BRP dealership

211000106

Unavailable

Pop Rivet 3/16"

293150123

$3.43

LH COSMETIC - Call your local BRP dealership This part replaces 291004256.

291004642

Unavailable

RH Cosmetic

291004258

$133.82

Pop Rivet 3/16"

293150123

$3.43

Front Bumper

291004275

$63.67

Hexagonal Cap Screw M6 X35

250000399

$3.61

Rear Bumper

291004274

$96.17

Hexagonal Cap Screw M6 X35

250000399

$3.61

Black, Side Bumper

291004451

$47.42

Hexagonal Cap Screw M6 X35

250000399

$3.61

Bumber Cap | Except Cab Package

291002744

$10.21

LH LATERAL REAR TRIM - Call your local BRP dealership

291002739

Unavailable

LH Rear Side Grille

291002740

$16.22

RH Lateral Rear Trim

291002741

$21.42

RH Rear Side Grille

291002742

$16.22

Gasket, Neoprene 2000Mm Long

219704476

$12.64

Was 271000110 Protection Trim

219704353

$15.03

DECK EXTENSION ASS'Y - Call your local BRP dealership | Includes 2100 to 2100e

291004056

Unavailable

Lip Seal

293250185

$21.42

LIP SEAL - Call your local BRP dealership

293250209

Unavailable

Vent Adaptor | Includes 2105 to 2105e

295501145

$81.22

LIP SEAL 2000MM LONG - Call your local BRP dealership

219704376

Unavailable

WARNING DECAL, GASOLINE VAPOR - Call your local BRP dealership

219903090

Unavailable

CAUTION DECAL, ENGINE OIL - Call your local BRP dealership

219903084

Unavailable

Socket Head Screw M6 X 35

205463560

$1.64

Expansion Nut M6 X 1

250100150

$1.74

Flat Washer M6, Stainless

234062600

$0.64

LH Rear Grille

291002658

$16.22

RH REAR GRILL - Call your local BRP dealership

291002698

Unavailable

Socket Head Screw M6 X 35

205463560

$1.64

Expansion Nut M6 X 1

250100150

$1.74

Flat Washer M6, Stainless

234062600

$0.64

Hex Screw M6 X 30

250000681

$5.54

Flat Washer M6, Stainless

234062600

$0.64

LH Front Scraper Joint

291002837

$27.66

RH FRONT SCRAPER JOINT - Call your local BRP dealership

291002838

Unavailable

MID JOINT - Call your local BRP dealership

291003818

Unavailable

Black Dart

293730010

$0.81

LH REAR SCRAPER JOINT - Call your local BRP dealership

291002696

Unavailable

RH REAR SCRAPER JOINT - Call your local BRP dealership

291002697

Unavailable

Black, Dart

293730006

$0.81

Pop Rivet 3/16

293150186

$1.63

LH FOOTREST COVER - Call your local BRP dealership

291002694

Unavailable

RH FOOTREST COVER - Call your local BRP dealership

291002695

Unavailable

GASKET - Call your local BRP dealership

293250231

Unavailable

Deflector

291004280

$66.27

Pop Rivet 3/16"

293150123

$3.43

Retractable Rope Ass'y | Includes 2300 to 2300e

291004019

$152.28

JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2

291003023

Unavailable

Elastic Stop Nut M6, Brass

232561200

$3.51

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

Oval Philipp Screw KA30 x 12

241731260

$1.26

ROPE 3/16 3000MM LONG - Call your local BRP dealership

219704363

Unavailable

Flat Washer M3, Stainless

234032600

$0.54

INSIDE COVER - Call your local BRP dealership

291002762

Unavailable

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

BUTTON - Call your local BRP dealership

291002726

Unavailable

Button Cap

291002754

$5.08

ROPE GUIDE - Call your local BRP dealership

291002729

Unavailable

FRONT REWINDER COVER - Call your local BRP dealership

291002724

Unavailable

FRONT REWINDER CAP - Call your local BRP dealership

291002756

Unavailable

SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership

205364560

Unavailable

DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership

291002755

Unavailable

UNDER CAM - Call your local BRP dealership

291002727

Unavailable

Cap

572051500

$5.38

CAP - Call your local BRP dealership

293000118

Unavailable
