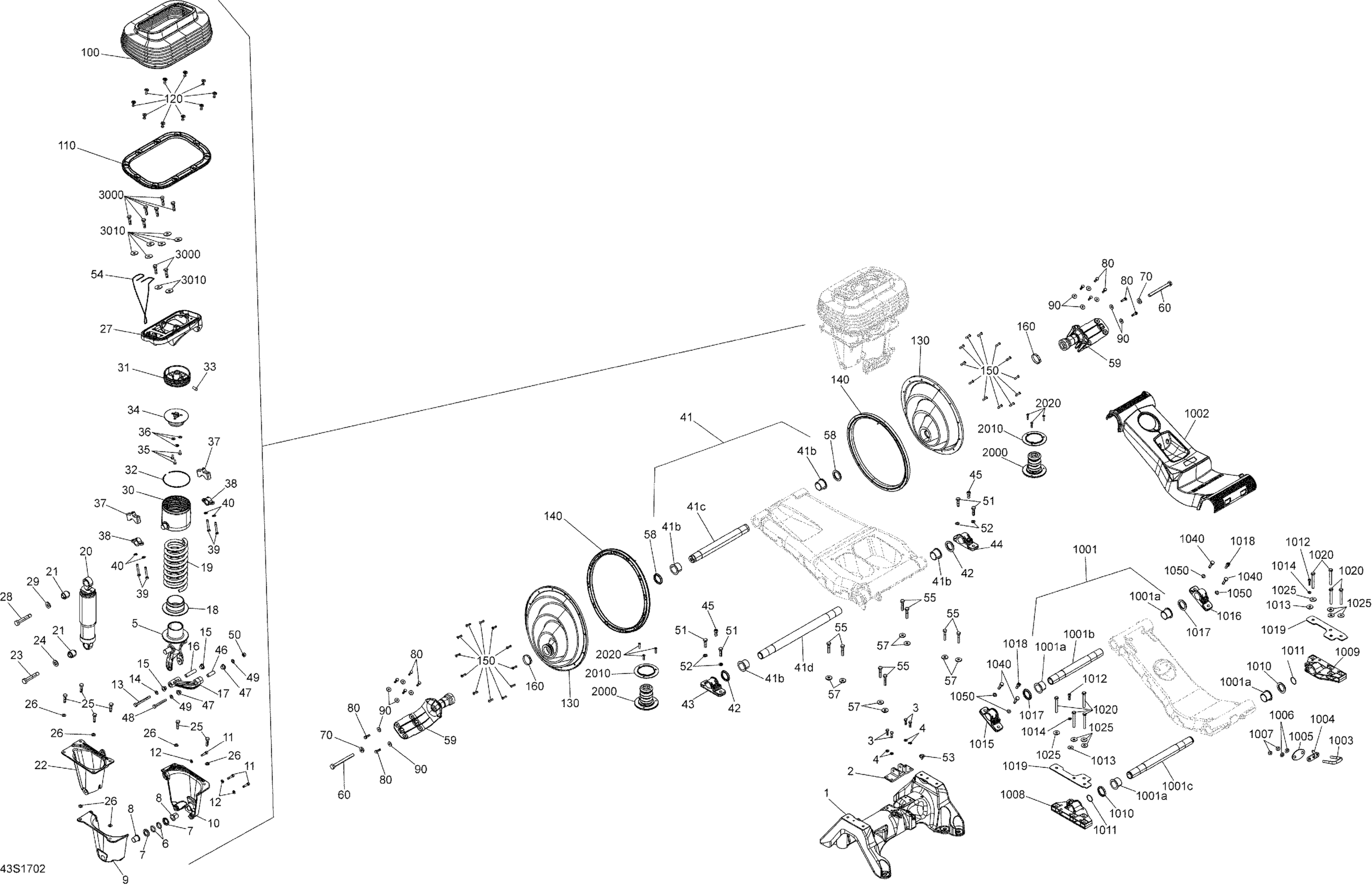

Sea-doo GTX, 2017 Suspension - GTX S 155, GTX LTD S 260 Diagram

#

Description
Price

1

FRONT ARM BASE - Call your local BRP dealership

279000316

Unavailable

2

BRACKET - Call your local BRP dealership

279000155

Unavailable

3

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

4

Stainless Flat Washer M6

234061600

$0.28

5

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000188

Unavailable

6

O-RING - Call your local BRP dealership

279000104

Unavailable

7

BUSHING - Call your local BRP dealership

279000105

Unavailable

8

BUSHING - Call your local BRP dealership

279000103

Unavailable

9

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

10

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

11

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

12

Stainless Flat Washer M6

234061600

$0.28

13

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

14

Flat Washer M8, Stainless

234080600

$1.43

15

BUSHING - Call your local BRP dealership

279000137

$7.10

16

SPACER - Call your local BRP dealership

279000153

Unavailable

17

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

18

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000182

Unavailable

19

PAINTED SPRING - Call your local BRP dealership

279000219

Unavailable

20

SHOCK - Call your local BRP dealership

279000218

Unavailable

21

Bushing

279000051

$75.34

22

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

23

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

24

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

25

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

26

Flat Washer M8, Stainless

234080600

$1.43

27

Shock Upper Holder

279000057

$177.58

28

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

29

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

30

Upper Spring Holder

279000189

$261.16

31

UPPER SPRING HOLDER - Call your local BRP dealership

279000191

Unavailable

32

Retaining Ring

279000198

$12.52

33

PLUNGER - Call your local BRP dealership

279000205

Unavailable

34

Upper Spring Protector

279000183

$8.57

35

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

36

Stainless Flat Washer M6

234061600

$0.28

37

E-COAT SPACER - Call your local BRP dealership

279000206

Unavailable

38

CLAMP - Call your local BRP dealership

279000106

Unavailable

39

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.73

40

Stainless Flat Washer M6

234061600

$0.28

41>41d

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

41b

Bushing

279000019

$22.36

41c

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

41d

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

42

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

43

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

44

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

45

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

46

SPACER - Call your local BRP dealership

279000138

Unavailable

47

BUSHING - Call your local BRP dealership

279000137

$7.10

48

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

49

Flat Washer M8, Stainless

234080600

$1.43

50

Hex. Elastic Nut M8 Brass

232581200

$1.48

51

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

52

Flat Washer M8, Stainless

234080600

$1.43

53

Mount Dart

293730040

$0.99

54

Retaining Cable

708200118

Unavailable

55

HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership

250000729

Unavailable

57

Flat Washer

279000336

$9.58

58

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

59

FOOT REST - Call your local BRP dealership

279000306

Unavailable

60

Hex. Screw M10 X 110, Scotch Grip

230201060

$12.10

70

Flat Washer

211200051

$1.54

80

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

90

Flat Washer M6

250200115

$3.12

100

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

110

Retaining Plate

279000010

$16.39

120

Pop Rivet 3/16"

293150123

$3.94

130

Lateral Bellows

279000009

$72.36

140

Retaining Ring

279000011

$15.64

150

Pop Rivet 3/16"

293150176

$2.09

160

Oetiker Clamp

293650242

$7.90

1001>1001c

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

1001a

Bushing

279000019

$22.36

1001b

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

1001c

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

1002

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

1003

U-Clamp

292000933

$37.28

1004

Hook | Package LTD

291002351

$67.13

1005

Black, Finition Plate

291001386

$9.84

1006

Stainless, Flat Washer 8 mm

234081600

$0.52

1007

Hex. Elastic Nut M8 Brass

232581200

$1.48

1008

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

1009

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

1010

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

1011

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

1012

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

1013

Flat Washer 10 mm, Stainless

234001600

$1.04

1014

Stainless Flat Washer M6

234061600

$0.28

1015

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

1016

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

1017

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

1018

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

1019

RETAINING PLATE - Call your local BRP dealership

279000114

$13.42

1020

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

1025

Flat Washer 8 mm, Stainless

234082600

$2.27

1040

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

1050

Flat Washer M8, Stainless

234080600

$1.43

2000

RUBBER BUMPER - Call your local BRP dealership

279000193

Unavailable

2010

Retaining Ring

279000115

$11.69

2020

Pop Rivet 3/16"

293150005

$0.46

3000

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

3010

Flat Washer 8 mm, Stainless

250200175

$1.48
