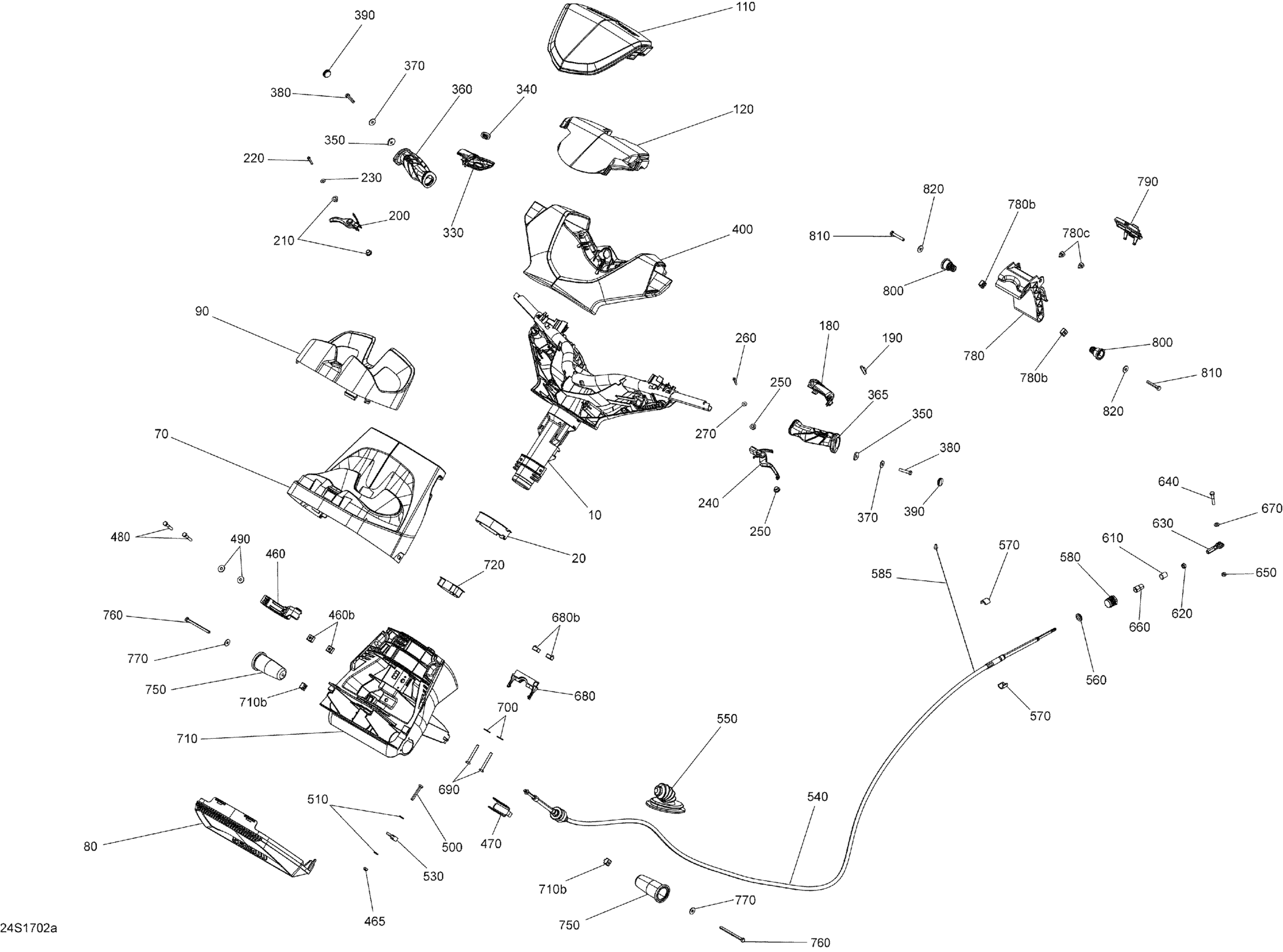

Sea-doo GTX, 2017 Steering - All Models Diagram

#

Description
Price

10

Steering Column

277001963

$381.49

20

Wear Ring

277001653

$12.17

70

Gauge Support

277001953

$61.99

80

Gauge Support Cover

277001613

$28.99

90

Gauge Trim, Black

277001630

$55.99

110

Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach

277001904

$57.99

120

Handlebar Foam

277001921

$91.99

180

Housing Cover LH

277001626

$19.99

180

Housing Cover LH

277001860

$22.49

190

Red, Knob Switch

277001887

$9.69

200

Throttle Handle

277001944

$38.99

210

Bushing

293900091

$4.52

220

Hex. Flange Screw K40 X 25

241142560

$2.64

230

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

250

Bushing

293900091

$4.52

260

Hex. Flange Screw K40 X 25

241142560

$2.64

270

Flat Washer 4 mm, Stainless

234042600

$1.15

330

Housing Cover RH

277001625

$19.99

340

Grey Knob Switch

277001888

$11.49

350

Insert Grip Handle

277001863

$8.83

360

Deep Black, RH Handle Grip

277001946

$20.99

365

Deep Black, LH Handle Grip

277001958

$20.99

370

Flat Washer M6, Stainless

234062600

$0.77

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

390

Black, Cap

277000203

$9.39

400

Steering Cover | IBR

277001969

$68.99

460>460b

Support Ass'y | Includes 460 to 460b

277002179

$22.49

460b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

465

Elastic Stop Nut M6, Brass

232561200

$4.23

470

Spacer

277001654

$15.99

480

Hex. Screw M6 X 35

207163560

$1.49

490

Flat Washer M6, Stainless

234062600

$0.77

500

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable

277001602

$285.99

550

Grommet | Model with Suspension

293720083

$20.99

560

Rubber Washer

293830063

$1.90

570

Half Ring

277001527

$10.37

580

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

585

Was 293800013 Loctite 56765

219704454

$65.99

610

Wiper Rod

277001582

$11.11

620

Hex. Nut 1/4"-28

211100056

$0.69

630

Ball Joint

277000775

$51.99

640

Hex. Screw M6 X 35

207063560

$2.22

650

Elastic Stop Nut M6, Brass

232561200

$4.23

660

End Piece

277001583

$14.49

670

Stainless Flat Washer M6

234061600

$0.33

680>680b

Thrust Support Ass'y

277001655

$28.99

680b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

690

Hex. Screw M6 X 50

207165060

$0.92

700

Flat Washer M6, Stainless

234062600

$0.77

710>710b

Steering Support | Includes 710 to 710b

277001942

$114.99

710b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

780>780c

Handle Ass'y | Includes 780 to 780c

277001658

$132.49

780b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

780c

Rubber Bumper

293830005

$8.09

790

LOCK - Call your local BRP dealership

277001616

$18.99

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77
