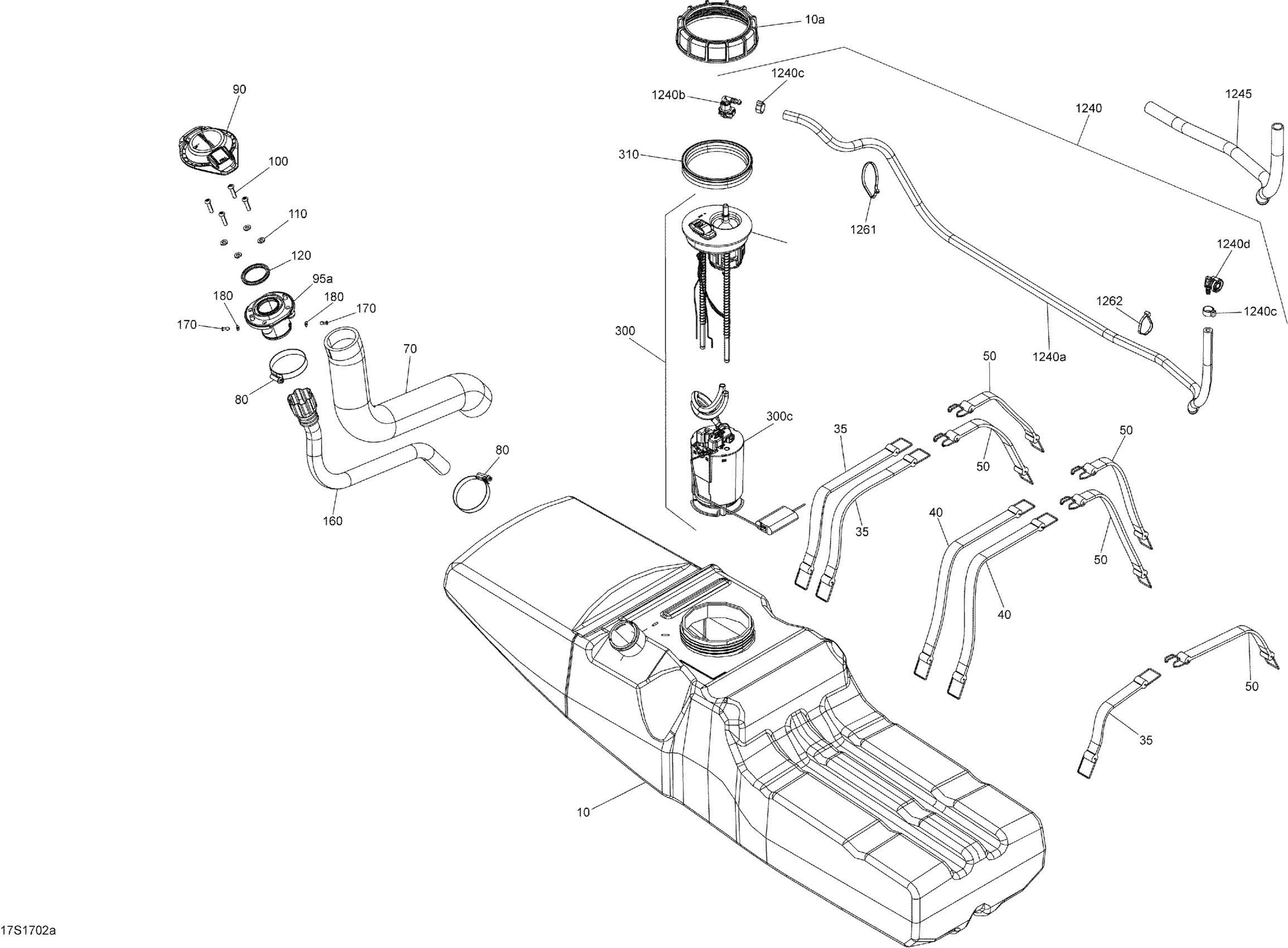

Sea-doo GTX, 2017 Fuel System - Model with Suspension Diagram

#

Description
Price

10>10a

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 10 to 10a

275500783

Unavailable

10a

Special Nut M130

250100062

$21.99

35

Fuel Tank Strap

293850087

$19.99

40

Fuel Tank Strap

293850095

$19.99

50

Fuel Tank Strap

293850094

$22.49

70

Hose

275500919

$90.99

80

Norma Clamp

293650081

$12.18

90

Fuel Cap Ass'y

275500832

$69.99

95a

Fuel Filler Neck

275500848

$39.49

100

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

110

Stainless Flat Washer M6

234061600

$0.33

120

X-Ring

293300139

$23.99

160

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

170

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

180

Flat Washer M3, Stainless

234032600

$0.55

300>300c

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

300a

Sensor Lever

275500780

$224.99

300c

Fuel Filter

270600113

$33.99

310

Gasket

293250173

$18.49

1240a

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

1240b

Quick Disconnect

275500921

$16.49

1240c

Crimp Clamp

293650053

$3.09

1240d

Elbow Fitting 90°

293710105

$14.22

1245

Tubing 16 Mm 1000Mm Long

219704408

$7.49

1261

Tie-Rap 180 mm

414115200

$0.11

1262

Tie Wrap 368 mm

293750008

$1.04
