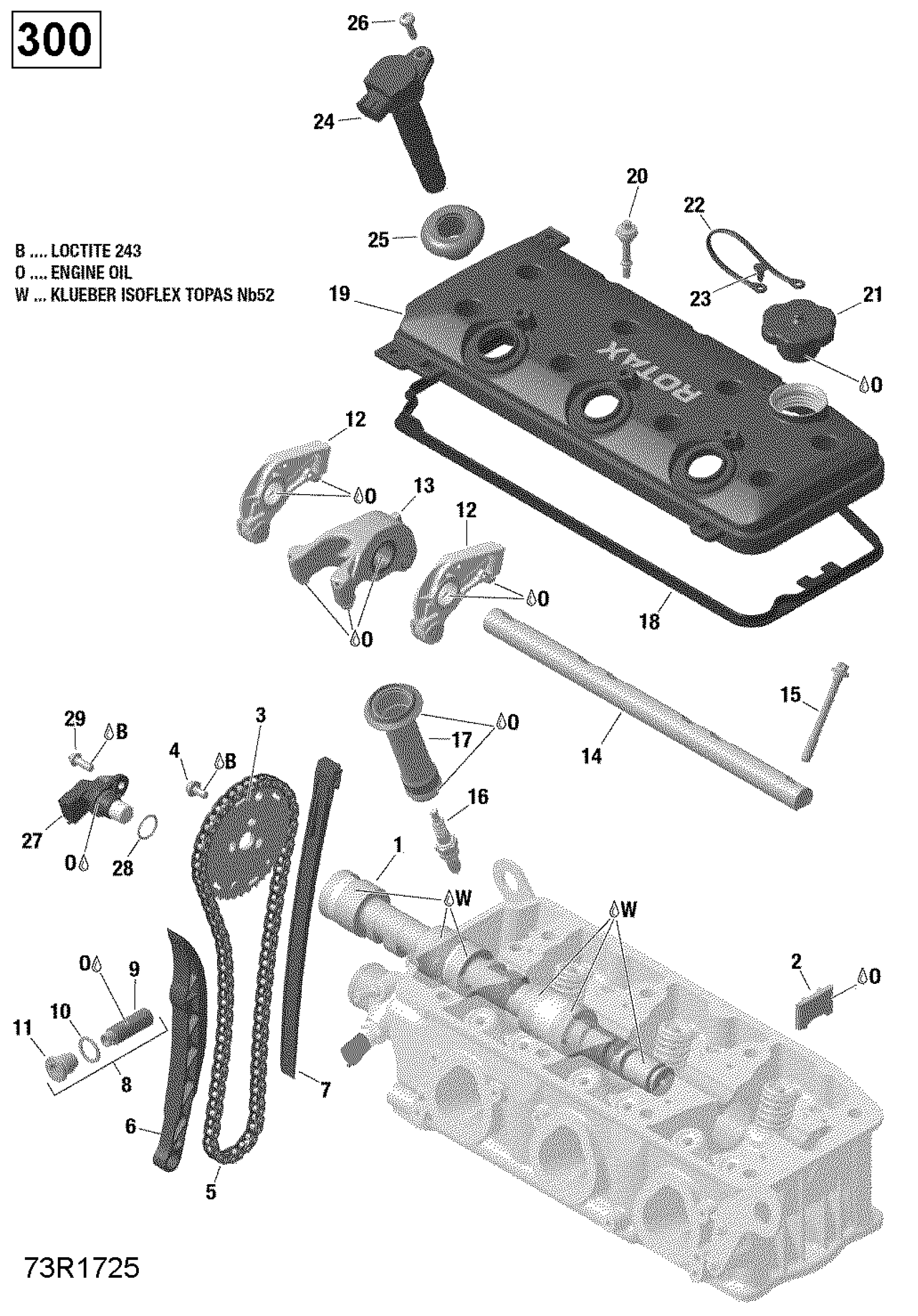

Sea-doo GTX, 2017 Valve Train - 300 Diagram

#

Description
Price

1

Camshaft This part replaces 420837851.

420637780

Unavailable

2

Camshaft Guide

420851694

$31.99

3

Timing Gear, 38 Teeth

420254309

$69.99

4

Torx Flange Screw M6 X 12

420841080

$4.61

5

Camshaft Chain

420898042

$97.49

6

Chain Tension Guide

420236541

$15.89

7

Chain Guide

420236501

$14.28

8>11

Chain Tensionner With Screw | Includes no. 8-11

420236915

$78.49

9

Chain Tensioner

420236910

$41.49

10

Gasket Ring

420430624

$1.89

11

Chain Tensionner With Screw | Includes no. 8-11

420236915

$78.49

12

Rocker Arm, Exhaust

420254329

$137.49

13

Rocker Arm, Inner

420254316

$179.99

14

Rocker Arm, Shaft

420854594

$201.49

15

Torx Screw M8 X 72

420641080

$5.29

16

Spark Plug NGK KR9E-G

296000421

$10.59

17

Spark Plug Pipe

420851754

$27.49

18

Valve Cover Gasket | Included in gasket kit

420950820

$32.99

19

Valve Cover

420911951

$222.49

20

Allen Screw M6 x 30,5

420440561

$4.44

21

Plug Cover Ass'y

420956925

$26.49

22

Retaining Band

420660620

$7.41

23

Push Pin

420201650

$2.32

24>25

Stick Coil | Includes 5 to 6

420666142

$59.99

25

Protection Cap

420201430

$7.51

26

Torx Flange Screw M6 X 20

420441383

$5.40

27>28

Camshaft Position Sensor Ass'y

420664046

$88.99

28

O-Ring

420631890

$5.18

29

Torx Flange Screw M6 X 16

420641048

$2.96
