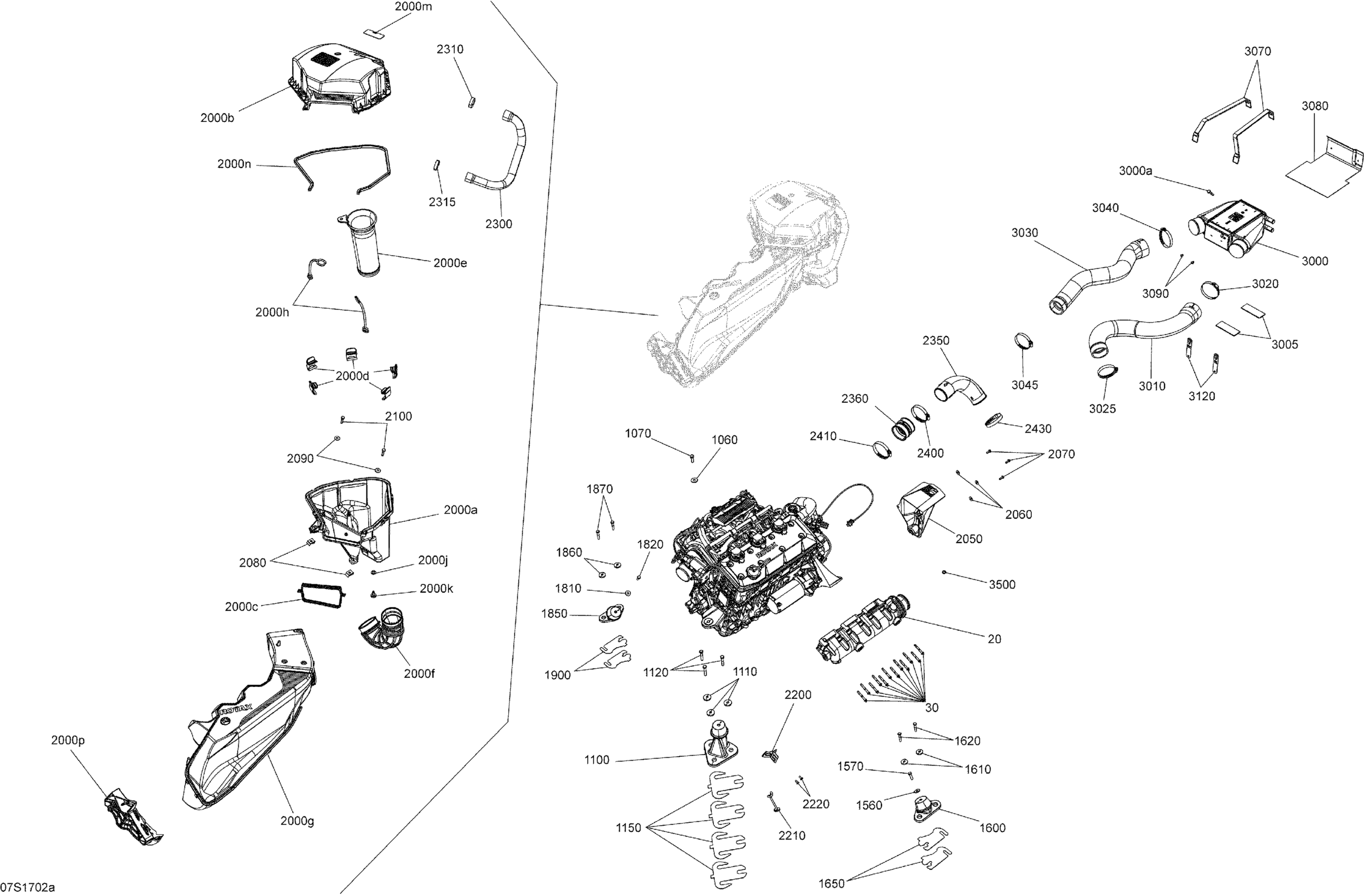

Sea-doo GTX, 2017 Engine - Model with Suspension Diagram

#

Description
Price

20

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

30

Torx Flange Screw M6 X 45

420641198

$4.12

1060

Flat Washer 8 mm, Stainless

234082600

$2.43

1070

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1100

Rubber Mount

270000886

$129.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000770

$16.49

1560

Flat Washer 8 mm, Stainless

234082600

$2.43

1570

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1810

Flat Washer 8 mm, Stainless

234082600

$2.43

1820

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

2000b

Air Silencer Upper

273000249

$61.99

2000c

SEAL - Call your local BRP dealership

293250190

$15.49

2000d

Clip

269501718

$15.89

2000e

Intake Hose

273000359

$48.99

2000f

CONNECTOR HOSE - Call your local BRP dealership

273000257

Unavailable

2000f

CONNECTOR HOSE - Call your local BRP dealership

273000251

Unavailable

2000g

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

2000h

Strap

269501299

$19.49

2000j

GROMMET - Call your local BRP dealership

293720064

Unavailable

2000k

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

2000m

Air Silencer Notice Decal

219903177

Unavailable

2000n

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

2000p

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

2050

AIR BOX SUPPORT - Call your local BRP dealership

270000735

Unavailable

2050

AIR BOX SUPPORT - Call your local BRP dealership

270000791

Unavailable

2060

Flat Washer M6, Stainless

234062600

$0.77

2070

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

2080

Panel Nut M6 X 1

420942108

$14.28

2090

Flat Washer M6, Stainless

234062600

$0.77

2100

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

2200

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

2210

Strap

273000344

$15.99

2220

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2300

FORMED HOSE - Call your local BRP dealership

270000948

$57.99

2310

Tridon Gear Clamp

293650051

$4.19

2315

Tridon Gear Clamp

293650051

$4.19

2350

HOSE INTAKE - Call your local BRP dealership This part replaces 273000276.

273000327

Unavailable

2360

Intake Fitting

273000277

$28.99

2400

Tridon Clamp

293650179

$11.49

2410

Tridon Clamp

293650179

$11.49

2430

Tridon Clamp

293650179

$11.49

3000>3000a

Intercooler | Model GTR

276000397

$476.49

3000a

Anode Zinc

271001942

$18.76

3005

PAD-RUBBER - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830180

Unavailable

3010

Formed Hose | Engine 1503 HO 4-TEC

273000361

$93.99

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Formed Hose | Engine 1503 HO 4-TEC

273000362

$93.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850093

$21.99

3080

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

3090

Black, Dart

293730016

$9.97

3120

HOLDING STRAP - Call your local BRP dealership

270000946

Unavailable

3500

Tie Wrap 142 mm

293750002

$1.25
