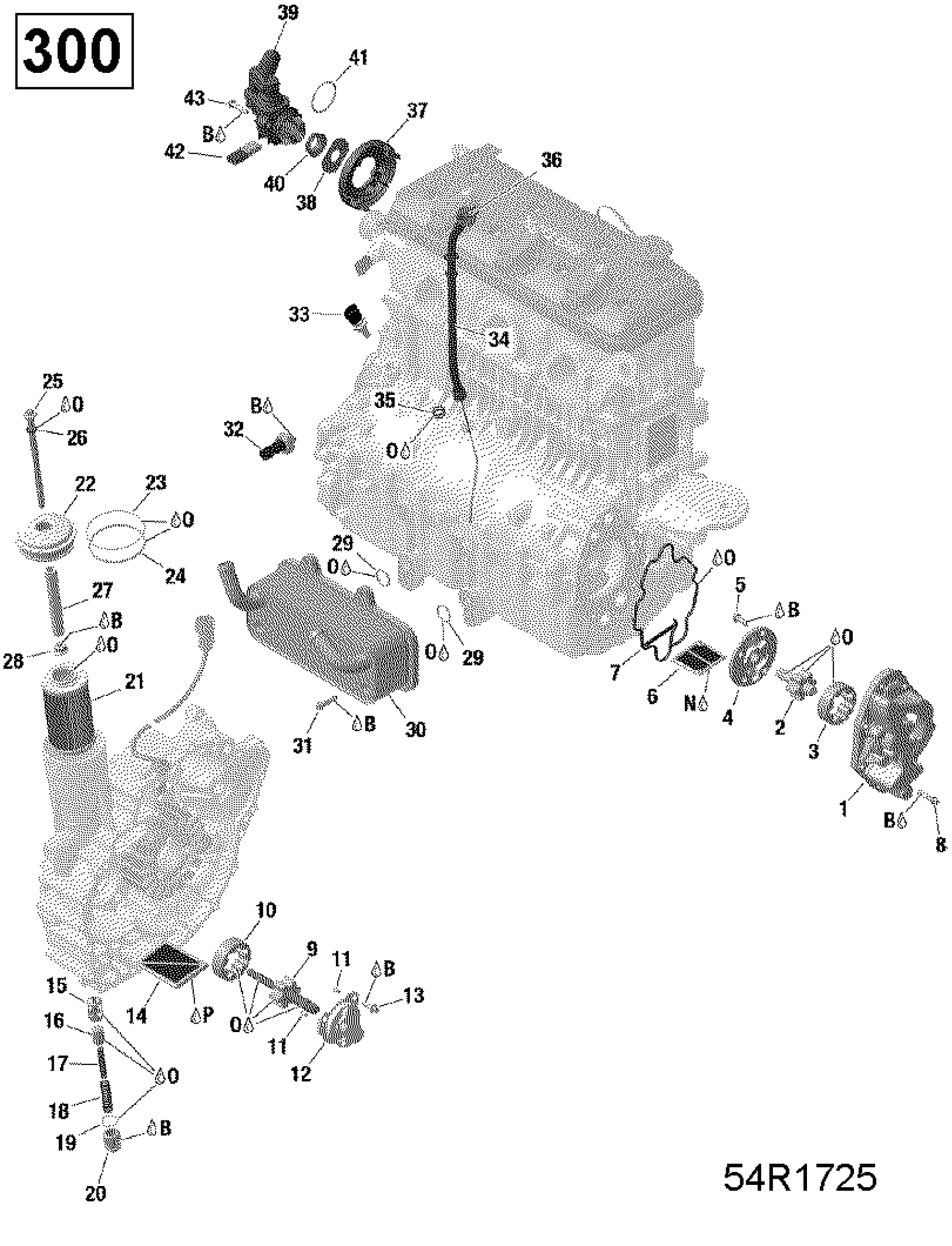

Sea-doo GTX, 2017 Engine Lubrication - 300 Diagram

#

Description
Price

1

Oil Pump Housing

420812726

$108.18

2

Oil Pump Shaft

420837543

$56.69

3

Oil Pump Rotor 16 mm

420956675

$33.55

4

Oil Pump Cover

420811851

$31.31

5

Torx Flange Screw M6 X 16

420641048

$2.82

6

Oil Sieve

420856520

$24.60

7

Oil Suction Pump Gasket | Included in gasket kit

420631486

$9.03

8

Torx Flange Screw M6 X 25

420641238

$3.07

9

Pump Shaft Ass'y

420837472

$52.21

10

Oil Pump Rotor 16 mm

420956675

$33.55

11

Needle Pin

420929070

$1.79

12

Oil Pump Cover

420811591

$34.30

13

Torx Flange Screw M6 X 16

420641048

$2.82

14

Oil Sieve

420956950

$14.33

15

Valve Seat Sleeve

420256606

$27.58

16

Piston Valve

420256638

Unavailable

17

Compression Spring

420939401

$12.52

18

Compression Spring

420939211

$8.22

19

O-Ring

420230890

$5.06

20

Plug Screw M20 X 1.5

420641052

$35.79

21

Oil Filter

420956744

$19.37

22

Oil Filter Cover

420612081

$10.57

23

O-Ring

420850500

$3.01

24

O-Ring

420230923

$2.97

25

Hex Screw M8 X 140.5

420641104

$12.87

26

O-Ring

420950860

$3.67

27

Spacer

420857229

$19.37

28

Hex. Nut M8

420842610

$12.87

29

O-Ring

420250057

$4.00

30

Oil Radiator

420888854

$299.22

31

Torx Flange Screw M6 X 25

420641238

$3.07

32

Oil Pressure Switch

420256919

$46.24

33

Temperature Sensor

278002895

$36.54

34

Oil Level Tube

420956944

$109.67

35

O-Ring

420950810

$14.10

36

Oil Level Gauge

420956932

$24.60

37

Cover

420660037

$22.36

38

Thrust Washer

420627494

$7.01

39>42

Vent Valve Ass'y | Includes no. 39-42

420856504

$101.46

40

V-Ring 20S FPM Blow By Valve

420630125

$10.76

41

O-Ring

420950870

$5.06

42

TOPS Switch

420665951

$39.52

43

Torx Flange Screw M6 X 25

420641238

$3.07
