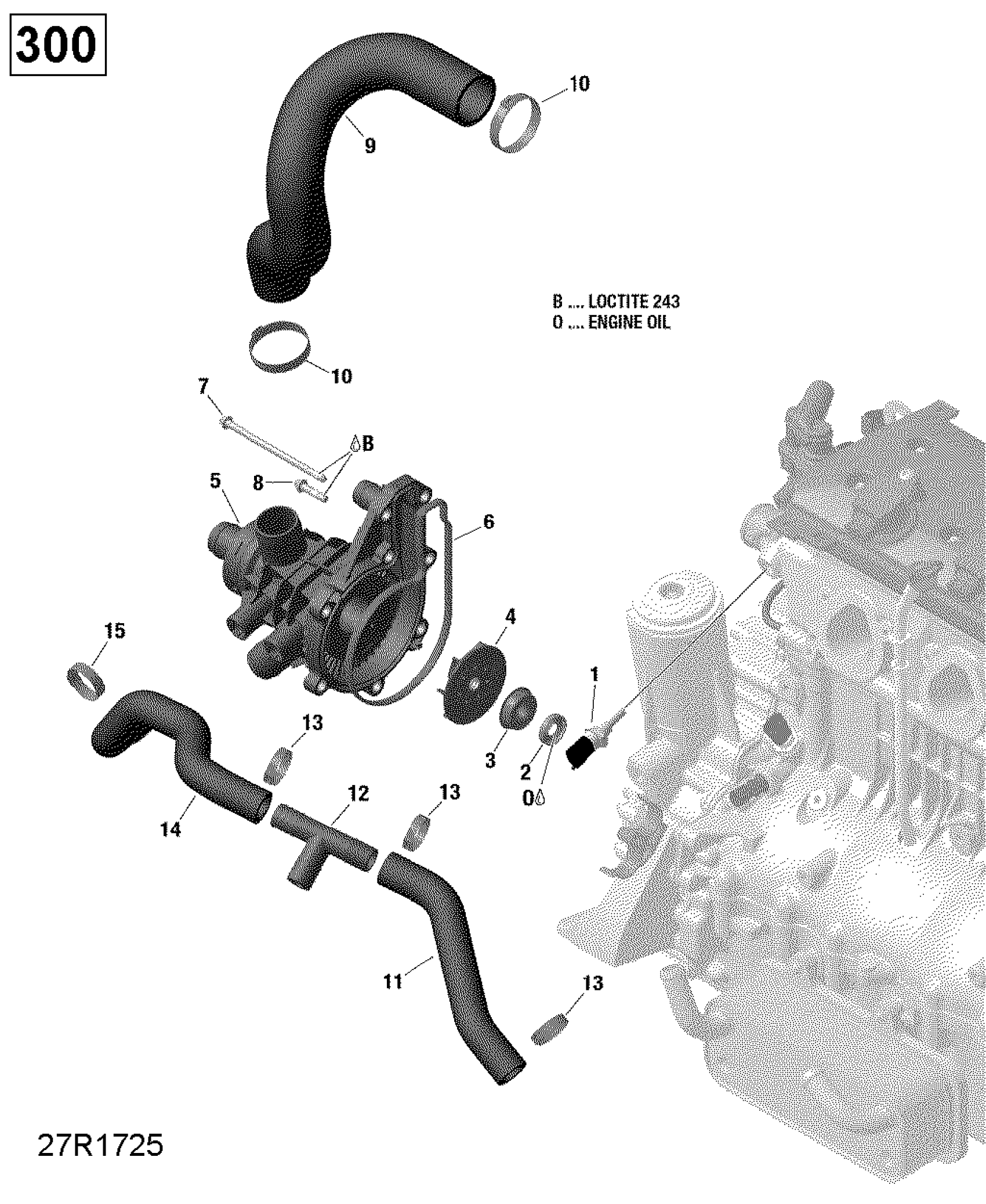

Sea-doo GTX, 2017 Engine Cooling - 300 Diagram

#

Description
Price

1

Temperature Sensor

278002895

$31.82

2

Oil Seal

420650315

$9.62

3

Rotary Seal

420650371

$35.72

4

Impeller

420922804

$14.27

5>6

Water Pump Housing This part replaces 420922687.

420922923

$266.47

6

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

7

Torx Flange Screw M6 X 105

420641338

$6.11

8

Torx Flange Screw M6 X 25

420641238

$2.68

9

Formed Hose This part replaces 420822791.

5922823

Unavailable

10

Oetiker Clamp

420851687

$9.43

11

Formed Hose

420822865

$49.97

12

T-Fitting

293710131

$12.57

13

Clamp

420251578

$7.05

14

Formed Hose

420822860

$49.97

15

Gear Clamp

420851673

$4.71
