Partiron

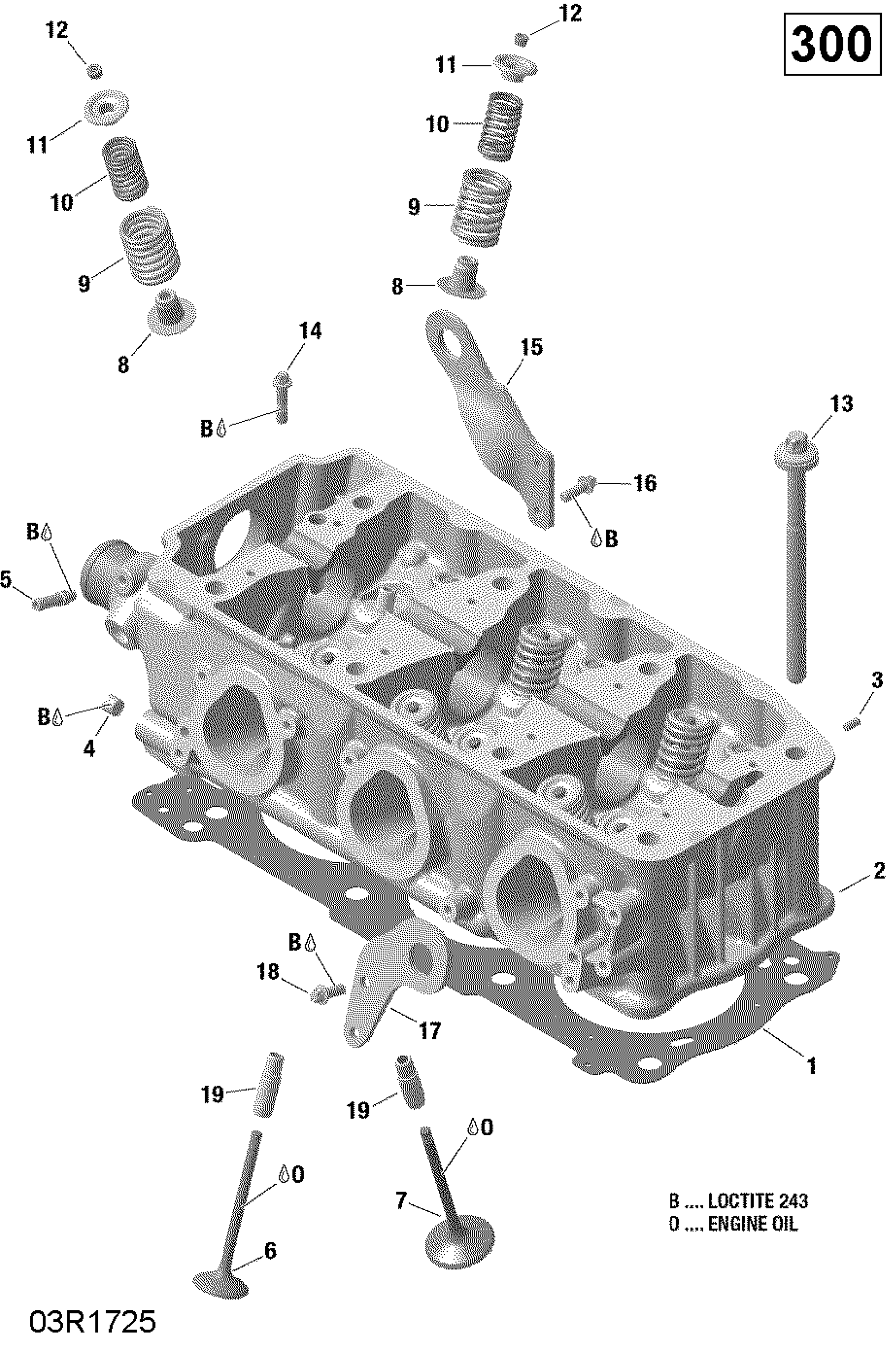

Sea-doo GTX, 2017 Cylinder Head - 300 Diagram

#

Description
Price

1

Cylinder Head Gasket | Included in gasket kit

420950772

$137.49

2>5

Cylinder Head Ass'y

420413258

$779.99

3

Drive Pin 5 X 10

420929650

$1.68

4

Plug Screw M10 X 1

420641323

$14.28

5

Hose Nipple

420924724

$14.83

6

Exhaust Valve, 31 mm

420254682

$104.99

7

Intake Valve 38MM

420253163

$41.49

8

Valve Steam Seal

420630202

$7.90

9

Valve Spring Set 1603 ( Includes 9 and 11) | Includes no. 9-10

420238183

$95.49

10

Valve Spring Inside

420838280

$12.72

11

Not Available As Spare Parts

XXX

Unavailable

12

Valve Cotter

420253645

$7.41

13

Torx Flange Screw M11 X 147

420641115

$10.99

14

Torx Flange Screw M6 X 25

420641238

$3.27

15

Transport Bracket PTO

420851618

$27.49

16

Torx Flange Screw M6 X 16

420641048

$2.96

17

Transport Bracket

420951382

$20.99

18

Torx Flange Screw M6 X 16

420641048

$2.96

19

Valve Guide | Inner diameter machined

420253929

$46.49
