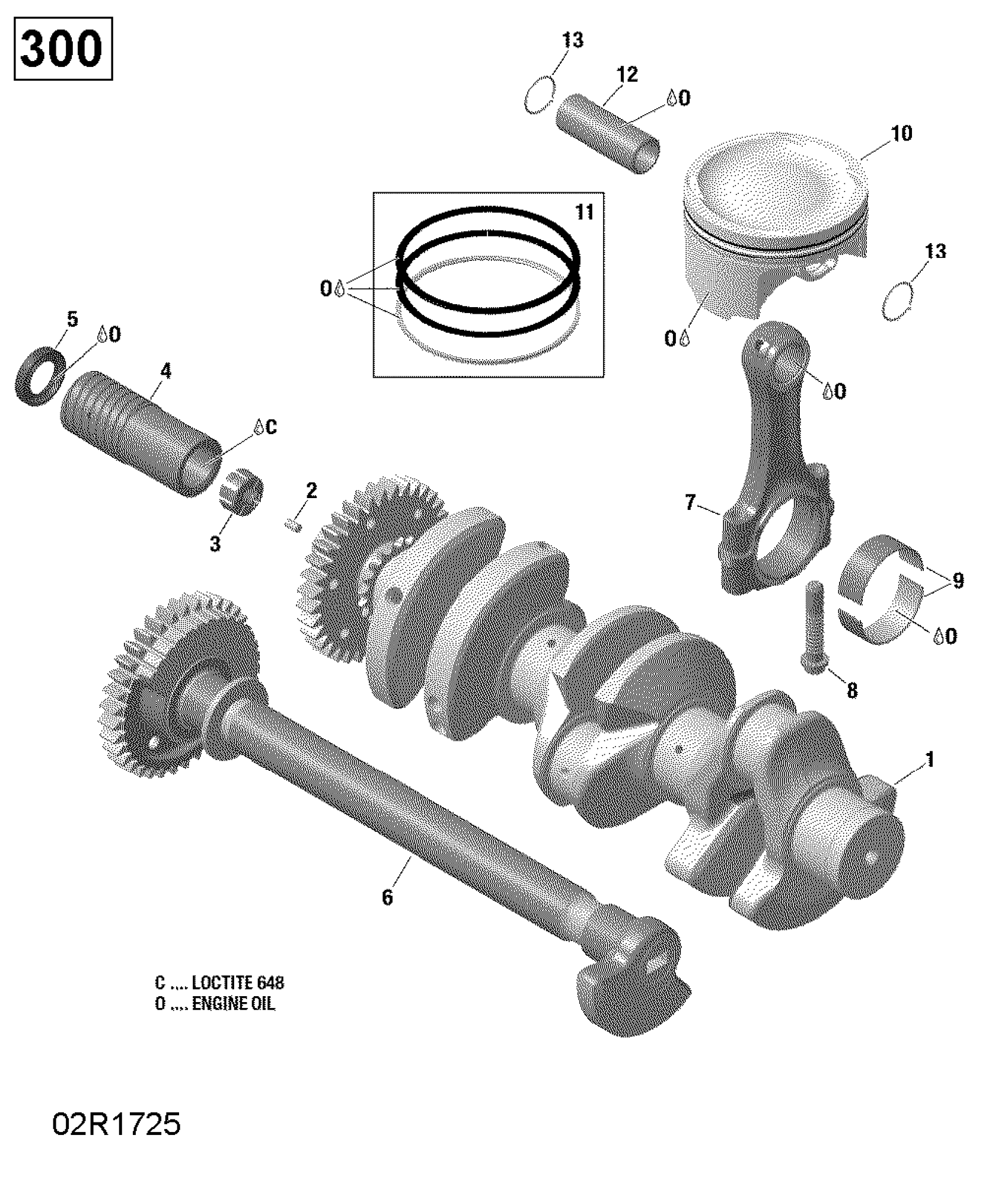

Sea-doo GTX, 2017 Crankshaft, Pistons And Balance Shaft - 300 Diagram

#

Description

Price

1>2

Crankshaft Ass'y

420819495

$949.99

2

Drive Pin 5 X 10

420929650

$1.68

3

Stop Sleeve

420660280

$14.75

4

Output Sleeve This part replaces 420847952.

420947770

$121.99

5

Sealing Ring

420630551

$14.83

6

Balance Shaft Ass'y

420820276

$624.99

7>8

Connecting Rod Ass'y This part replaces 420917762.

420917764

$254.99

8

Connecting Rod Screw M10 X 1

420640996

$11.65

9

Half-Bearing

420933523

$19.19

10>11

Piston Ass'y, 99.94 mm | Includes no. 7-8

420892738

$292.49

11

Piston Set Ring, Standard

420890385

$66.99

12

Piston Pin

420916472

$31.99

13

Piston Circlip

420245436

$4.89
