Partiron

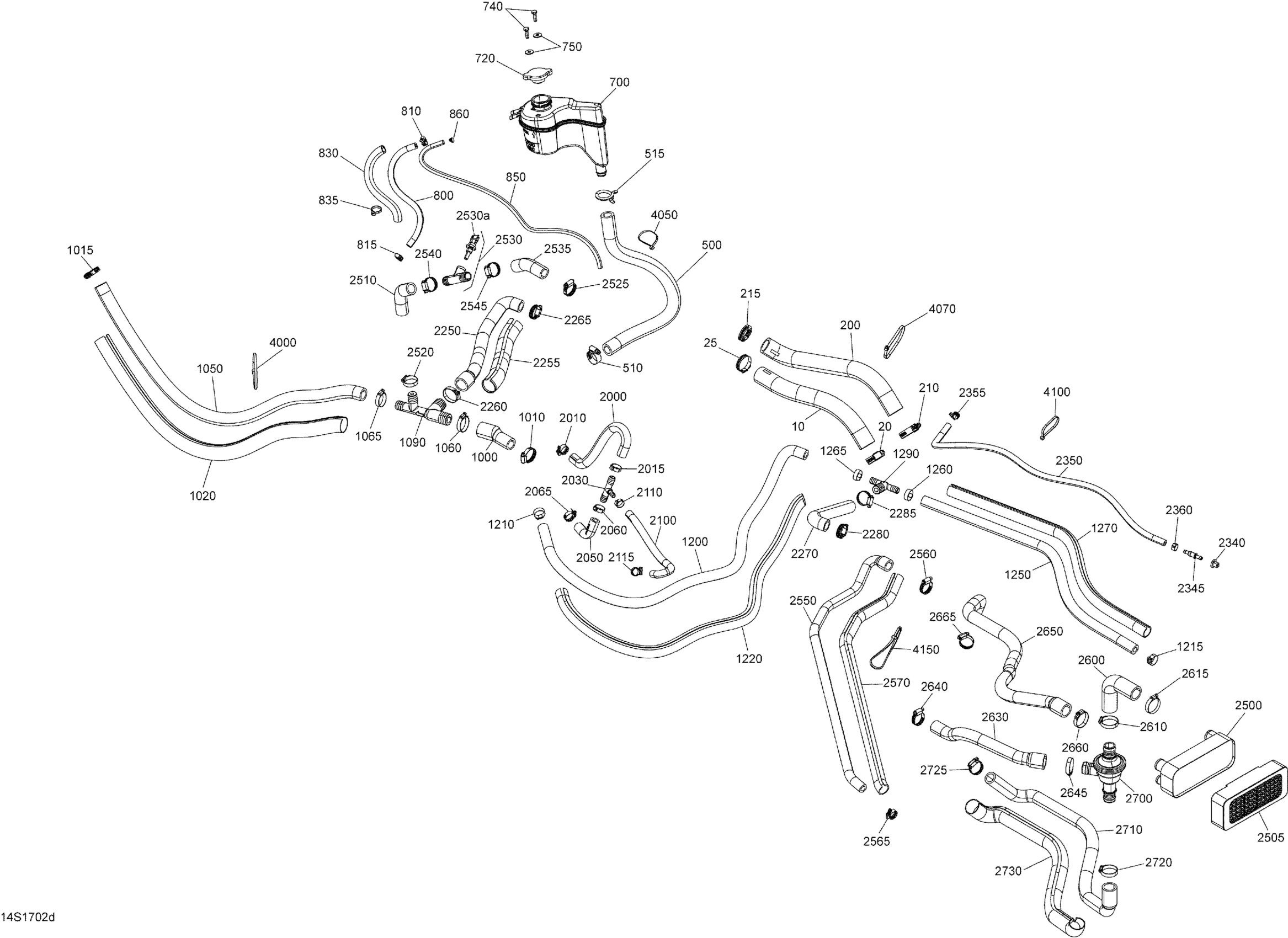

Sea-doo GTX, 2017 Cooling System - 300 Diagram

#

Description
Price

10

Radiator Hose

276000241

$32.99

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Radiator Hose This part replaces 276000240.

276000491

$49.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

500

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

700

Coolant Tank

276000265

$134.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

740

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

750

Flat Washer M6, Stainless

234062600

$0.77

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

810

Tridon Gear Clamp

293650170

$1.99

815

Tridon Gear Clamp

293650170

$1.99

830

Was 409901800 Tubing (13 mm)

219704400

$14.49

835

Tie Wrap 94 mm | 4X4

293750001

$1.03

850

Polyurethane Hose 10000Mm Long

219704410

$56.99

860

Tie Wrap 94 mm | 4X4

293750001

$1.03

1000

Hose-Formed

276000376

$16.99

1010

Tridon Gear Clamp

293650051

$4.19

1015

Tridon Gear Clamp

293650051

$4.19

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1050

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1060

Hose Clamp

293650142

$4.19

1065

Tridon Gear Clamp

293650051

$4.19

1090

Fitting-T

293710153

$15.35

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Tridon Gear Clamp

293650172

$3.09

1215

Tridon Gear Clamp

293650172

$3.09

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

1250

Was 276000001 Hose 12.5 mm

219704394

$51.99

1260

Tridon Gear Clamp

293650172

$3.09

1265

Tridon Gear Clamp

293650172

$3.09

1270

Was 515175319 Tubing 22 mm

219704423

$14.99

1290

T-Fitting

293710132

$12.65

2000

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2010

Tridon Gear Clamp

293650172

$3.09

2015

Oetiker Clamp

293650012

$7.49

2030

T-Fitting

293710116

$17.62

2050

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

2060

Oetiker Clamp

293650012

$7.49

2065

Tridon Gear Clamp

293650172

$3.09

2100

Formed Hose | Without Catalyst

276000246

$19.49

2110

Oetiker Clamp | Europe

293650030

$5.19

2115

Tridon Gear Clamp

293650171

$3.09

2250

Hose-Formed This part replaces 276000357.

276000495

$23.49

2255

Tubing 25 MM 1000MM Long

219704402

$15.99

2260

Hose Clamp

293650142

$4.19

2265

Tridon Gear Clamp

293650051

$4.19

2270

HOSE-FORMED - Call your local BRP dealership

276000361

Unavailable

2280

Tridon Gear Clamp

293650051

$4.19

2285

Tridon Gear Clamp

293650051

$4.19

2340

Grommet

293720029

$1.59

2345

Male Connector

414518500

$4.23

2350

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

2355

Tridon Gear Clamp

293650170

$1.99

2360

Oetiker Gear Clamp

293650025

$3.09

2500

COOLER - Call your local BRP dealership

276000336

Unavailable

2505

Cooler Pad

278003329

$23.99

2510

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2520

Tridon Gear Clamp

293650051

$4.19

2525

Tridon Gear Clamp

293650051

$4.19

2530>2530a

Sensor Ass'y | Includes 1090 to 1090b

293710143

$63.99

2530a

Temperature Sensor

278002895

$39.99

2535

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2540

Tridon Gear Clamp

293650051

$4.19

2545

Tridon Gear Clamp

293650051

$4.19

2550

HOSE-FORMED - Call your local BRP dealership

276000360

Unavailable

2560

Tridon Gear Clamp

293650051

$4.19

2565

Tridon Gear Clamp

293650172

$3.09

2570

Was 515175319 Tubing 22 mm

219704423

$14.99

2600

Hose

276000362

$29.49

2610

Hose Clamp

293650142

$4.19

2615

Hose Clamp

293650142

$4.19

2630

Hose This part replaces 276000366.

276000500

$42.99

2640

Tridon Gear Clamp

293650051

$4.19

2645

Hose Clamp

293650142

$4.19

2650

Hose This part replaces 276000363.

276000499

$36.99

2660

Hose Clamp

293650142

$4.19

2665

Tridon Gear Clamp

293650051

$4.19

2700

Thermostat

709200406

$98.99

2710

Hose

276000501

$29.49

2720

Hose Clamp

293650142

$4.19

2725

Tridon Gear Clamp

293650051

$4.19

2730

Tubing 25 MM 1000MM Long

219704402

$15.99

4000

Tie Wrap 368 mm

293750008

$1.04

4050

Tie-Rap 180 mm

414115200

$0.11

4070

Tie Wrap 368 mm

293750008

$1.04

4100

Tie-Rap 180 mm

414115200

$0.11

4150

Tie Wrap 368 mm

293750008

$1.04
