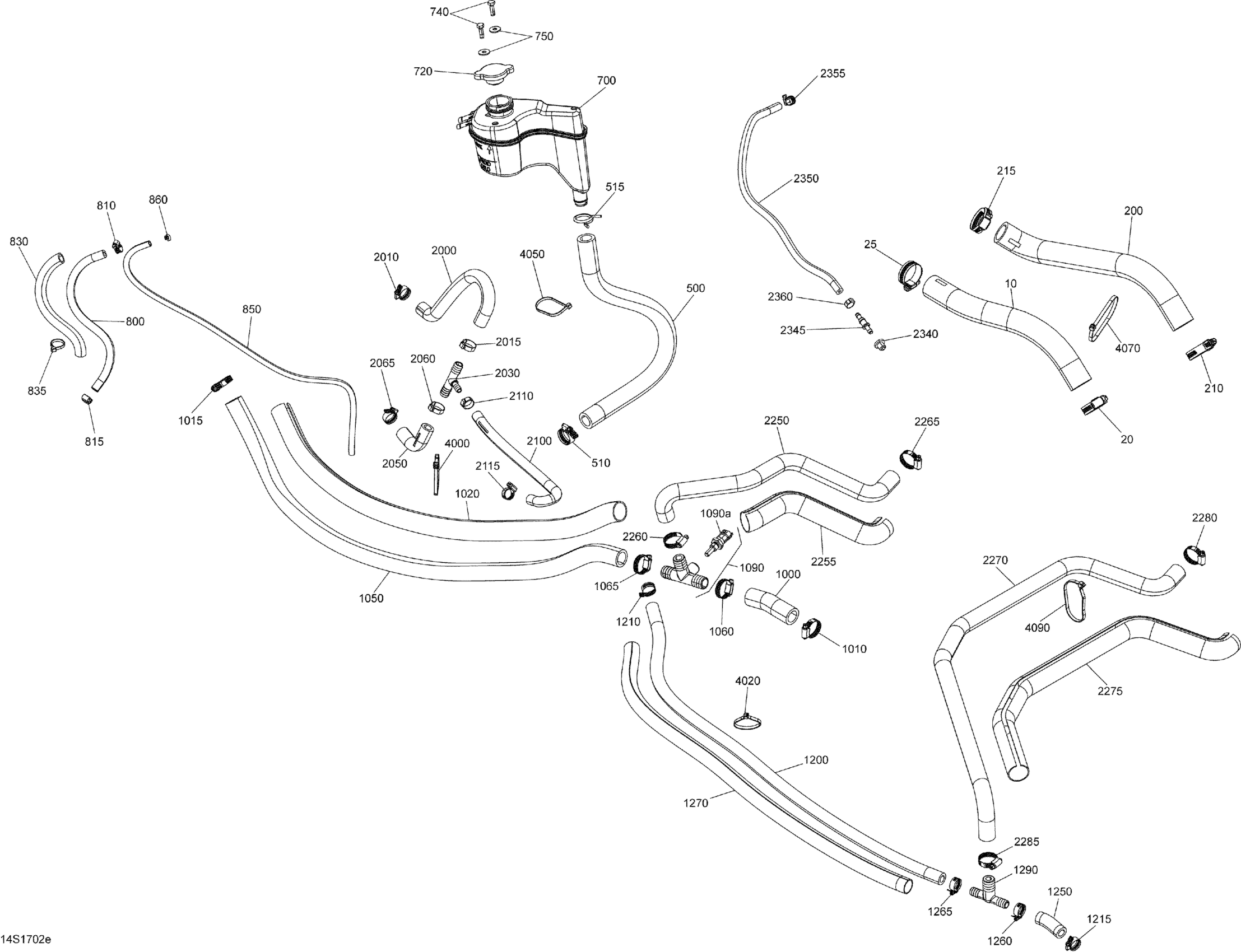

Sea-doo GTX, 2017 Cooling System - 230 Diagram

#

Description
Price

10

Radiator Hose

276000241

$30.57

20

Norma Clamp

293650245

$13.51

25

Norma Clamp

293650245

$13.51

200

Radiator Hose This part replaces 276000240.

276000491

$46.24

210

Norma Clamp

293650245

$13.51

215

Norma Clamp

293650245

$13.51

500

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

510

Tridon Gear Clamp

293650019

$5.52

515

Spring Clamp

293650115

$2.82

700

Coolant Tank

276000265

$117.88

720

Pressure Cap | Includes 720 to 720a

276000100

$23.85

740

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

750

Flat Washer M6, Stainless

234062600

$0.73

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

810

Tridon Gear Clamp

293650170

$2.00

815

Tridon Gear Clamp

293650170

$2.00

830

Was 409901800 Tubing (13 mm)

219704400

$10.79

835

Tie Wrap 94 mm | 4X4

293750001

$0.96

850

Polyurethane Hose 10000Mm Long

219704410

$52.96

860

Tie Wrap 94 mm | 4X4

293750001

$0.96

1000

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1010

Tridon Gear Clamp

293650051

$4.15

1015

Tridon Gear Clamp

293650051

$4.15

1020

Tubing 25 MM 1000MM Long

219704402

$14.57

1050

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1060

Tridon Gear Clamp

293650051

$4.15

1065

Tridon Gear Clamp

293650051

$4.15

1090>1090a

Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b

293710164

$54.45

1090a

Temperature Sensor

278002895

$36.54

1200

Was 276000001 Hose 12.5 mm

219704394

$49.22

1210

Tridon Gear Clamp

293650172

$3.07

1215

Tridon Gear Clamp

293650172

$3.07

1250

Was 276000001 Hose 12.5 mm

219704394

$49.22

1260

Tridon Gear Clamp

293650172

$3.07

1265

Tridon Gear Clamp

293650172

$3.07

1270

Was 515175319 Tubing 22 mm

219704423

$13.60

1290

T-Fitting

293710132

$10.88

2000

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$17.88

2010

Tridon Gear Clamp

293650172

$3.07

2015

Oetiker Clamp

293650012

$5.67

2030

T-Fitting

293710116

$16.39

2050

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$17.88

2060

Oetiker Clamp

293650012

$5.67

2065

Tridon Gear Clamp

293650172

$3.07

2100

Formed Hose | Without Catalyst

276000246

$17.13

2110

Oetiker Clamp | Europe

293650030

$4.96

2115

Tridon Gear Clamp

293650171

$2.82

2250

Hose-Formed This part replaces 276000411.

276000504

$22.36

2255

Tubing 25 MM 1000MM Long

219704402

$14.57

2260

Tridon Gear Clamp

293650051

$4.15

2265

Tridon Gear Clamp

293650051

$4.15

2270

Hose-Formed This part replaces 276000410.

276000503

$22.36

2275

Tubing 25 MM 1000MM Long

219704402

$14.57

2280

Tridon Gear Clamp

293650051

$4.15

2285

Tridon Gear Clamp

293650051

$4.15

2340

Grommet

293720029

$1.30

2345

Male Connector

414518500

$4.01

2350

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

2355

Tridon Gear Clamp

293650170

$2.00

2360

Oetiker Gear Clamp

293650025

$2.82

4000

Tie Wrap 368 mm

293750008

$0.97

4020

Tie Wrap 368 mm

293750008

$0.97

4050

Tie-Rap 180 mm

414115200

$0.10

4070

Tie Wrap 368 mm

293750008

$0.97

4090

Tie Wrap 368 mm

293750008

$0.97
