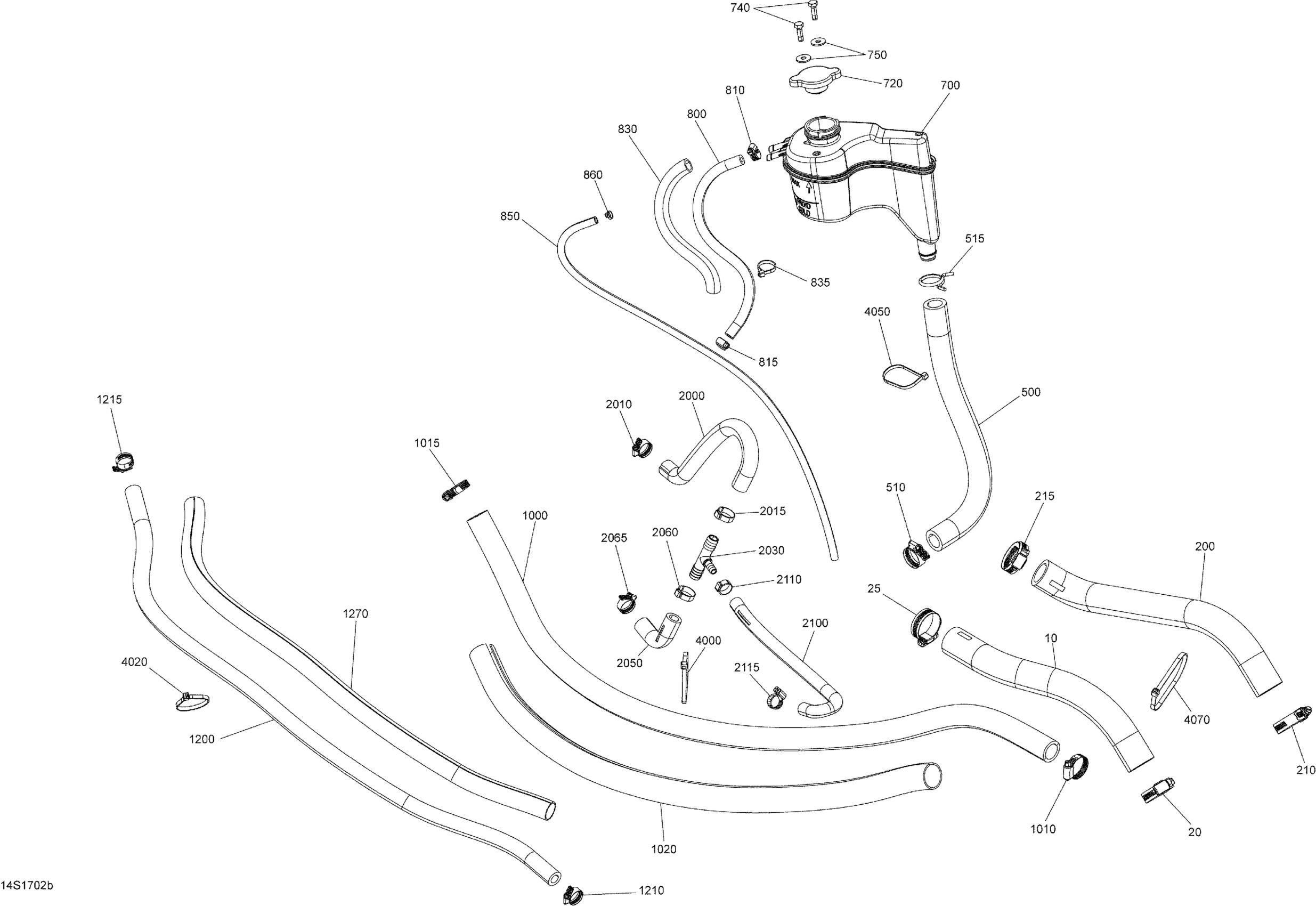

Sea-doo GTX, 2017 Cooling System - 155 Diagram

Radiator Hose

276000241

$30.57

Norma Clamp

293650245

$13.51

Norma Clamp

293650245

$13.51

Radiator Hose This part replaces 276000240.

276000491

$46.24

Norma Clamp

293650245

$13.51

Norma Clamp

293650245

$13.51

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

Tridon Gear Clamp

293650019

$5.52

Spring Clamp

293650115

$2.82

Coolant Tank

276000265

$117.88

Pressure Cap | Includes 720 to 720a

276000100

$23.85

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

Flat Washer M6, Stainless

234062600

$0.73

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

Tridon Gear Clamp

293650170

$2.00

Tridon Gear Clamp

293650170

$2.00

Was 409901800 Tubing (13 mm)

219704400

$10.79

Tie Wrap 94 mm | 4X4

293750001

$0.96

Polyurethane Hose 10000Mm Long

219704410

$52.96

Tie Wrap 94 mm | 4X4

293750001

$0.96

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

Tridon Gear Clamp

293650051

$4.15

Tridon Gear Clamp

293650051

$4.15

Tubing 25 MM 1000MM Long

219704402

$14.57

Was 276000001 Hose 12.5 mm

219704394

$49.22

Tridon Gear Clamp

293650172

$3.07

Tridon Gear Clamp

293650172

$3.07

Was 515175319 Tubing 22 mm

219704423

$13.60

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$17.88

Tridon Gear Clamp

293650172

$3.07

Oetiker Clamp

293650012

$5.67

T-Fitting

293710116

$16.39

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$17.88

Oetiker Clamp

293650012

$5.67

Tridon Gear Clamp

293650172

$3.07

Formed Hose | Without Catalyst

276000246

$17.13

Oetiker Clamp | Europe

293650030

$4.96

Tridon Gear Clamp

293650171

$2.82

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97

Tie-Rap 180 mm

414115200

$0.10

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 368 mm

293750008

$0.97
