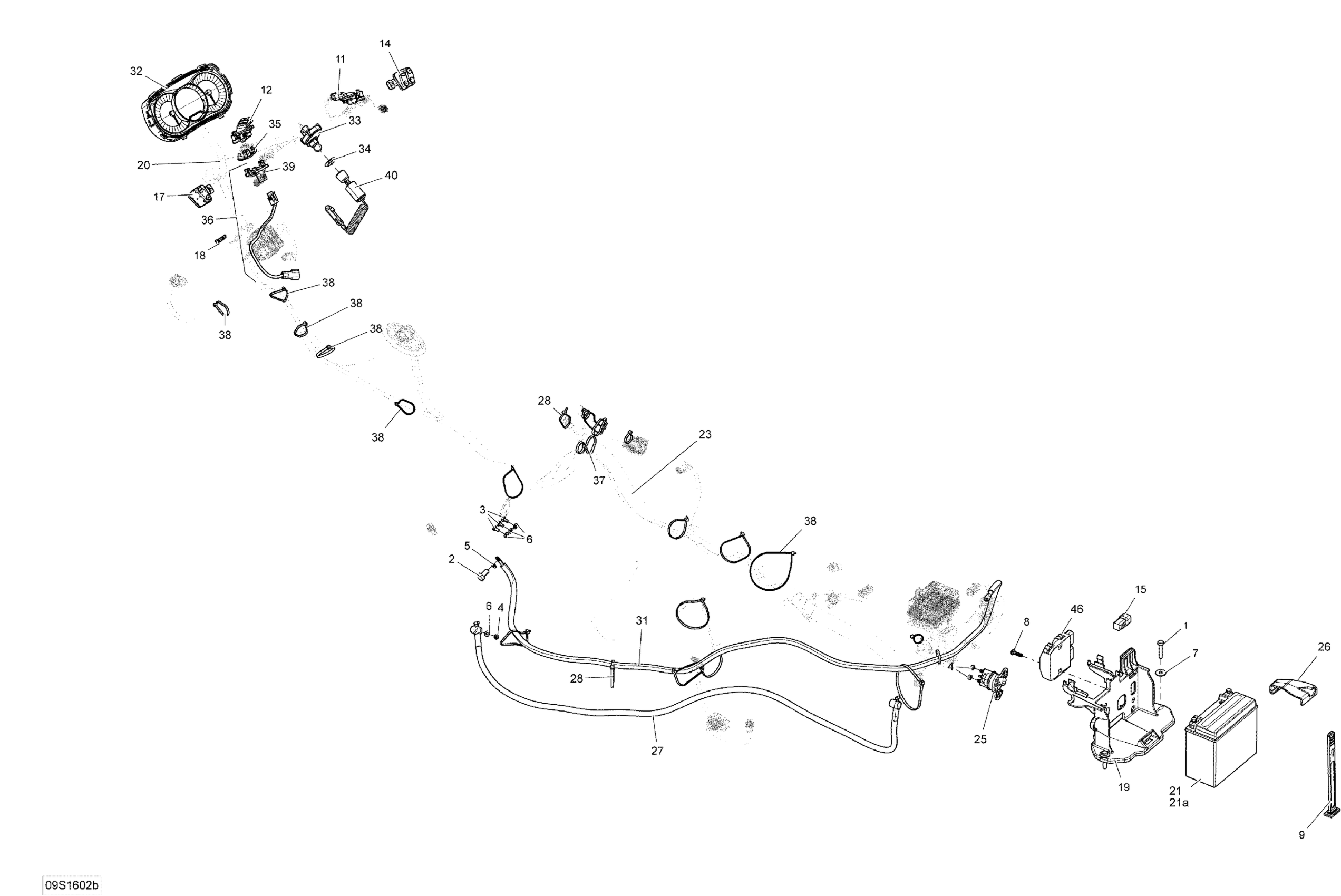

Sea-doo GTX, 2016 Electrical System - GTX S 155 Diagram

#

Description
Price

0

Main Harness | Model GTX S 155

278003332

$553.82

1

Hex. Screw M8 X 40

207184060

$1.85

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

4

Elastic Stop Nut M6, Brass

232561200

$3.51

5

Flat Washer 10 mm, Stainless

234000600

$1.07

6

Stainless Flat Washer M6

234061600

$0.25

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Torx Screw Plastite M6

250000466

$5.62

9

Strap

269502417

$14.27

11

Throttle Position Sensor

278002283

$94.22

12

LH Throttle Sensor

278002284

$115.35

14

Switch RH Mode/Set

278002602

$100.72

15

Diagnostic Connector

278002704

$15.57

17

Switch LH Sport/Eco

278002768

$66.92

18

Clip (double dart)

278002910

$11.06

19

Batt. Support | Except Engine 900HO ACE

278003136

$22.72

20

Steering Harness Ass'y

278003265

$245.67

21

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

21a

Battery Bolt Kit

250000282

$2.95

23

Main Harness | Model GTX S 155

278003332

$553.82

25

Starter Relay

278003012

$35.07

26

Clip

278003521

$14.27

27

Cable-Starter

278003398

$50.02

28

Tie Wrap 368 mm

293750008

$0.85

31

Battery Ground Cable

278003269

$33.77

32

LCD Gauge | Model GTI LTD 155

278003378

$926.87

33

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

34

Safety Nut (DESS Switch)

278002963

$2.72

35

O.T.A.S Actuator

278003537

$33.12

36

O.T.A.S. Sensor Ass'y

278003009

$86.42

37

Tie Rap 300mm

293750053

$2.75

38

Tie-Rap 180 mm

414115200

$0.09

38

Tie Rap, 533 mm

293750047

$1.83

39

O.T.A.S. Sensor

278003008

$86.42

40

Safety Lanyard Ass'y, RFID

278003400

$58.47

40

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47

46

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92
