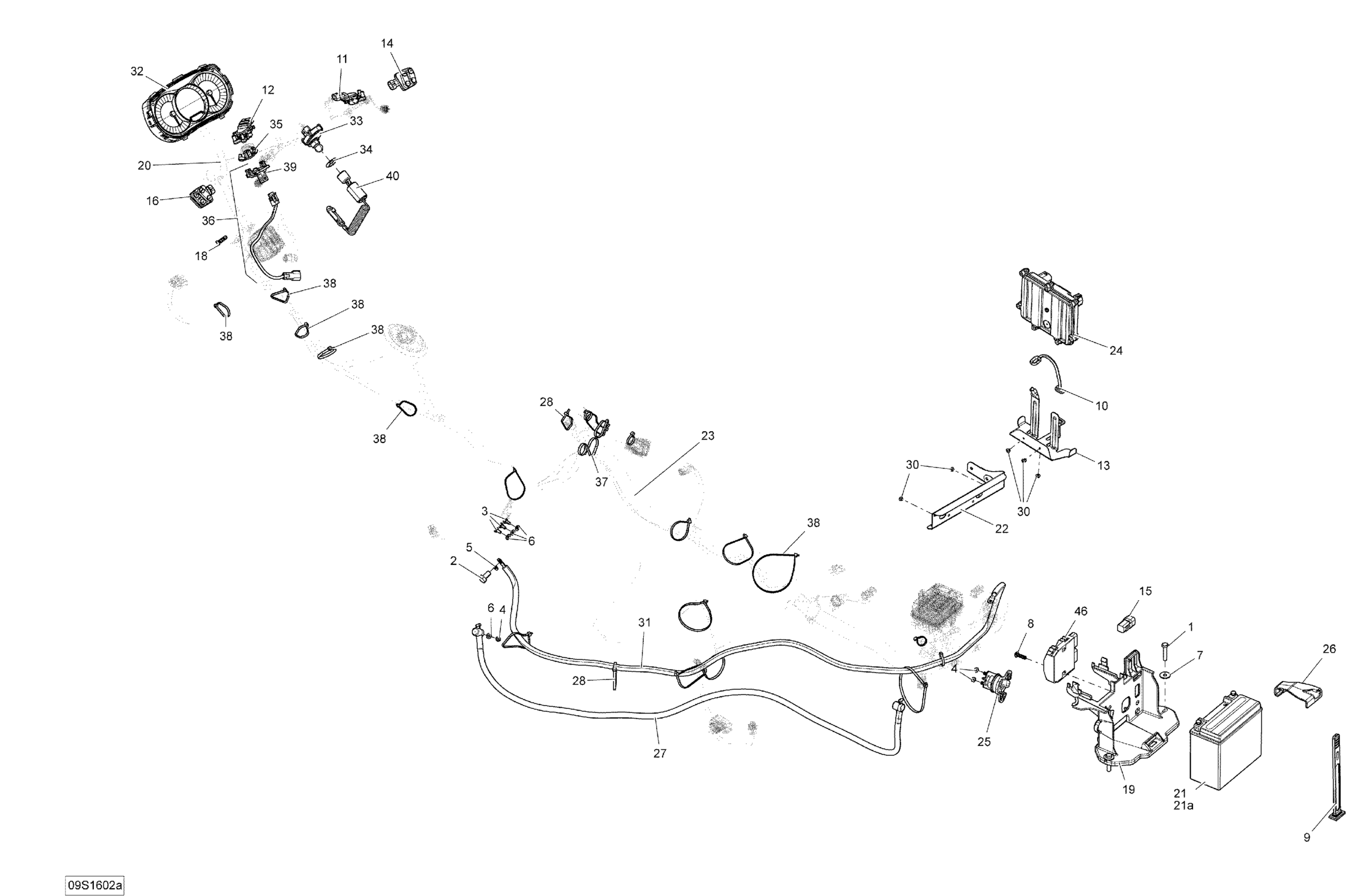

Sea-doo GTX, 2016 Electrical System - GTX LTD iS 260 Diagram

#

Description
Price

0

Main Harness

278003331

$1,014.90

1

Hex. Screw M8 X 40

207184060

$2.12

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Elastic Stop Nut M6, Brass

232561200

$4.03

5

Flat Washer 10 mm, Stainless

234000600

$1.22

6

Stainless Flat Washer M6

234061600

$0.28

7

Flat Washer 8 mm, Stainless

234082600

$2.27

8

Torx Screw Plastite M6

250000466

$6.45

9

Strap

269502417

$16.39

10

Strap

269501299

$17.13

11

Throttle Position Sensor

278002283

$104.99

12

LH Throttle Sensor

278002284

$108.18

13

SUSPENSION MODULE SUPPORT - Call your local BRP dealership | With WDL

278002403

Unavailable

14

Switch RH Mode/Set

278002602

$115.64

15

Diagnostic Connector

278002704

$17.88

16

Switch LH VTS/Sport/Eco | Package STD

278002767

$116.39

17

Switch LH Sport/Eco

278002768

$76.84

18

Clip (double dart)

278002910

$10.30

19

Batt. Support | Except Engine 900HO ACE

278003136

$26.09

20

Steering Harness Ass'y

278003265

$282.06

21

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

21a

Battery Bolt Kit

250000282

$3.39

22

SUPPORT - Call your local BRP dealership

278003293

Unavailable

23

Main Harness

278003331

$1,014.90

24

Electronic Suspension Module

278002491

$827.58

25

Starter Relay

278003012

$40.27

26

Clip

278003521

$16.39

27

Cable-Starter

278003398

$57.43

28

Tie Wrap 368 mm

293750008

$0.97

30

Pop Rivet 3/16"

204000081

$1.31

31

Battery Ground Cable

278003269

$38.78

32

LCD Gauge | Model GTX LTD S 260

278003380

$856.69

33

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

34

Safety Nut (DESS Switch)

278002963

$3.12

35

O.T.A.S Actuator

278003537

$38.03

36

O.T.A.S. Sensor Ass'y

278003009

$99.22

37

Tie Rap 300mm

293750053

$1.99

38

Tie-Rap 180 mm

414115200

$0.10

38

Tie Rap, 533 mm

293750047

$1.84

39

O.T.A.S. Sensor

278003008

$99.22

40

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

40

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$67.13

46

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99
