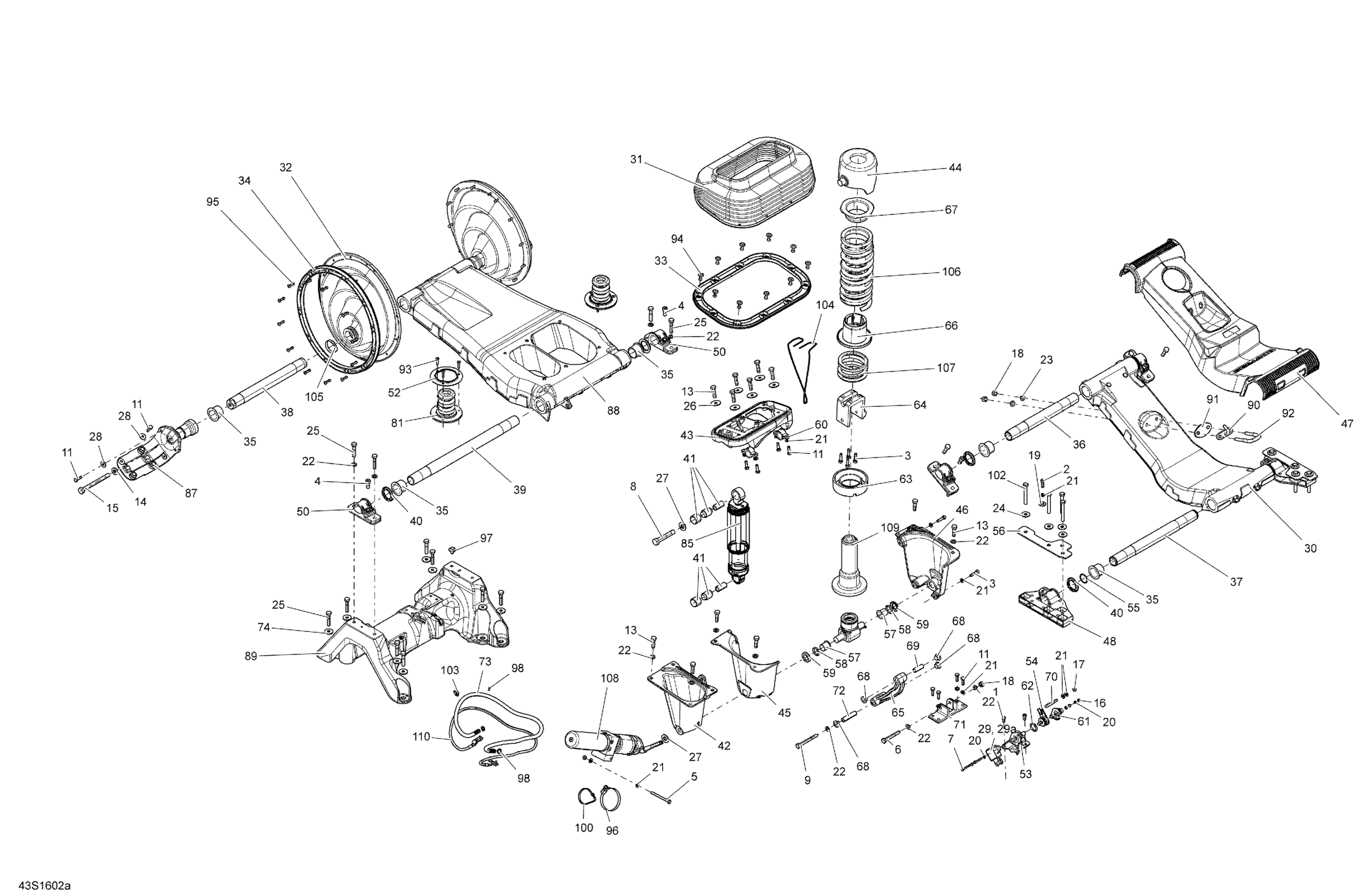

Sea-doo GTX, 2016 Suspension - GTX LTD Diagram

#

Description
Price

1

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

2

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

3

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

4

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

5

Hex. Screw M6 X 70

207067060

$5.30

6

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

7

Hex. Screw M4 X 40

207144060

$4.15

8

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

9

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

11

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

13

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

14

Flat Washer

211200051

$1.54

15

Hex. Screw M10 X 110, Scotch Grip

230201060

$12.10

16

Elastic Stop Nut M4

232541200

$2.00

17

Elastic Stop Nut M6, Brass

232561200

$4.03

18

Hex. Elastic Nut M8 Brass

232581200

$1.48

19

Flat Washer 10 mm, Stainless

234001600

$1.04

20

Flat Washer 4 mm, Stainless

234041600

$1.04

21

Stainless Flat Washer M6

234061600

$0.28

22

Flat Washer M8, Stainless

234080600

$1.43

23

Stainless, Flat Washer 8 mm

234081600

$0.52

24

Flat Washer 8 mm, Stainless

234082600

$2.27

25

HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership

250000729

Unavailable

26

Flat Washer 8 mm, Stainless

250200175

$1.48

27

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

28

Flat Washer M6

250200115

$3.12

29

Position Sensor

420866120

$89.52

29a

O-Ring

270000544

$4.27

30

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

31

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

32

Lateral Bellows

279000009

$72.36

33

Retaining Plate

279000010

$16.39

34

Retaining Ring

279000011

$15.64

35

Bushing

279000019

$22.36

36

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

37

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

38

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

39

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

40

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

41

Bushing

279000051

$75.34

42

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

43

Shock Upper Holder

279000057

$177.58

44

UPPER SPRING HOLDER - Call your local BRP dealership

279000061

Unavailable

45

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

46

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

47

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

48

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

50

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

50

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

52

Retaining Ring

279000115

$11.69

53

POSITION SENSOR BRACKET - Call your local BRP dealership

279000098

Unavailable

54

SENSOR LEVER - Call your local BRP dealership

279000099

Unavailable

55

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

56

RETAINING PLATE - Call your local BRP dealership

279000114

$13.42

57

BUSHING - Call your local BRP dealership

279000103

Unavailable

58

O-RING - Call your local BRP dealership

279000104

Unavailable

59

BUSHING - Call your local BRP dealership

279000105

Unavailable

60

CLAMP - Call your local BRP dealership

279000106

Unavailable

61

POSITION SENSOR COVER - Call your local BRP dealership

279000107

$6.81

62

O-Ring

279000108

$5.61

63

Lower Spring Protector

279000121

$15.64

64

SPRING ALIGNMENT ADAPTOR - Call your local BRP dealership

279000154

Unavailable

65

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

66

Spring Spacer

279000130

$17.88

67

UPPER SPRING PROTECTOR - Call your local BRP dealership

279000134

Unavailable

68

BUSHING - Call your local BRP dealership

279000137

$7.10

69

SPACER - Call your local BRP dealership

279000138

Unavailable

70

THREADED ROD - Call your local BRP dealership

279000139

Unavailable

71

BRACKET - Call your local BRP dealership

279000155

Unavailable

72

SPACER - Call your local BRP dealership

279000153

Unavailable

73

Tubing 6 Mm 3000Mm Long

219704425

$12.75

74

Flat Washer

279000336

$9.58

81

RUBBER BUMPER - Call your local BRP dealership

279000193

Unavailable

85

Shock

279000247

$1,039.52

87

FOOT REST - Call your local BRP dealership

279000306

Unavailable

88

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

89

FRONT ARM BASE - Call your local BRP dealership

279000316

Unavailable

90

Hook | Package LTD

291002351

$67.13

91

Black, Finition Plate

291001386

$9.84

92

U-Clamp

292000933

$37.28

93

Pop Rivet 3/16"

293150005

$0.46

94

Pop Rivet 3/16"

293150123

$3.94

95

Pop Rivet 3/16"

293150176

$2.09

96

Norma Clamp

293650079

$10.21

97

Mount Dart

293730040

$0.99

98

Tie Wrap 94 mm | 4X4

293750001

$0.96

100

Tie Wrap 368 mm

293750008

$0.97

102

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

103

Tie-Rap 180 mm

414115200

$0.10

104

Retaining Cable

708200118

Unavailable

105

Oetiker Clamp

293650242

$7.90

106

PAINTED SPRING - Call your local BRP dealership

279000128

Unavailable

107

PAINTED SPRING - Call your local BRP dealership

279000131

Unavailable

108

PUMP ASS'Y - Call your local BRP dealership This part replaces 279000207.

279000208

Unavailable

109

ACTUATOR - Call your local BRP dealership

279000117

Unavailable

110

CONNECTOR HOSE - Call your local BRP dealership

279000162

Unavailable
