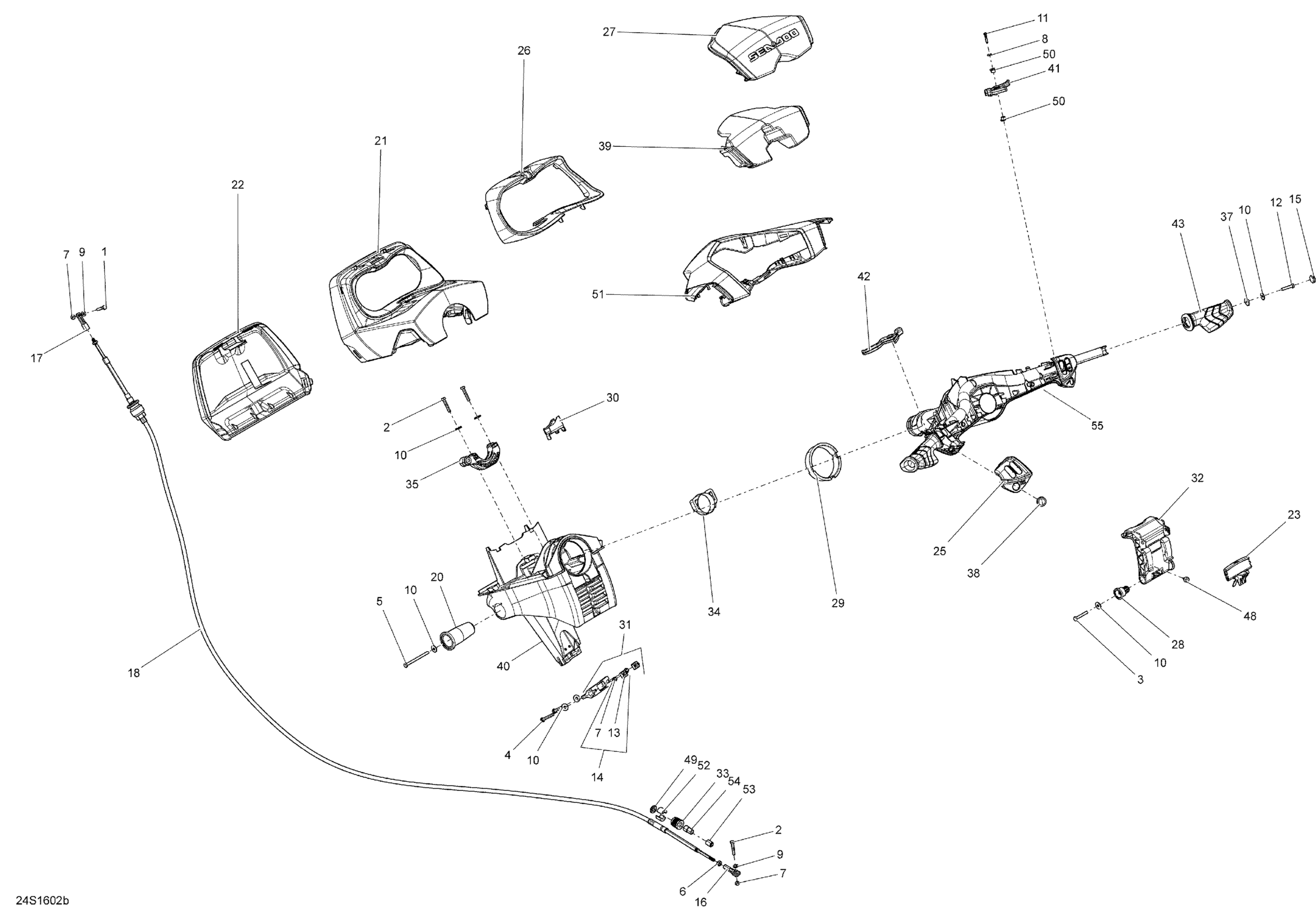

Sea-doo GTX, 2016 Steering - Without Suspension Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.89

2

Hex. Screw M6 X 35

207063560

$2.22

2

Hex. Screw M6 X 35

207163560

$1.49

3

Hex. Screw M6 X 40

207064060

$1.69

4

Hex. Screw M6 X 50

207165060

$0.92

5

Hex Screw M6 X 80

207168060

$6.77

6

Hex. Nut 1/4"-28

211100056

$0.69

7

Elastic Stop Nut M6, Brass

232561200

$4.23

8

Flat Washer 4 mm, Stainless

234042600

$1.15

9

Stainless Flat Washer M6

234061600

$0.33

10

Flat Washer M6, Stainless

234062600

$0.77

11

Hex. Flange Screw K40 X 25

241142560

$2.64

12

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

13

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

14

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

15

Black, Cap

277000203

$9.39

16

Ball Joint

277000775

$51.99

17

Ball Joint

277001180

$35.99

18

Steering Cable

277001602

$285.99

20

Steering Support Pivot

277001605

$20.99

21

Gauge Support

277001953

$61.99

22

Gauge Support Cover

277001613

$28.99

23

LOCK - Call your local BRP dealership

277001616

$18.99

25

Housing Cover RH

277001625

$19.99

25

Housing Cover LH

277001626

$19.99

25

Housing Cover LH

277001860

$22.49

26

Gauge Trim, Black

277001630

$55.99

27

Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach

277001904

$57.99

28

Pivot

277001652

$15.99

29

Wear Ring

277001653

$12.17

30

Spacer

277001654

$15.99

31

Thrust Support Ass'y

277001655

$28.99

32

Handle Ass'y | Includes 780 to 780c

277001658

$132.49

33

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

34

Wear Ring

277002318

$15.99

35

Support Ass'y | Includes 460 to 460b

277002179

$22.49

37

Insert Grip Handle

277001863

$8.83

38

Red, Knob Switch

277001887

$9.69

38

Grey Knob Switch

277001888

$11.49

39

Handlebar Foam

277001921

$91.99

40

Steering Support | Includes 710 to 710b

277001942

$114.99

41

Throttle Handle

277001944

$38.99

42

Reverse Handle

277001945

$43.99

43

Deep Black, RH Handle Grip

277001946

$20.99

43

Deep Black, LH Handle Grip

277001958

$20.99

48

Rubber Bumper

293830005

$8.09

49

Rubber Washer

293830063

$1.90

50

Bushing

293900091

$4.52

51

Steering Cover | IBR

277001969

$68.99

52

Half Ring

277001527

$10.37

53

Wiper Rod

277001582

$11.11

54

End Piece

277001583

$14.49

55

Steering Column

277001963

$381.49
