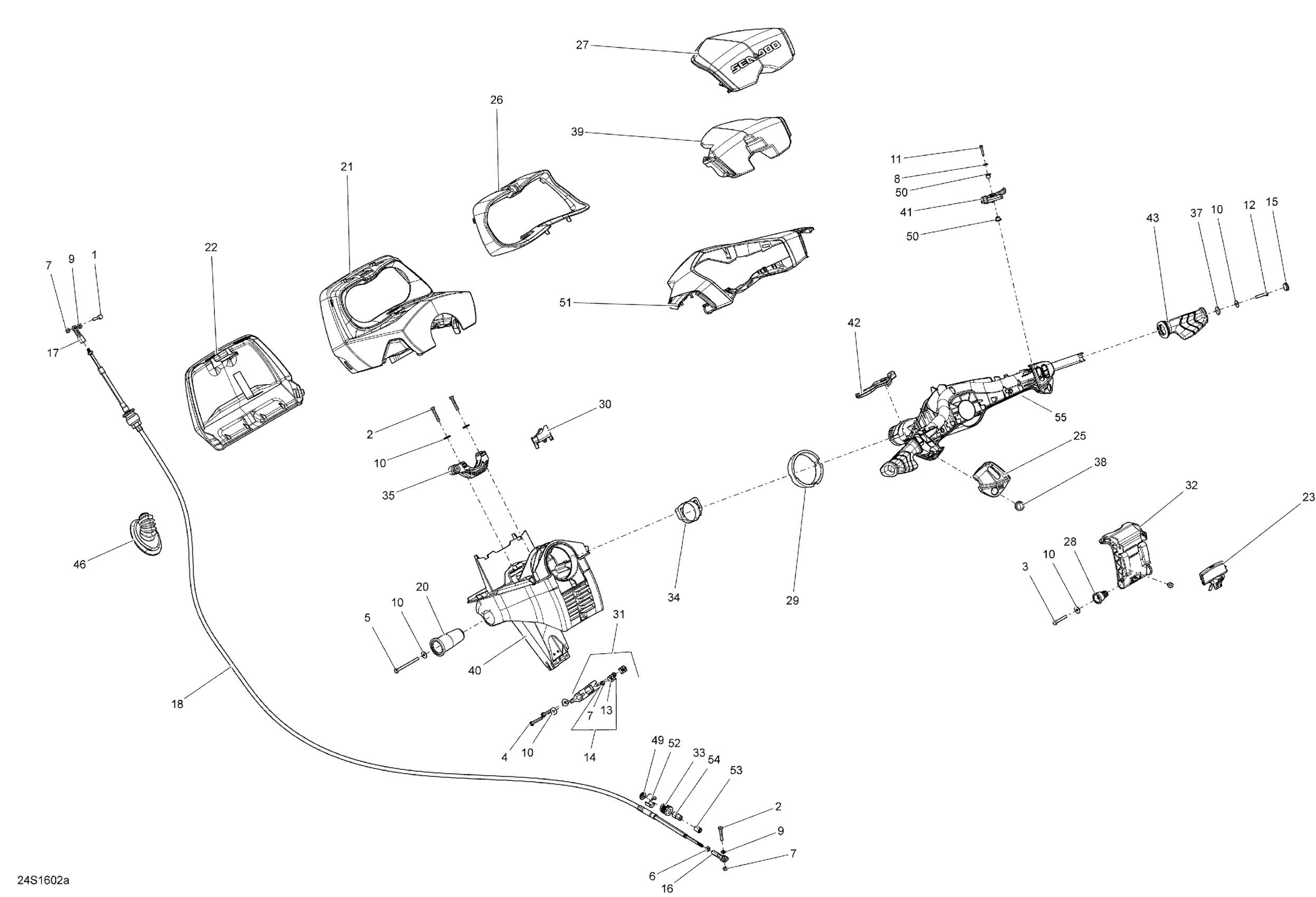

Sea-doo GTX, 2016 Steering - With Suspension Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.73

2

Hex. Screw M6 X 35

207063560

$2.12

2

Hex. Screw M6 X 35

207163560

$1.34

3

Hex. Screw M6 X 40

207064060

$1.61

4

Hex. Screw M6 X 50

207165060

$0.87

5

Hex Screw M6 X 80

207168060

$6.36

6

Hex. Nut 1/4"-28

211100056

$0.64

7

Elastic Stop Nut M6, Brass

232561200

$4.03

8

Flat Washer 4 mm, Stainless

234042600

$1.06

9

Stainless Flat Washer M6

234061600

$0.28

10

Flat Washer M6, Stainless

234062600

$0.73

11

Hex. Flange Screw K40 X 25

241142560

$2.49

12

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

13

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

14

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

15

Black, Cap

277000203

$8.58

16

Ball Joint

277000775

$46.24

17

Ball Joint

277001180

$32.06

18

Steering Cable

277001602

$262.66

20

Steering Support Pivot

277001605

$17.13

21

Gauge Support

277001953

$55.19

22

Gauge Support Cover

277001613

$25.34

23

LOCK - Call your local BRP dealership

277001616

$15.64

25

Housing Cover RH

277001625

$17.88

25

Housing Cover LH

277001626

$17.88

25

Housing Cover LH

277001860

$20.12

26

Gauge Trim, Black

277001630

$49.97

27

Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach

277001904

$51.46

28

Pivot

277001652

$14.27

29

Wear Ring

277001653

$11.18

30

Spacer

277001654

$13.09

31

Thrust Support Ass'y

277001655

$26.09

32

Handle Ass'y | Includes 780 to 780c

277001658

$123.85

33

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

34

Wear Ring

277002318

$14.27

35

Support Ass'y | Includes 460 to 460b

277002179

$20.12

37

Insert Grip Handle

277001863

$8.83

38

Red, Knob Switch

277001887

$8.66

38

Grey Knob Switch

277001888

$10.33

39

Handlebar Foam

277001921

$82.06

40

Steering Support | Includes 710 to 710b

277001942

$103.70

41

Throttle Handle

277001944

$35.04

42

Reverse Handle

277001945

$39.52

43

Deep Black, RH Handle Grip

277001946

$17.88

43

Deep Black, LH Handle Grip

277001958

$17.88

46

Grommet | Model with Suspension

293720083

$19.37

49

Rubber Washer

293830063

$1.73

50

Bushing

293900091

$3.84

51

Steering Cover | IBR

277001969

$61.16

52

Half Ring

277001527

$9.58

54

End Piece

277001583

$12.79

55

Steering Column

277001963

$351.46
