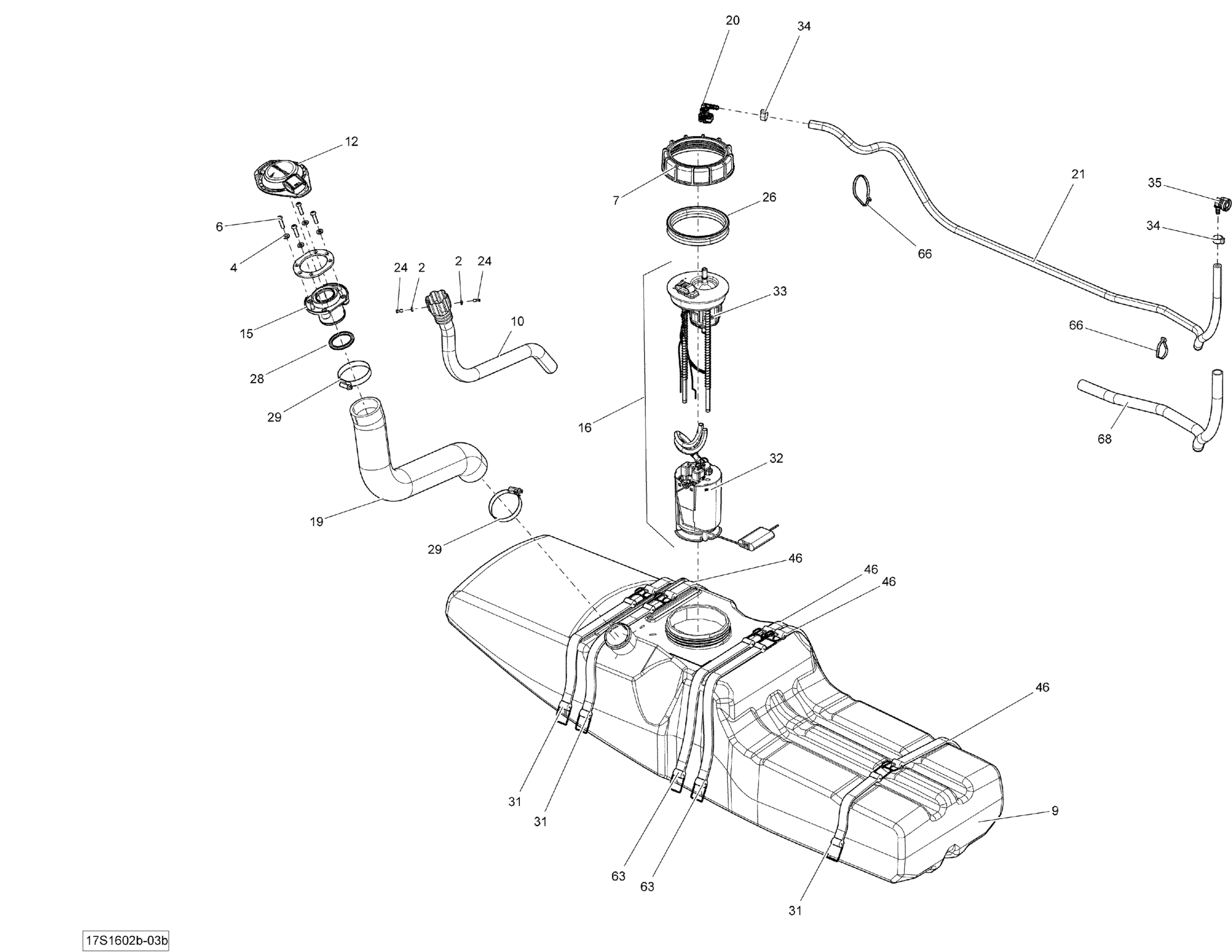

Sea-doo GTX, 2016 Fuel System - With Suspension Diagram

#

Description
Price

2

Flat Washer M3, Stainless

234032600

$0.55

4

Stainless Flat Washer M6

234061600

$0.33

6

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

7

Special Nut M130

250100062

$21.99

9

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 10 to 10a

275500783

Unavailable

10

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

12

Fuel Cap Ass'y

275500832

$69.99

15

Fuel Filler Neck

275500848

$39.49

16

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$425.99

19

Hose

275500919

$90.99

20

Quick Disconnect

275500921

$16.49

21

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

24

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

26

Gasket

293250173

$18.49

28

X-Ring

293300139

$23.99

29

Norma Clamp

293650081

$12.18

31

Fuel Tank Strap

293850087

$19.99

32

Sensor Lever

275500780

$224.99

33

Fuel Filter

270600113

$33.99

34

Crimp Clamp

293650053

$3.09

35

Elbow Fitting 90°

293710105

$14.22

46

Fuel Tank Strap

293850094

$22.49

63

Fuel Tank Strap

293850095

$19.99

66

Tie-Rap 180 mm

414115200

$0.11

66

Tie Wrap 368 mm

293750008

$1.04

68

Tubing 16 Mm 1000Mm Long

219704408

$7.49
