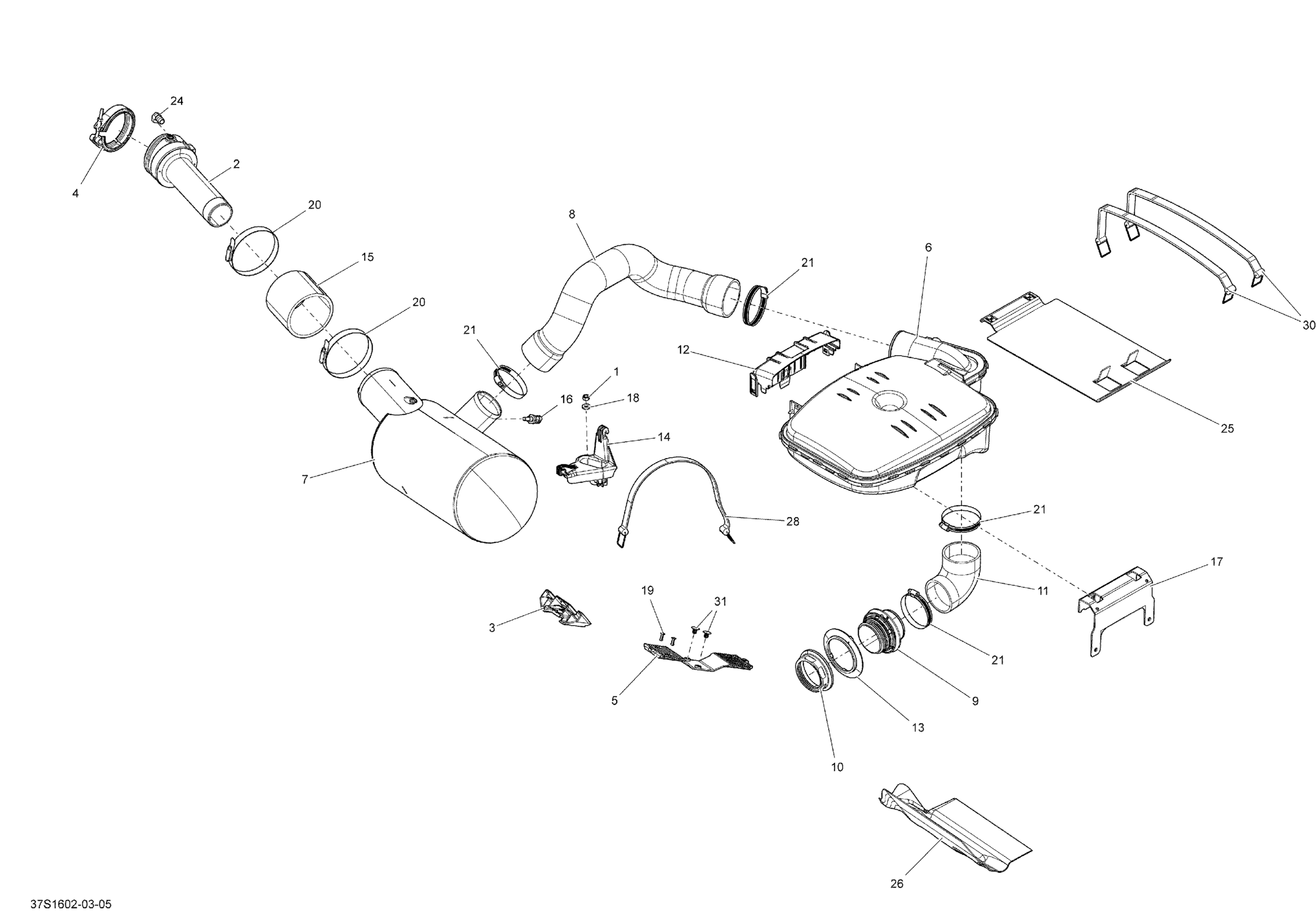

Sea-doo GTX, 2016 Exhaust System - Without suspension, Engine 300 Diagram

#

Description
Price

1

Hex. Elastic Nut M8 Brass

232581200

$1.48

2

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

Unavailable

3

Stopper

274001721

$16.39

4

Exhaust Clamp

274001417

$52.21

5

Exhaust Muffler Support This part replaces 274001357.

274001479

$15.64

6

Resonator

274001722

$145.49

7

Muffler

274001517

$492.51

8

Exhaust Hose | Model GTX LTD 300 This part replaces 274001518.

274001715

$74.60

9

Exhaust Fitting

274001659

$33.55

10

Nut-77mm

274001541

$16.39

11

Exhaust Hose

274001542

$75.34

12

COVER - Call your local BRP dealership | Model GTX LTD 300

274001583

Unavailable

13

Washer

274001587

$13.24

14

Support

274001609

$12.13

15

Hose

274001610

$21.61

16

Temperature Sensor

278002895

$36.54

17

Bracket

292001831

$28.33

18

Flat Washer M8.5 x 18

293050001

$1.48

19

Pop Rivet 3/16"

293150043

$1.85

20

Gear Clamp This part replaces 293650281.

293650202

$14.61

21

Tridon Gear Clamp

293650244

$8.28

24

Elbow Fitting 90° | Without Catalyst

293700023

$17.13

25

Rubber Pad

293830173

$13.06

26

Rubber Pad

293830182

$24.60

28

Strap

293850124

$17.13

30

Strap

293850120

$17.13

31

Dart

414939500

$0.99
